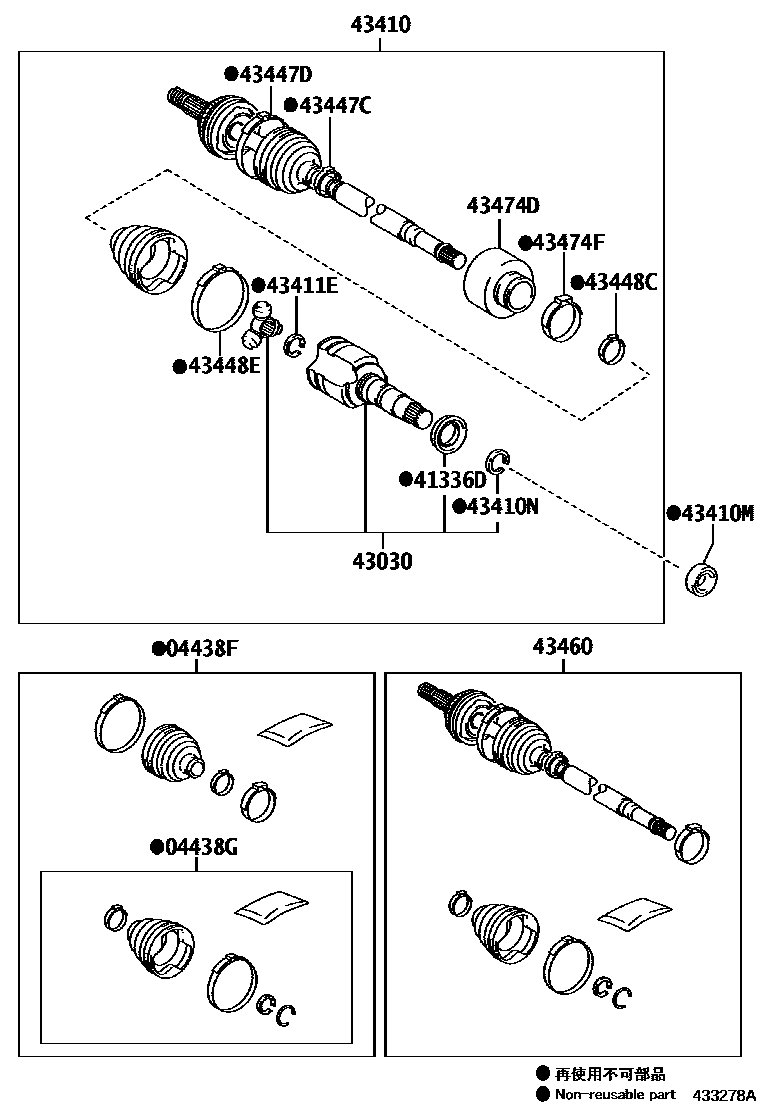

FRONT DRIVE SHAFT

0001 1RH 0003 1RH 0004 1RH 0005 1LH 0007 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D300iNLP130¥17,800201407-201812

main04427-0D310iKSP130..3D..G201407-201604

main04427-0D320iNSP130..CVT..N;NSP130..5D..CVT..(G,S)201407-201703

main04427-0D380iNSP130..6F..(N,R);NSP130..5D..6F..(G,S)201407-202006

main04427-0D400iKSP130201604-202006

main04427-0D470iNSP131..CVT201703-201809

main04427-0D474iNSP131..CVT201809-202006

main04427-0D480iNHP130201703-201809

main04427-0D483iNHP130201809-202006

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0D050iKSP130..LHD201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main04437-0D050iKSP130,NSP130..3D..(G,S)201407-201703

main04437-0D050iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

main04437-0D050iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main04437-0D220iNLP130¥5,500201407-201812

main04437-0D310iNHP130201703-202006

main04437-0H020iKSP130201604-202006

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05140iNHP130;NLP130..N,R;NLP130..5D..(G,S)¥380201407-202006

main41336-0H010iKSP130,NSP130..N,R;KSP130,NSP130..5D..(G,S)201407-202006

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0D020iNLP130¥22,000201407-201812

main43403-0D061iKSP130,NSP130..3D..(G,S)201407-201703

main43403-0D061iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main43403-0D061iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

main43403-0D061iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main43403-0D170iNHP130201407-202006

main43403-0H020iKSP130201604-202006

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D292iNSP130..CVT..N;NSP130..5D..CVT..(G,S)201407-201703

main43410-0D331iNLP130¥66,600201407-201812

main43410-0D341iKSP130..3D..G201407-201604

main43410-0D401iNHP130201407-201703

main43410-0D510iNSP130..6F..(N,R);NSP130..5D..6F..(G,S)201407-202006

main43410-0D650iKSP130201604-202006

main43410-0D660iNHP130201703-202006

main43410-0D670iNSP131..CVT201703-202006

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34041iNSP131..6F¥350201407-201910

sub90311-34054¥350

main90311-34046iNSP131..CVT¥400201703-201808

sub90311-34050¥400

main90311-34047iNSP130..CVT¥350201407-201703

main90311-34050iNSP131..CVT¥400201808-202006

main90311-34054iNSP131..6F¥350201910-202006

main90311-35065iNHP130,NLP130¥270201407-202006

main90311-W0015iKSP130..LHD..3D;KSP130..LHD..5D..(N,R)¥350201407-201703

*362

sub90311-W0025

main90311-W0015iKSP130..LHD..3D;KSP130..LHD..5D..(N,R)¥350201407-201703

WITH(STOP & START SYSTEM)

sub90311-W0025

main90311-W0015iKSP130¥350201703-201908

sub90311-W0025

main90311-W0025iKSP130201908-202006

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0H040iKSP130201604-202006

main90080-52055iNHP130,NLP130¥90201407-202006

main90080-52056iKSP130..LHD¥100201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main90080-52056iKSP130,NSP130..3D..(G,S)¥100201407-201703

main90080-52056iNSP131¥100201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main90080-52056iNSP131¥100201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0D090iKSP130..LHD201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main43425-0D090iKSP130201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

main43425-0D090iKSP130..LHD201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main43425-0D090iKSP130,NSP130..3D..(G,S)201407-201703

main43425-0H010iKSP130201604-202006

main90080-52093iNLP130..3D..(G,S)¥120201407-202006

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D260iNHP130;NLP130..N,R;NSP130..CVT..N;NLP130..5D..(G,S);NSP130..5D..CVT..(G,S)¥330201407-201812

main42345-0D440iKSP130,NSP130..MTM..(N,R);KSP130,NSP130..5D..MTM..(G,S)201407-202006

main42345-0D630iNHP130,NSP131..CVT201809-202006

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0D250iNLP130..3D..(G,S);NSP130..3D..CVT..(G,S)¥570201407-201812

main42345-0D430iKSP130,NSP130..MTM..(N,R);KSP130,NSP130..5D..MTM..(G,S)201407-202006

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02240iNHP130,NLP130¥260201407-202006

main42345-0D210iKSP130..N,R;KSP130..5D..G201407-201703

main42345-0D210iKSP130..LHD201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

main42345-0D210iKSP130..LHD201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main42345-0D210iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main42345-0H020iKSP130201604-202006

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0D200iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITH(HIGHT UP)

main42345-0D200iKSP130,NSP130..3D..(G,S)201407-201703

main42345-0D200iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(HIGHT UP)

main42345-0D200iNSP131201703-202006

ROUGH ROAD AREA SPEC-WITHOUT(ROAD INTERFER)

main42345-0D850iNHP130,NLP130¥360201407-202006

main42345-0H011iKSP130201604-202006

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09U60iKSP130..3D..G201407-201604

main43460-09V00iNLP130..N,R;NLP130..5D..(G,S)201407-201812

main43460-09V30iNSP130..3D..CVT..(G,S)201407-201703

main43460-09V60iNHP130201407-201703

main43460-09Y11iNSP131..6F201407-202006

main43460-09Z00iKSP130201604-202006

main43460-09Z30iNSP131..CVT201703-202006

main43460-09Z40iNHP130201703-202006

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0D160iNLP130..3D..(G,S)¥6,200201407-201812

main43474-0D170iKSP130..N,R;KSP130..5D..G201407-202006

main43474-0D190iNSP131..6F201703-202006

NO.1:REFER ILLUST.

main43474-0D190iNSP130..N,R;NSP130..5D..(G,S)201407-201703

main43474-0D220iNHP130201407-201703

main43474-0D370iNHP130201703-202006

main43474-0D380iNSP131..CVT201703-202006

NO.2:REFER ILLUST.

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0D720iNSP131..CVT201407-202006

main42345-0D770iNLP130¥190201407-202006

main42345-0D830iKSP130..3D..G201407-202006

15 parts on this diagram · 5 diagrams in section
