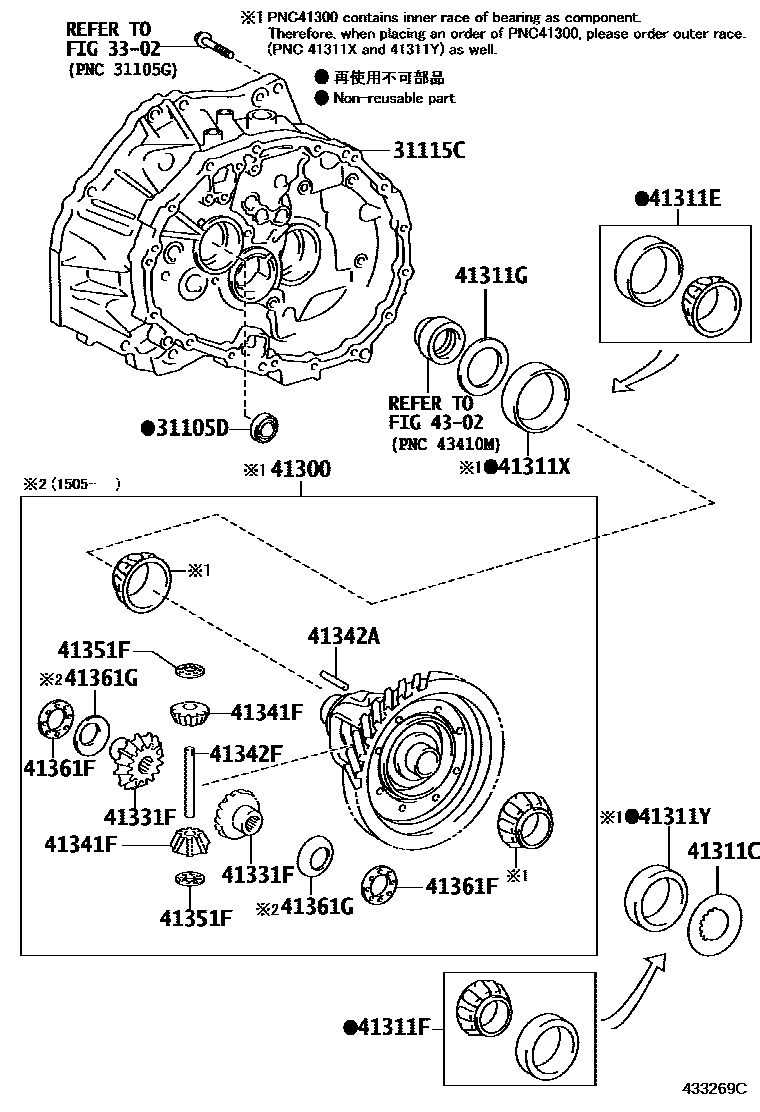

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
*362
WITH(STOP & START SYSTEM)
3302
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311CASE, FRONT DIFFERENTIAL
sub41311-0H902
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.10,MARK 01
T=1.10,MARK 01,*362
T=1.10,MARK 01,WITH(STOP & START SYSTEM)
T=1.15,MARK 02,WITH(STOP & START SYSTEM)
T=1.15,MARK 02,*362
T=1.15,MARK 02
T=1.20,MARK 03,*362
T=1.20,MARK 03,WITH(STOP & START SYSTEM)
T=1.20,MARK 03
T=1.25,MARK 04,WITH(STOP & START SYSTEM)
T=1.25,MARK 04,*362
T=1.25,MARK 04
T=1.30,MARK 05,*362
T=1.30,MARK 05,WITH(STOP & START SYSTEM)
T=1.30,MARK 05
T=1.35,MARK 06
T=1.35,MARK 06,WITH(STOP & START SYSTEM)
T=1.35,MARK 06,*362
T=1.40,MARK 07,WITH(STOP & START SYSTEM)
T=1.40,MARK 07,*362
T=1.40,MARK 07
T=1.45,MARK 08
T=1.45,MARK 08,*362
T=1.45,MARK 08,WITH(STOP & START SYSTEM)
T=1.50,MARK 09,*362
T=1.50,MARK 09
T=1.50,MARK 09,WITH(STOP & START SYSTEM)
T=1.55,MARK 10
T=1.55,MARK 10,WITH(STOP & START SYSTEM)
T=1.55,MARK 10,*362
T=1.60,MARK 11,*362
T=1.60,MARK 11,WITH(STOP & START SYSTEM)
T=1.60,MARK 11
T=1.65,MARK 12,*362
T=1.65,MARK 12,WITH(STOP & START SYSTEM)
T=1.65,MARK 12
T=1.70,MARK 13,WITH(STOP & START SYSTEM)
T=1.70,MARK 13,*362
T=1.70,MARK 13
T=1.75,MARK 14,*362
T=1.75,MARK 14,WITH(STOP & START SYSTEM)
T=1.75,MARK 14
T=1.80,MARK 15
T=1.80,MARK 15,*362
T=1.80,MARK 15,WITH(STOP & START SYSTEM)
T=1.85,MARK 16
T=1.85,MARK 16,WITH(STOP & START SYSTEM)
T=1.85,MARK 16,*362
T=1.90,MARK 17,WITH(STOP & START SYSTEM)
T=1.90,MARK 17,*362
T=1.90,MARK 17
T=1.95,MARK 18
T=1.95,MARK 18,WITH(STOP & START SYSTEM)
T=1.95,MARK 18,*362
T=2.00,MARK 19,WITH(STOP & START SYSTEM)
T=2.00,MARK 19
T=2.00,MARK 19,*362
T=2.100, MARK 10
T=2.125, MARK 11
T=2.150, MARK 12
T=2.175, MARK 13
T=2.200, MARK 14
T=2.225, MARK 15
T=2.250, MARK 16
T=2.275, MARK 17
T=2.300, MARK 18
T=2.325, MARK 19
T=2.350, MARK 20
T=2.375, MARK 21
T=2.400, MARK 22
T=2.425, MARK 23
T=2.450, MARK 24
T=2.475, MARK 25
T=2.500, MARK 26
T=2.525, MARK 27
T=2.550, MARK 28
T=2.575, MARK 29
T=2.600, MARK 30
T=2.625, MARK 31
T=2.650, MARK 32
T=2.675, MARK 33
T=2.700, MARK 34
T=2.725, MARK 35
T=2.750, MARK 36
T=2.775, MARK 37
T=2.800, MARK 38
T=2.825, MARK 39
T=2.850, MARK 40
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
*362
WITH(STOP & START SYSTEM)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
*362
WITH(STOP & START SYSTEM)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.1
41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)
41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
WITH(STOP & START SYSTEM)
*362
41341FPINION, FRONT DIFFERENTIAL
WITH(STOP & START SYSTEM)
*362
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
WITH(STOP & START SYSTEM)
*362
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=1.30,MARK 12
T=1.40,MARK 13
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.25,MARK 17
T=1.35,MARK 18
T=0.90,MARK 19
T=0.50
T=0.55
T=0.60
T=0.65
T=0.70
T=0.75
T=0.80
T=0.85
T=0.90
T=0.95
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
19 parts on this diagram · 2 diagrams in section
