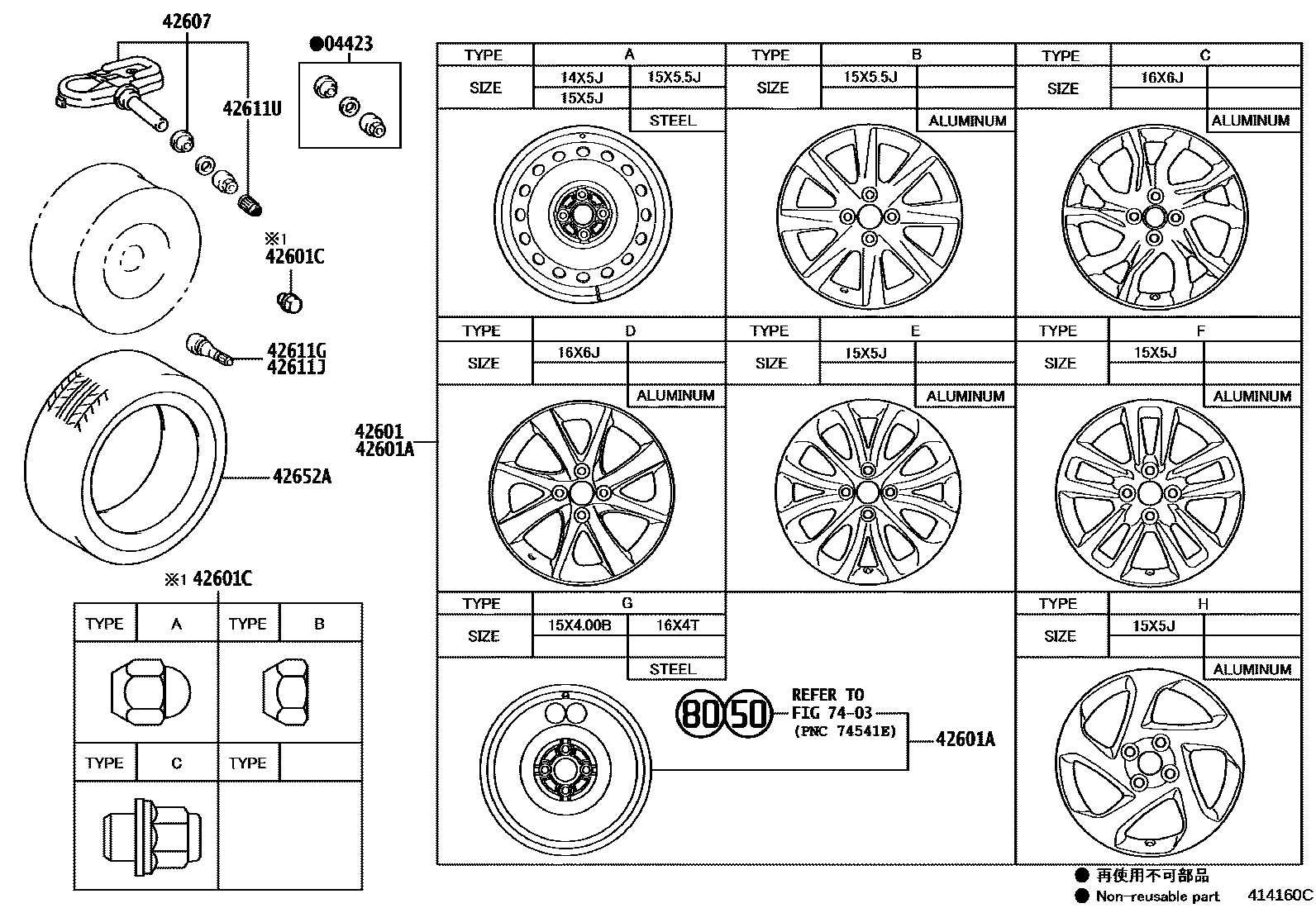

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
15X5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
16X6J, #,TYPE D:REFER ILLUST.
16X6J, #,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK,TYPE C:REFER ILLUST.
16X6J, #,TYPE C:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM,TYPE J:REFER ILLUST.
14X5J, #,TIRE & DISC WHEEL-175/70R14 5J STEEL BLACK,TYPE A:REFER ILLUST.
14X5J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&TIRE & DISC WHEEL-175/65R14, 5J STEEL BLACK,TYPE A:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM,TYPE N:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALUMINUM,TYPE E:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALUMINUM,TYPE E:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15 5J ALUMINUM,TYPE H:REFER ILLUST.
15X5.5J, #,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM,TYPE E:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM,TYPE I:REFER ILLUST.
15X5J, #,TIRE & DISC WHEEL-175/65R15, 5J ALUMI,TYPE N:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM,TYPE J:REFER ILLUST.
17X7J, #,GR SPORT,TYPE K:REFER ILLUST.
15X5J,TIRE & DISC WHEEL-175/65R15 5J ALUMINUM(ACCESSORY PART),TYPE F:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X5.5J, #,TYPE A:REFER ILLUST.
15X5.5J, #,TYPE B:REFER ILLUST.
15X4.00B,REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL & ID PLATE&SOUTH AFRICA SPEC&TIRE & DISC WHEEL-175/65R14, 5J STEEL BLACK&SPARE TIRE-T125/70D15,TYPE G:R
14X5J, #,TIRE & DISC WHEEL-175/70R14 5J STEEL BLACK ROUGH ROAD SPEC&SPARE TIRE-GROUND TIRE(STEEL),TYPE A:REFER ILLUST.
16X4T,SPARE TIRE-T125/70D16,TYPE G:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-185/60R15, 5.5J STEEL BLACK,TYPE B:REFER ILLUST.
HV ENTRY PACKAGE&TIRE & DISC WHEEL-175/65R15 5J STEEL BLACK W(NUT),TYPE A:REFER ILLUST.
ENTRY PACKAGE&TIRE & DISC WHEEL-185/60R15, 5.5J ALUMI,TYPE C:REFER ILLUST.
TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC,TYPE C:REFER ILLUST.
TIRE & DISC WHEEL-175/65R15 5J ALUMINUM(ACCESSORY PART),TYPE C:REFER ILLUST.
TYPE C:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42652ATIRE (FOR SPARE)
T125/70D16,*D/L,SPARE TIRE-T125/70D16
T125/70D15,*Y/H,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC&SPARE TIRE-T125/7
7403
10 parts on this diagram · 3 diagrams in section
