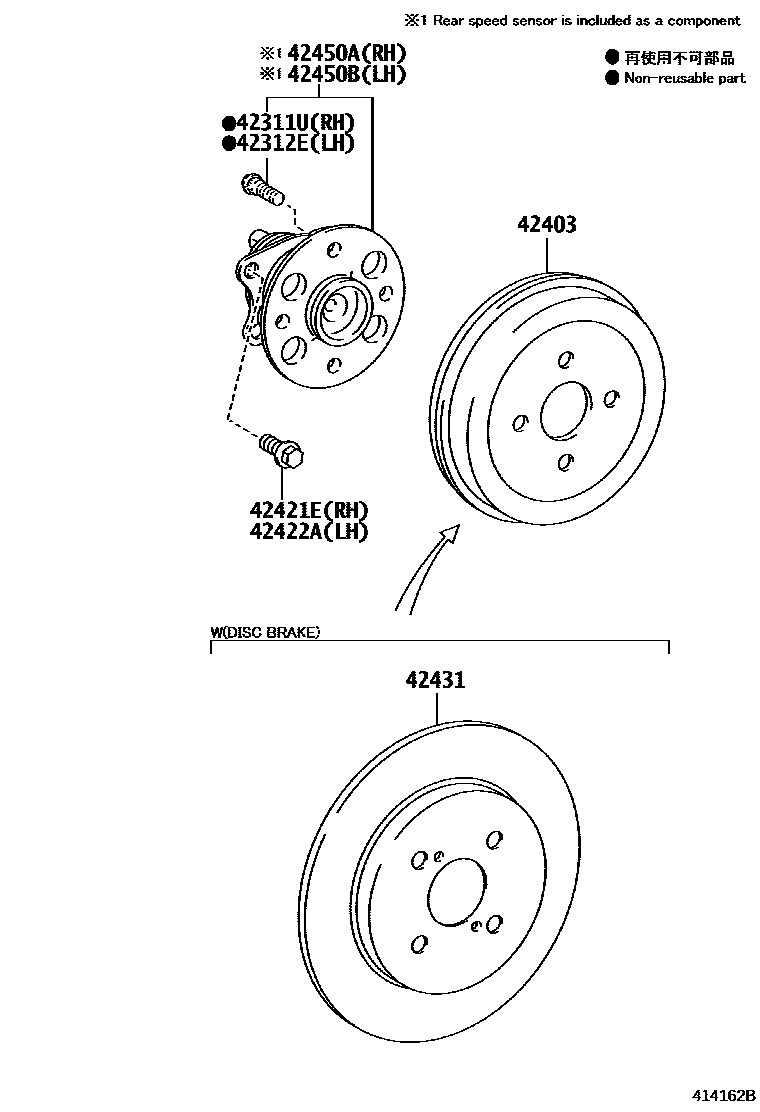

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iKSP130,NLP130,NSP130..3D..(G,S)¥240201407-202006

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iKSP130,NLP130,NSP130..3D..(G,S)¥240201407-202006

42403DRUM SUB-ASSY, REAR BRAKE

main42431-0D030iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iKSP130,NLP130,NSP130..3D..(G,S)¥160201407-202006

(J)

main90105-W0164iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥160201407-202006

(J)

main90105-W0164iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

(L)

42431DISC, REAR

main42431-0D060iNHP130¥16,100201407-202006

REAR WHEEL BRAKE-DISC

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D050iKSP130,NLP130,NSP130..3D..(G,S)¥23,900201407-201703

sub42450-0D051¥23,900

main42450-0D051iKSP130,NLP130,NSP131¥23,900201703-202006

main42450-0D111iNHP130201407-201703

sub42450-0D112

main42450-0D112iNHP130201703-202006

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D050iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)¥23,900201407-201703

sub42450-0D051¥23,900

main42450-0D051iKSP130,NLP130,NSP131¥23,900201703-202006

main42450-0D111iNHP130201407-201703

sub42450-0D112

main42450-0D112iNHP130201703-202006

8 parts on this diagram · 1 diagram in section
