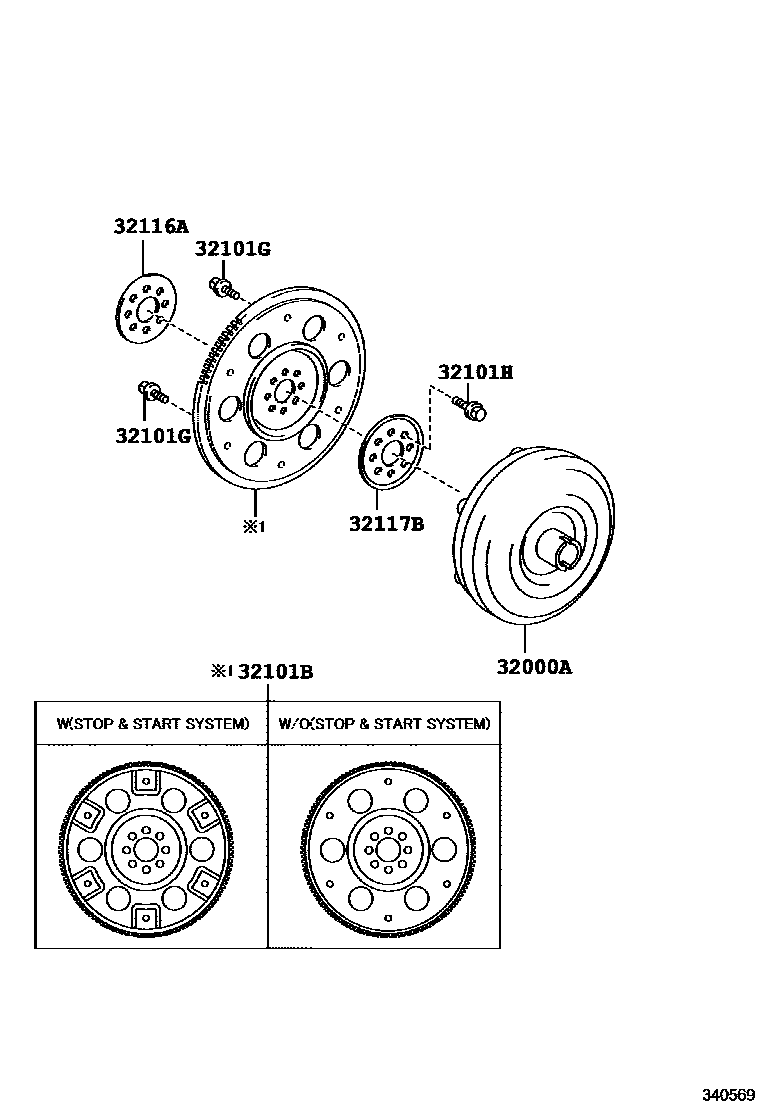

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP130..CVT¥66,700201407-201703

main32000-52200iNSP131..CVT201703-201905

sub32000-52201

main32000-52201iNSP131..CVT201906-202006

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52090iNSP131..CVT¥11,600201703-202006

main32111-52120iNSP130..3D..CVT..(G,S)¥15,400201407-201703

sub32111-52110¥12,800

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP131..CVT¥80201407-202006

*8-1.25PX12-8.4,BLACK

main90119-08498iNSP130..CVT..N;NSP130..5D..CVT..(G,S)¥80201407-202006

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP130..3D..CVT..(G,S)¥130201407-202006

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP130..3D..CVT..(G,S)¥610201407-202006

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP130..3D..CVT..(G,S)¥800201407-202006

6 parts on this diagram · 1 diagram in section
