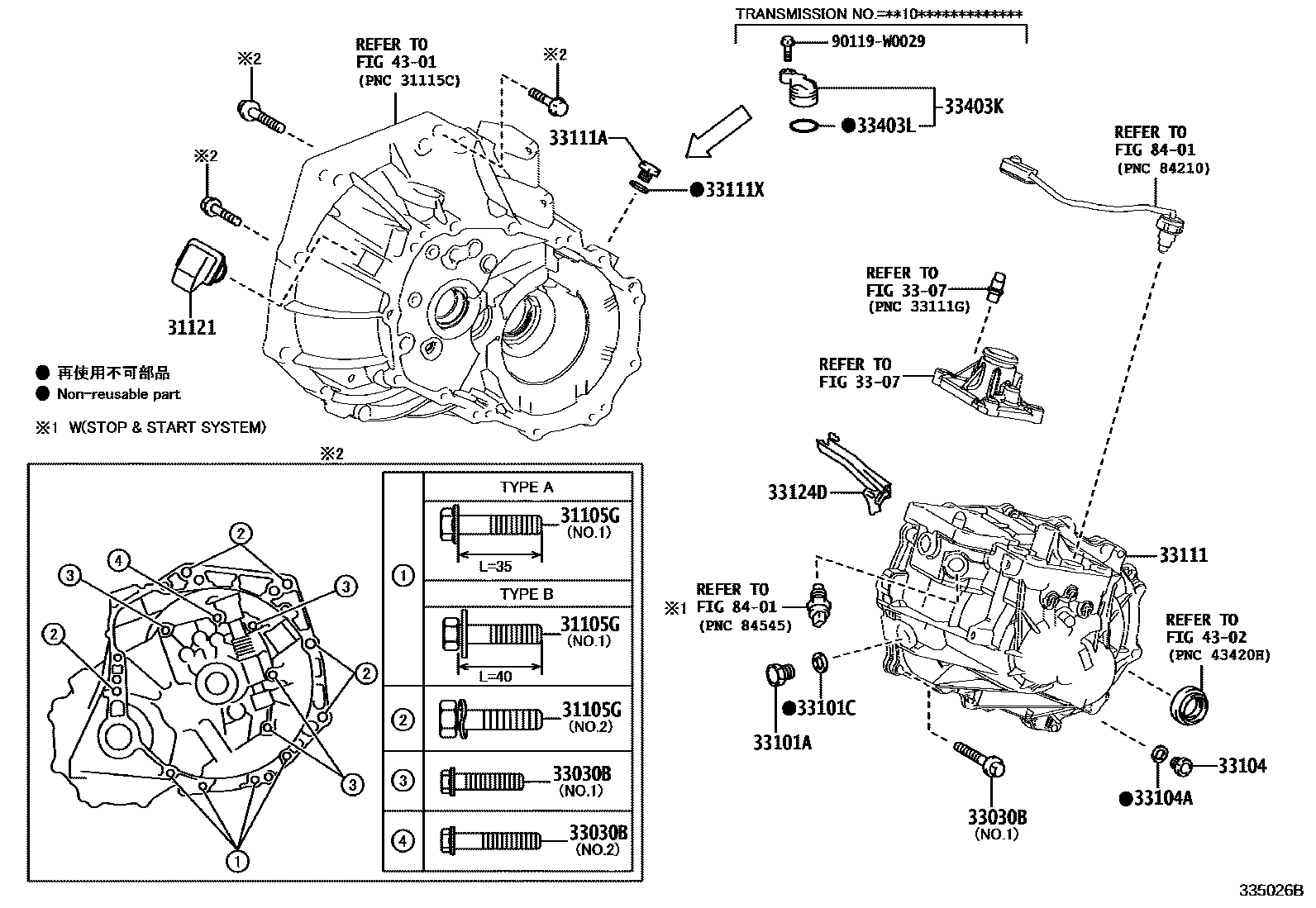

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX80-26,(L),NO.1:SEE ILLUST
*10-1.25PX35-26,NO.1,TYPE A:REF ILL.
*12-1.25PX80-30,(L),NO.1:SEE ILLUST
*12-1.25PX45-30,(L),NO.2:SEE ILLUST
*12-1.25PX45-30,NO.2:REFER ILLUST.
*10-1.25PX45-30,(L),NO.2:SEE ILLUST
*10-1.25PX40-30,NO.1,TYPE B:REF ILL.
*10-1.25PX80-26,(J),NO.1:SEE ILLUST
*12-1.25PX80-30,(J),NO.1:SEE ILLUST
*10-1.25PX45-30,(J),NO.2:SEE ILLUST
*12-1.25PX45-30,(J),NO.2:SEE ILLUST
31121COVER, CLUTCH HOUSING, NO.1
WITH(STOP & START SYSTEM)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX60-30,*362,NO.2:REFER ILL.
*8-1.25PX60-30,WITH(STOP & START SYSTEM),NO.2:REFER ILLUST.
*8-1.25PX60-30,(J),*362,NO.2
*8-1.25PX60-30,(J),NO.2:SEE ILLUST
*8-1.25PX35-30,WITH(STOP & START SYSTEM),NO.1:REFER ILLUST.
*8-1.25PX40-22,(L)
*8-1.25PX35-30,NO.1:REFER ILLUST.
*8-1.25PX35-30,(L),*362,NO.1
*8-1.25PX35-30,(L),NO.1:SEE ILLUST
*8-1.25PX60-30,(L),*362,NO.2
*8-1.25PX60-30,(L),NO.2:SEE ILLUST
*8-1.25PX40-22,(J)
*8-1.25PX40-22
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
WITH(STOP & START SYSTEM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
WITH(STOP & START SYSTEM)
33111APLUG, MANUAL TRANSMISSION CASE
WITH(STOP & START SYSTEM)
*362
33111XGASKET, TRANSMISSION CASE PLUG
WITH(STOP & START SYSTEM)
*362
33124DPIPE, OIL RECEIVER, NO.2(MTM)
WITH(STOP & START SYSTEM)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
*206
33403LRING, O
*206
4301
4302
8401
90119W0029
18 parts on this diagram · 3 diagrams in section
