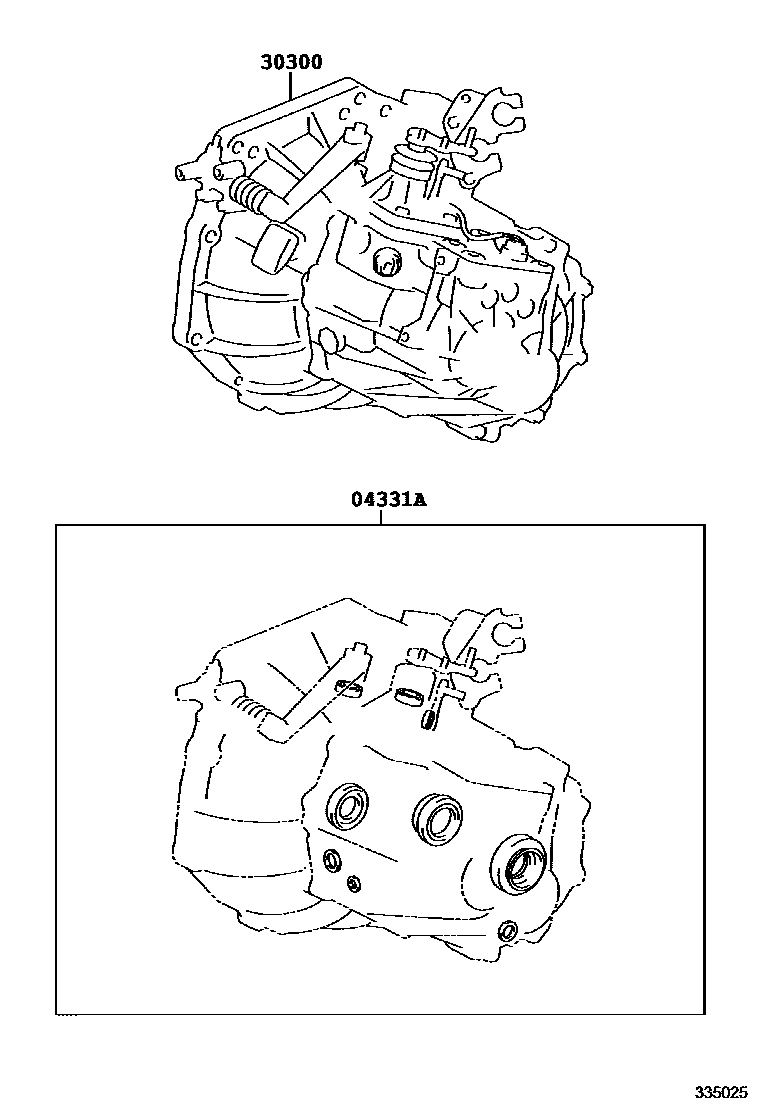

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C551 0002 1EC62,EC65,EC69

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-05230iNSP130..6F201407-201910

sub04331-05231

main04331-05241iNSP131..6F201910-202006

main04331-0D181iKSP130..LHD..3D;KSP130..LHD..5D..(N,R)201407-201703

*362

main04331-0D181iKSP130..LHD..3D;KSP130..LHD..5D..(N,R)201407-201703

WITH(STOP & START SYSTEM)

main04331-0D181iKSP130201703-201908

main04331-0D182iKSP130201908-202006

main04331-0F010iNLP130201407-201612

sub04331-0F011

main04331-0F011iNLP130201612-201812

30300TRANSAXLE ASSY, MANUAL

main30300-0D190iKSP130201407-201703

C551,*362

sub30300-0D410

main30300-0D190iKSP130201703-202006

C551

sub30300-0D410

main30300-0D310iNSP130..6F201407-201504

EC62

sub30300-0D311

main30300-0D311iNSP130..6F201505-201703

EC62

sub30300-0D313

main30300-0D330iNLP130201407-201504

EC65

sub30300-0D331

main30300-0D331iNLP130201805-201812

EC65

main30300-0D380iNLP130201505-201805

EC69

main30300-0D510iNSP131..6F201703-201910

EC62

sub30300-0D513

sub35150-44010

main30300-0D513iNSP131..6F201910-202006

EC62

2 parts on this diagram · 2 diagrams in section
