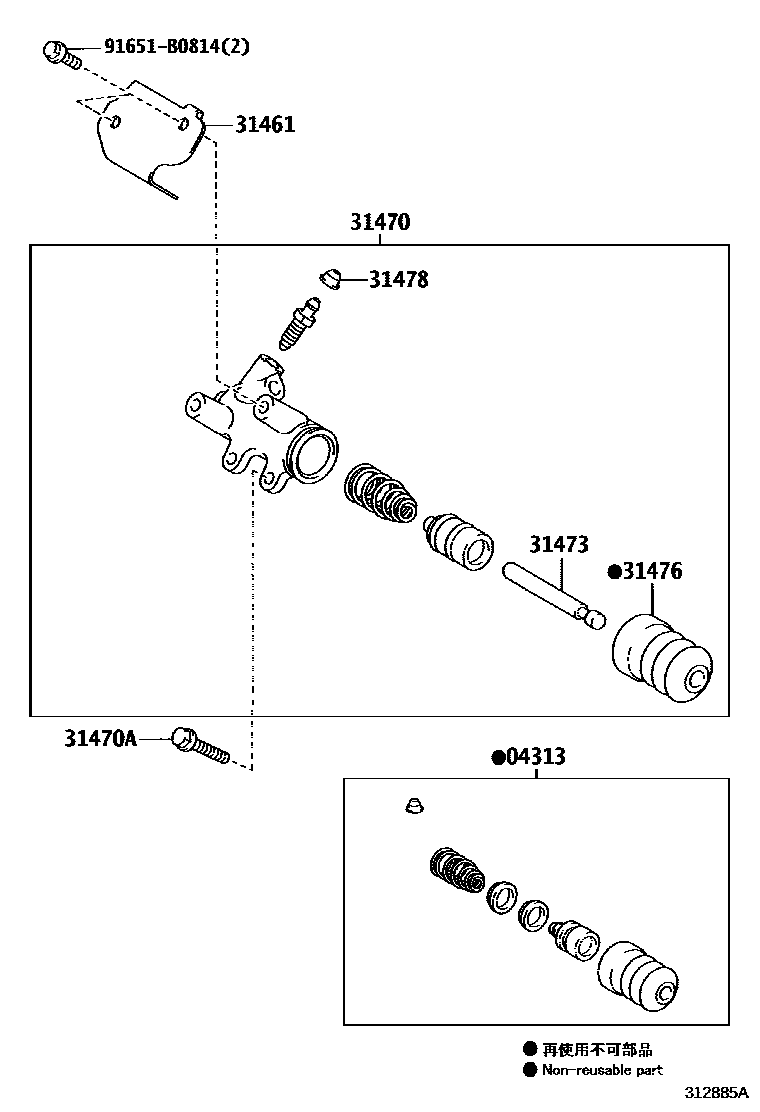

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-52021iKSP130..N,R;KSP130..5D..G201407-202006

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-0D011iKSP130..3D..G201407-202006

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52102iKSP130201407-202006

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-W0028iKSP130201808-202006

*8-1.25PX22-17.1,(L)

main91611-60822iKSP130201407-202006

*8-1.25PX22-17.1

main91611-60822iKSP130201808-202006

*8-1.25PX22-17.1,(J)

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30070iKSP130201407-202006

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKSP130201407-202004

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKSP130,NLP130,NSP130..MTM201407-202006

91651B0814

main91651-B0814

8 parts on this diagram · 2 diagrams in section
