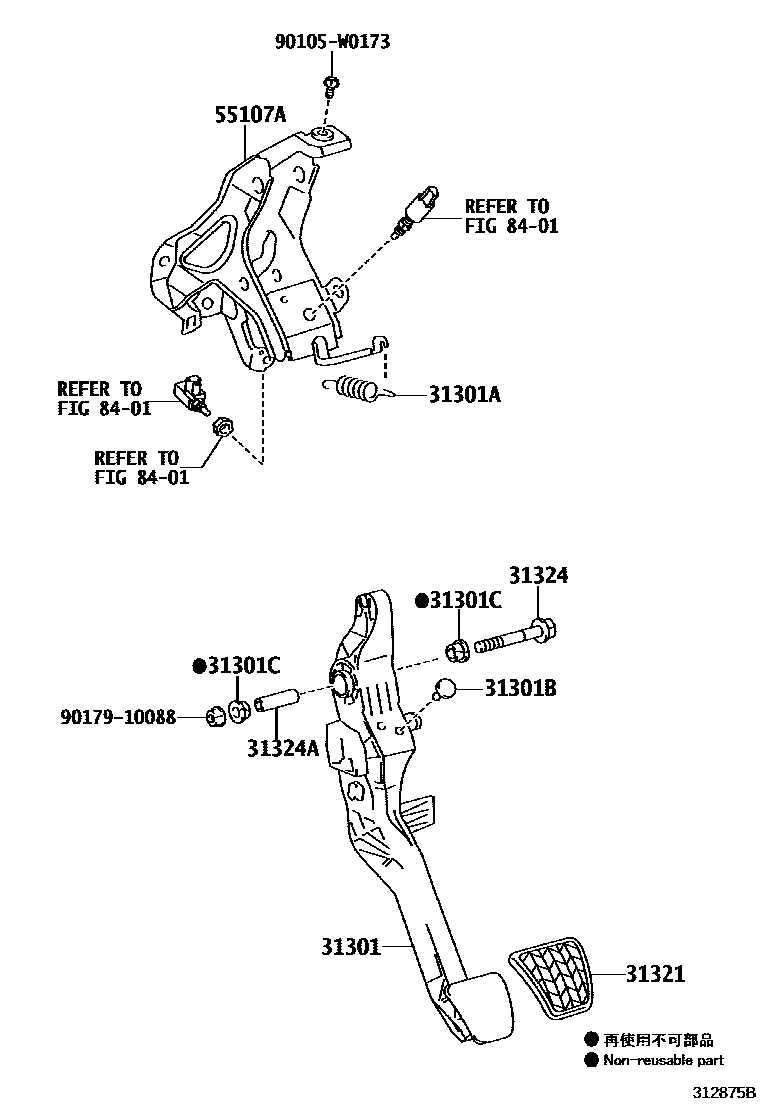

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D160iKSP130,NSP131..RHD..MTM201407-202006

main31301-0D170iNLP130..RHD201407-201804

main31311-0D110iKSP130,NLP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iKSP130,NSP130..LHD..3D..MTM..(G,S)201407-202006

main90507-14055iKSP130,NSP131..RHD..MTM201407-202006

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKSP130,NLP130,NSP130..3D..MTM..(G,S)201407-202006

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iKSP130,NLP130,NSP130..3D..MTM..(G,S)201407-202006

31321PAD, CLUTCH PEDAL

main31321-52010iKSP130,NLP130,NSP130..MTM..(N,R);KSP130,NLP130,NSP130..5D..MTM..(G,S)201407-202006

31324SHAFT, CLUTCH PEDAL

main90105-10444iKSP130,NLP130,NSP131..RHD..MTM201407-202006

main90105-10563iKSP130,NLP130,NSP130..LHD..MTM..(N,R);KSP130,NLP130,NSP130..LHD..5D..MTM..(G,S)201407-202006

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iKSP130,NLP130,NSP130..RHD..3D..MTM..(G,S)201407-202006

main90387-10004iKSP130,NLP130,NSP131..LHD..MTM201407-202006

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D180iKSP130,NSP131..LHD..MTM201407-202006

main55107-0D220iNLP130..RHD..3D..(G,S)201407-201804

main55107-0D230iKSP130,NSP131..RHD..MTM201407-202006

main55107-0D340iNLP130..LHD201407-201812

8401

90105W0173

main90105-W0173

9017910088

main90179-10088

11 parts on this diagram · 10 diagrams in section
