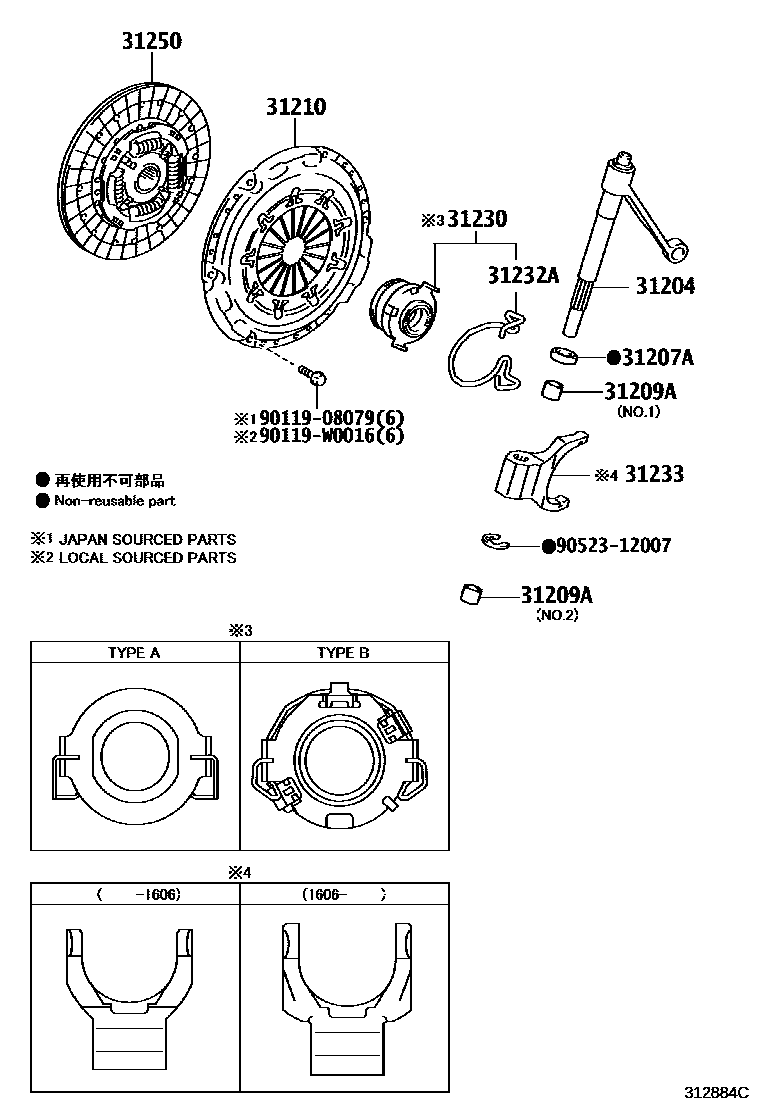

CLUTCH & RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)
WITH(STOP & START SYSTEM)
31209ABUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)
NO.2:REFER ILLUST.
WITH(STOP & START SYSTEM),NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
WITH(STOP & START SYSTEM),NO.1:REFER ILLUST.
31210COVER ASSY, CLUTCH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION,TYPE B:REFER ILLUST.
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
31230BEARING ASSY, CLUTCH RELEASE
WITH(STOP & START SYSTEM),TYPE A:REFER ILLUST.
sub31230-0D020
sub31230-0H020
sub31230-0H030
sub31230-0H040
WITH(STOP & START SYSTEM),TYPE B:REFER ILLUST.
sub31230-0D020
sub31230-0H020
sub31230-0H030
sub31230-0H040
WITH(STOP & START SYSTEM)
31232ACLIP, RELEASE BEARING HUB
WITH(STOP & START SYSTEM),PNC 31230=TYPE B
PNC 31230=TYPE B
sub31232-52042
31233FORK, CLUTCH RELEASE
WITH(STOP & START SYSTEM)
*362
31250DISC ASSY, CLUTCH
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT *WVTA)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&ALGERIA SPEC&EXHAUST EMISSION CONTROL-GENERAL DESTINATION
sub31250-0D241
sub31250-52211
sub31250-52212
9011908079
main90119-08079
90119W0016
main90119-W0016
9052312007
main90523-12007
11 parts on this diagram · 4 diagrams in section
