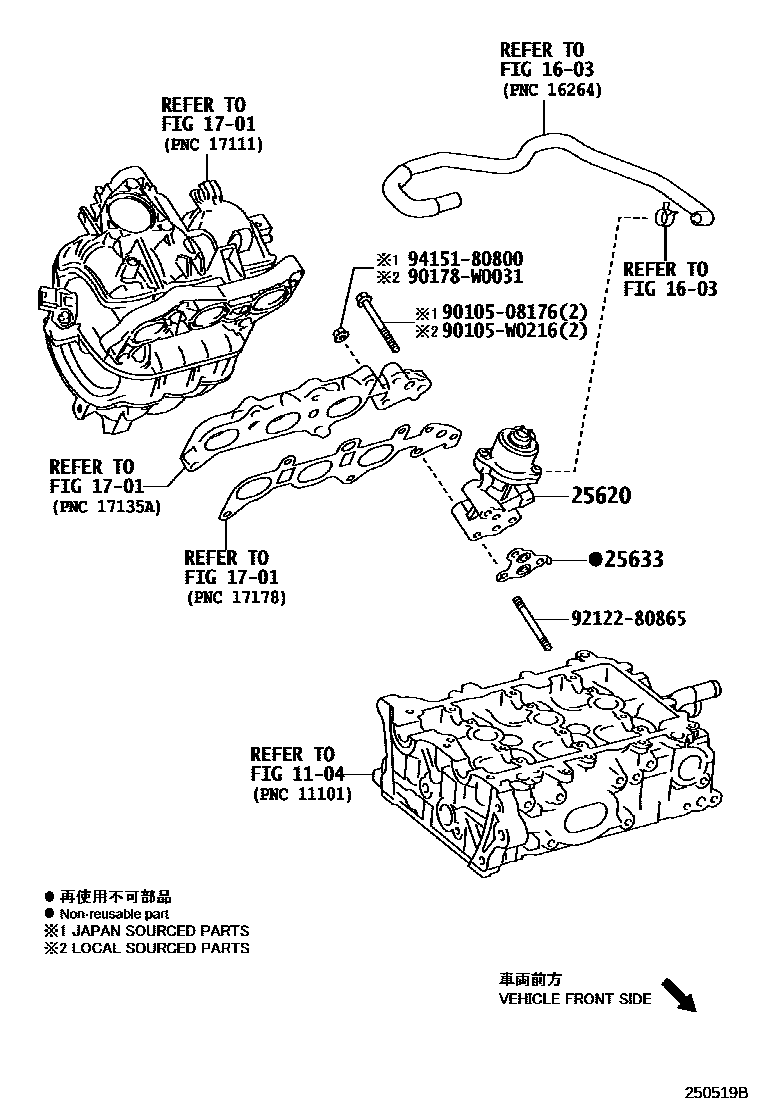

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1104

1603

1701

25620VALVE ASSY, EGR

main25620-21020i1NZFXE..NHP130201407-201606

sub25620-21021

main25620-21021i1NZFXE..NHP130201607-202006

main25620-40030i1KRFE..KSP130201407-201805

main25620-40040i1KRFE..KSP130201805-202006

main25620-47020i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main25620-47030i2NRFKE..NSP131201703-201906

sub25620-47060

main25620-47060i2NRFKE..NSP131201907-202006

25633GASKET, EGR VALVE

main25633-0Q020i1KRFE..KSP130..3D..G201407-201805

main25633-0Q030i1KRFE..KSP130201805-202006

main25633-21010i1NZFXE..NHP130201407-202006

main25633-47010i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main25633-47020i2NRFKE..NSP131201703-202006

9010508176

main90105-08176

90105W0216

main90105-W0216

90178W0031

main90178-W0031

9212280865

main92122-80865

9415180800

main94151-80800

10 parts on this diagram · 8 diagrams in section
