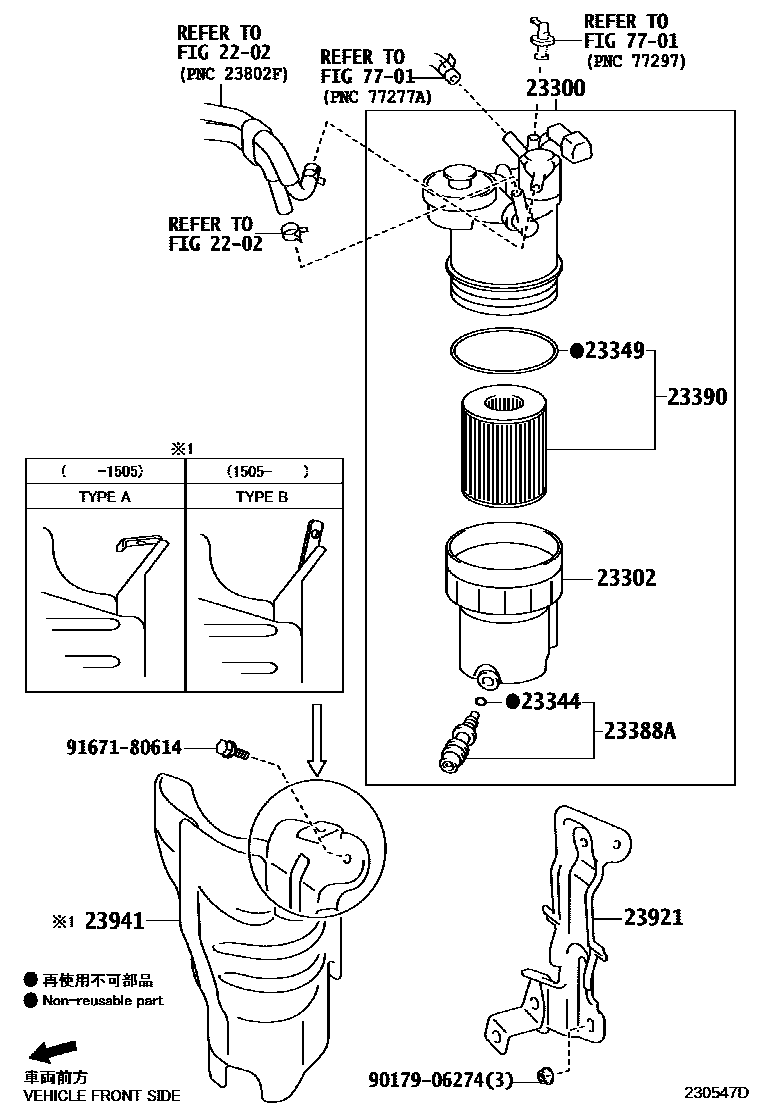

FUEL FILTER

2202

23300FILTER ASSY, FUEL

main23300-0N080i1NDTV..NLP130..3D..(G,S)201505-201812

main23300-0N100i1NDTV..NLP130201407-201505

sub23300-0N080

23302BODY SUB-ASSY, FUEL FILTER, LOWER

main23302-0N100i1NDTV..NLP130..3D..(G,S)201407-201812

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0N100i1NDTV..NLP130..3D..(G,S)201407-201812

23349GASKET, FUEL SEDIMENTOR

main23349-0N010i1NDTV..NLP130..RHD;1NDTV..NLP130..LHD..(G,N,R)201407-201812

23388APLUG, FUEL FILTER DRAIN

main23388-0N100i1NDTV..NLP130..3D..(G,S)201407-201812

23390ELEMENT ASSY, FUEL FILTER

main23390-0N100i1NDTV..NLP130..3D..(G,S)201407-201812

23921SUPPORT, FUEL FILTER

main23921-0N060i1NDTV..NLP130..3D..(G,S)201407-201812

23941PROTECTOR, FUEL FILTER, NO.1

main23941-0N020i1NDTV..NLP130201407-201505

TYPE A:REFER ILLUST.

main23941-0N030i1NDTV..NLP130..3D..(G,S)201505-201703

TYPE B:REFER ILLUST.

main23941-0N030i1NDTV..NLP130..LHD..S201703-201812

7701

9017906274

main90179-06274

9167180614

main91671-80614

12 parts on this diagram · 1 diagram in section
