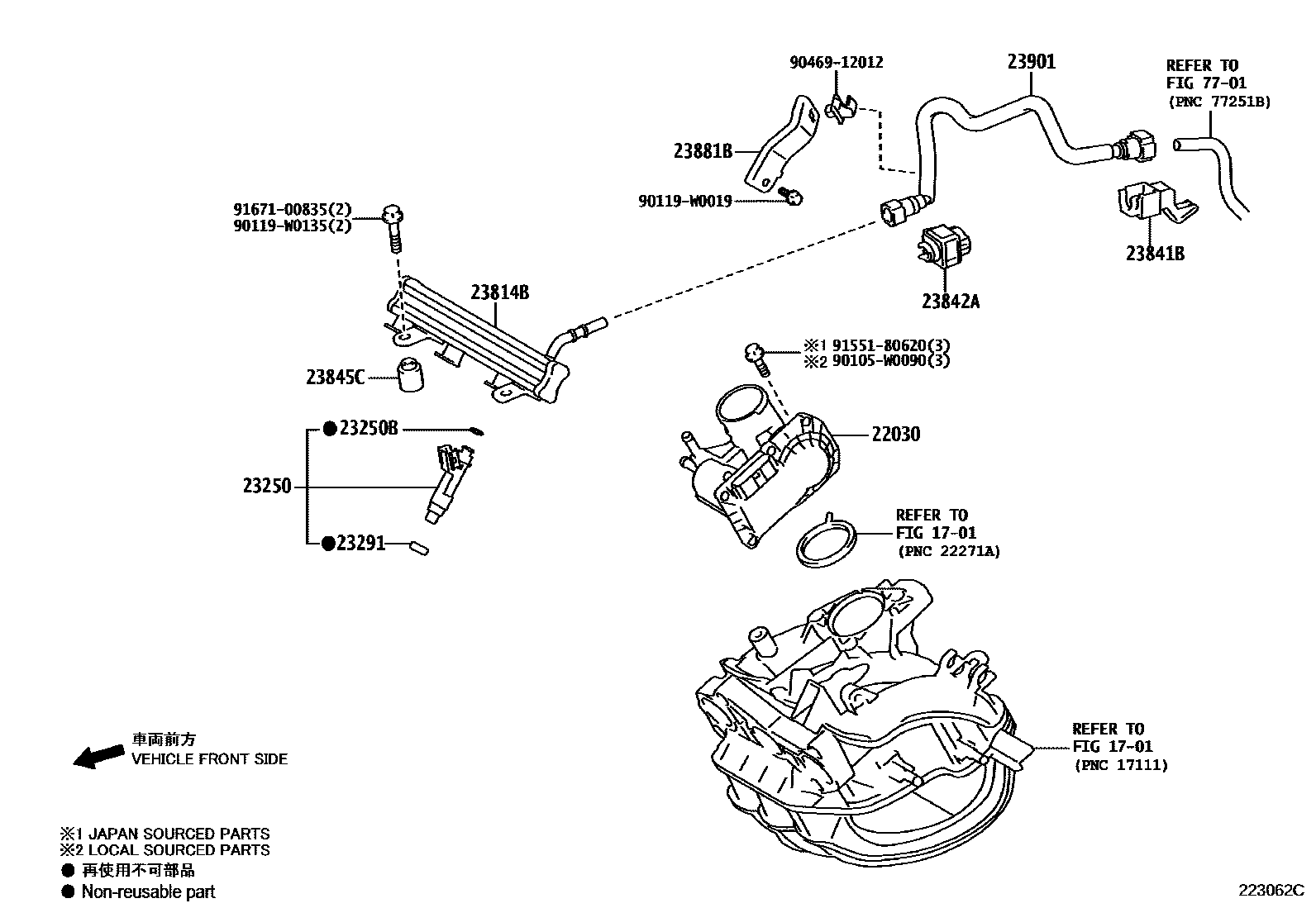

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Q030i1KRFE..KSP130..3D..G201407-201511

main22030-0Q040i1KRFE..KSP130201805-202006

main22030-0Y110i2NRFKE..NSP131201703-202006

main22030-47010i1NRFE..NSP130..3D..(G,S)201407-201511

main22030-47040i1NZFXE..NHP130201703-202006

23250INJECTOR ASSY, FUEL

main23209-09270×3i1KRFE..KSP130201703-201805

main23209-09420×6i1KRFE..KSP130201805-202006

main23209-21091×4i1NZFXE..NHP130201407-201703

main23209-49205×4i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main23209-49275×4i2NRFKE..NSP131201703-202006

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×3i1KRFE..KSP130201703-201805

main90301-07037×4i1NZFXE..NHP130201407-201703

main90301-07042×4i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

23291INSULATOR, INJECTOR VIBRATION

main23291-0J020×3i1KRFE..KSP130..3D..G201407-201511

(L)

main23291-23010×3i1NZFXE..NHP130;1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

(J)

23814BPIPE, FUEL DELIVERY

main23814-21073i1NZFXE..NHP130201407-201703

main23814-40040i1KRFE..KSP130..3D..G201407-201511

main23814-40050i1KRFE..KSP130201805-202006

main23814-47050i1NRFE..NSP130..3D..(G,S)201407-201511

main23814-47051i2NRFKE..NSP131201806-202006

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NRFE..NSP130..3D..(G,S)201407-201511

main23841-37090i2NRFKE..NSP131201703-202006

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21050i2NRFKE..NSP131201703-202006

main23842-47020i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

23845CINSULATOR, FUEL PIPE

main23845-40010×2i1KRFE..KSP130..3D..G201407-201511

23881BBRACKET, FUEL HOSE

main23881-0Q020i1KRFE..KSP130..3D..G201407-201511

main23881-0Q040i1KRFE..KSP130201805-202006

23901TUBE SUB-ASSY, FUEL

main23901-0M020i1NZFXE..NHP130201703-201905

main23901-0M050i1NZFXE..NHP130201905-202006

main23901-0Q060i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

main23901-0Q080i1KRFE..KSP130201805-201905

main23901-0Q110i1KRFE..KSP130201905-202006

main23901-0Y050i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main23901-0Y240i2NRFKE..NSP131201703-201905

main23901-0Y410i2NRFKE..NSP131201905-202006

7701

90105W0090

main90105-W0090

90119W0019

main90119-W0019

90119W0135

main90119-W0135

9046912012

main90469-12012

9155180620

main91551-80620

9167100835

main91671-00835

18 parts on this diagram · 5 diagrams in section
