STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 1.3KW 0004 112V 1.6KW 0005 112V 1.7KW,2.0KW 0006 112V 1.0KW 0007 112V 1.3KW 0008 112V 1.6KW 0009 112V 1.6KW

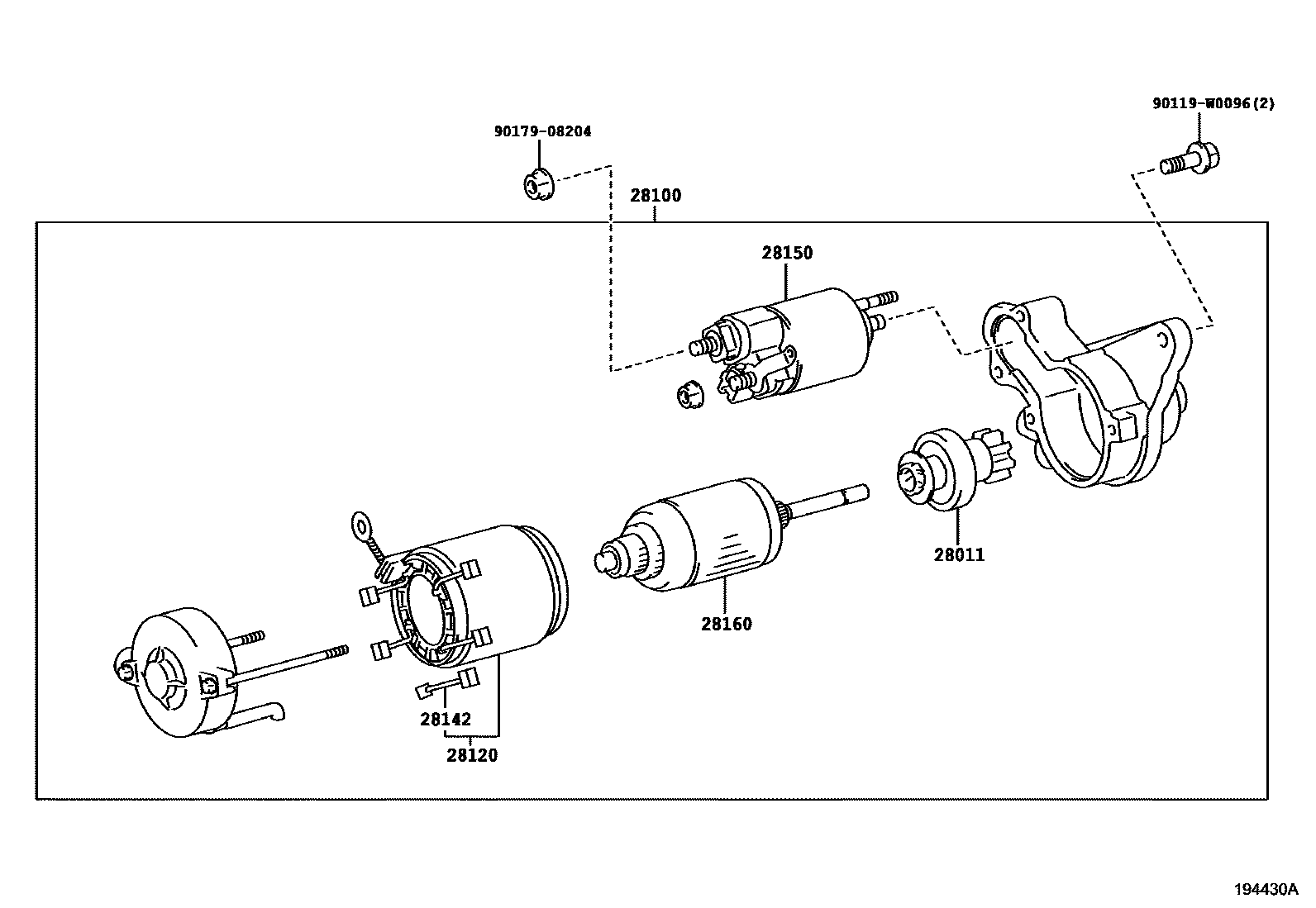

28011CLUTCH SUB-ASSY, STARTER

main28011-40070i1KRFE..KSP130201407-202006

28100STARTER ASSY

main28100-0N040i1NDTV..NLP130201407-201812

12V 1.6KW

main28100-0Q080i1KRFE..KSP130201407-201409

12V 0.8KW

sub28100-0Q081

main28100-0Q081i1KRFE..KSP130..3D..G201410-202006

12V 0.8KW

main28100-0Y090i1NRFE..NSP130201407-201409

12V 1.0KW

sub28100-0Y091

main28100-0Y091i1NRFE..NSP130..3D..(G,S)201410-201908

12V 1.0KW

sub28100-0Y290

main28100-0Y290i2NRFKE..NSP131201909-202006

12V 1.0KW

28120YOKE ASSY, STARTER

main28120-33110i1NDTV..NLP130201407-201812

main28120-40120i1KRFE..KSP130201407-202006

28142BRUSH, STARTER

main28142-10020i1KRFE..KSP130201407-202006

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i1NDTV..NLP130201407-201812

main28150-40070i1KRFE..KSP130201407-202006

28160ARMATURE ASSY, STARTER

main28160-21070i2NRFKE..NSP131201407-201909

main28160-33090i1NDTV..NLP130201407-201812

main28160-40070i1KRFE..KSP130201407-202006

main28160-47180i2NRFKE..NSP131201909-202006

90119W0096

main90119-W0096

9017908204

main90179-08204

8 parts on this diagram · 9 diagrams in section
