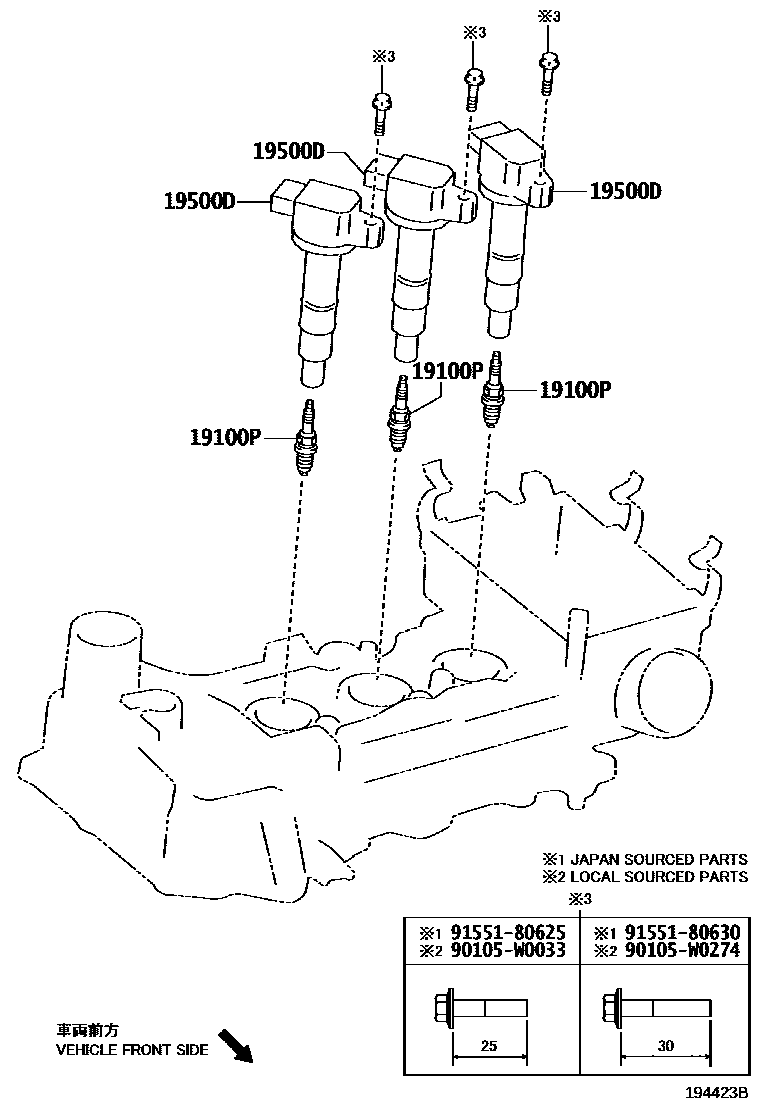

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01265×4i1NZFXE..NHP130201407-201703

FK16R-A8

main90919-01275×3i1KRFE..KSP130..3D..G201407-201511

SC16HR11

main90919-01289×4i2NRFKE..NSP131201703-202006

FC16HR-Q8

19500COIL ASSY, IGNITION

main90919-02257×4i2NRFKE..NSP131201703-202006

main90919-02265×4i1NZFXE..NHP130201703-202006

19500DCOIL, IGNITION, NO.1

main90919-02270×3i1KRFE..KSP130..3D..G201407-201511

(J)

main90919-02281×3i1KRFE..KSP130201805-202006

main90919-W2002×3i1KRFE..KSP130..3D..G201407-201511

(L)

90105W0033

main90105-W0033

90105W0274

main90105-W0274

9155180625

main91551-80625

9155180630

main91551-80630

7 parts on this diagram · 4 diagrams in section
