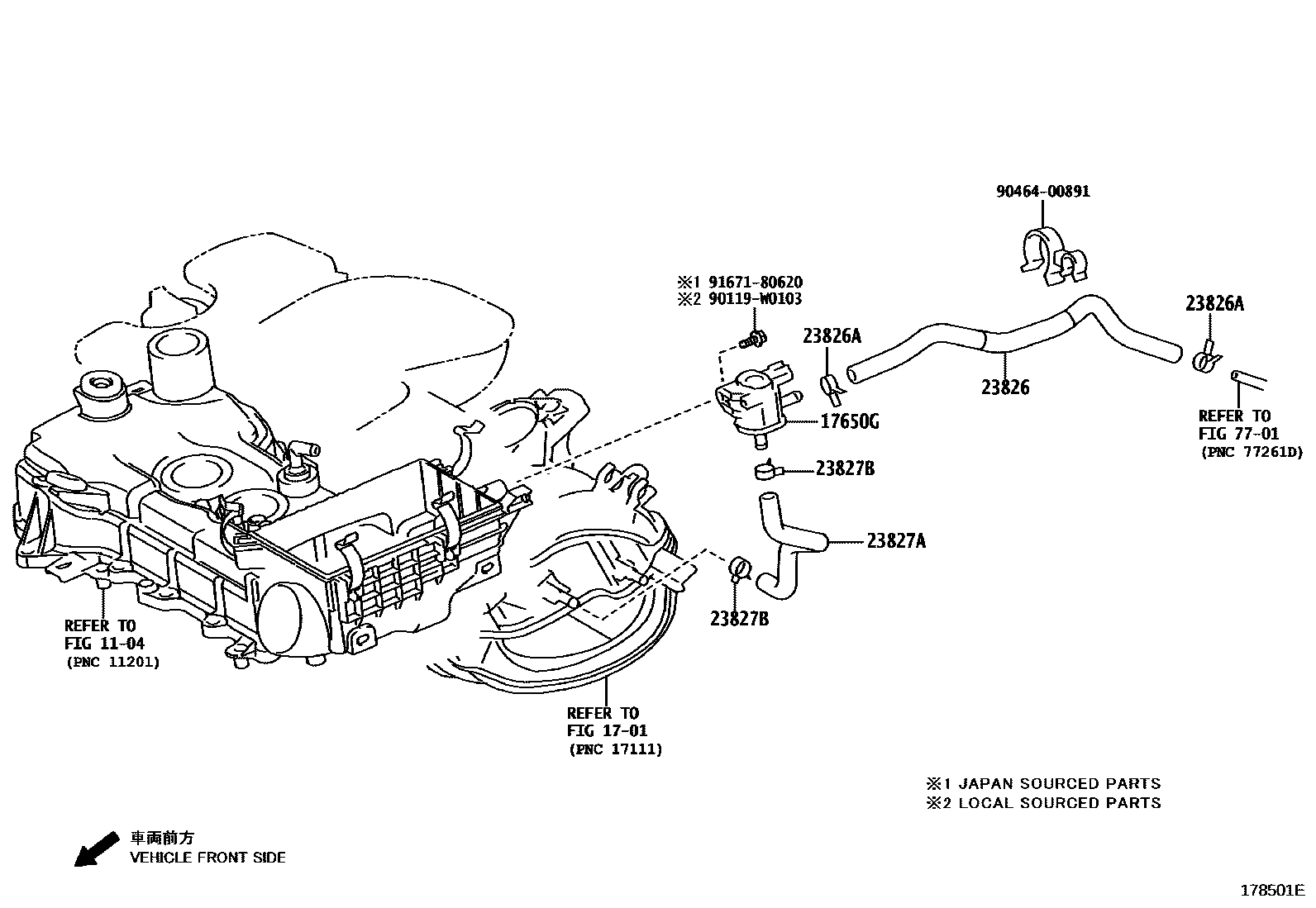

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1EXCEPT EURO6 0006 1EURO6 0007 1 0008 1

1104

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-0Y110i2NRFKE..NSP131..CVT201703-202006

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KSP130..3D..G201407-201511

(J)

main90910-12282i1KRFE..KSP130201905-202006

PAINTED=WHITE

main90910-WC003i1KRFE..KSP130..3D..G201407-201511

(L)

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0M050i1NZFXE..NHP130201703-202006

main23826-0Y010i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main23826-0Y250i2NRFKE..NSP131201703-201705

main23826-0Y251i2NRFKE..NSP131201705-202006

main23826-40030i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1NZFXE,2NRFKE..NHP130,NSP131201703-202006

main96132-51100×2i1KRFE..KSP130..3D..G201407-201511

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M050i1NZFXE..NHP130201407-201703

main23827-0Q010i1KRFE..KSP130201805-202006

main23827-0Y010i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main23827-0Y210i2NRFKE..NSP131201703-202006

main23827-40050i1KRFE..KSP130..3D..G201407-201511

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96133-41301×2iKSP130201610-201703

main96137-41301×2i1KRFE..KSP130201703-201804

main96137-41501×2i1KRFE..KSP130201805-202003

main96138-41501×2i1KRFE..KSP130202004-202006

7701

90119W0103

main90119-W0103

9046400891

main90464-00891

9167180620

main91671-80620

12 parts on this diagram · 8 diagrams in section
