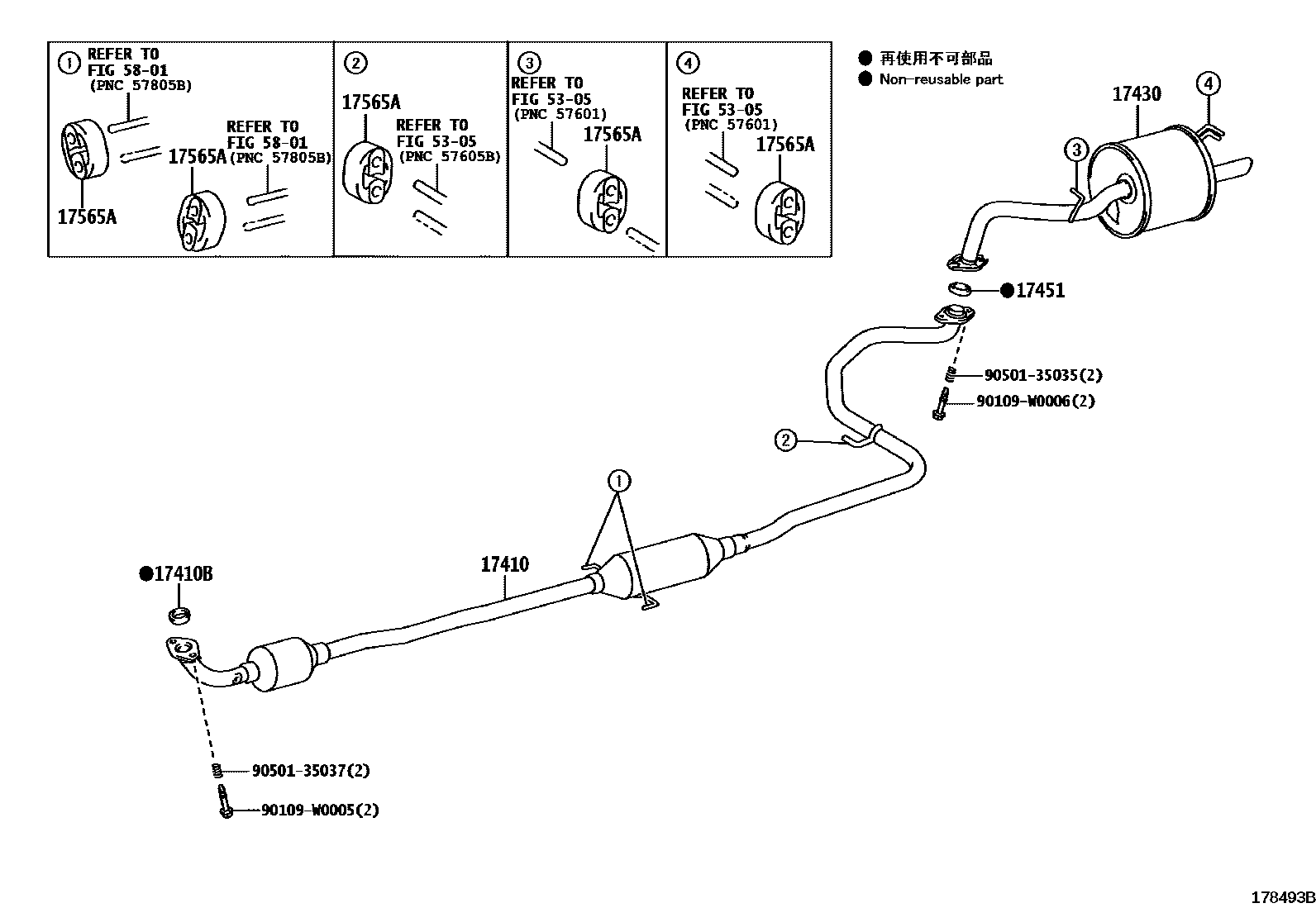

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M180i1NZFXE..NHP130201407-201608

*114=TOYOTA/FB1/Y

sub17410-0M181

main17410-0M181i1NZFXE..NHP130201609-202006

*114=TOYOTA/FB1/Y

main17410-0N130i1NDTV..NLP130201407-201812

main17410-0N190i1NDTV..NLP130201505-201805

*114=TOYOTA/X87/Y

main17410-0Q070i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201805

*114=TOYOTA/CH8/Y

main17410-0Q100i1KRFE..KSP130201805-202006

*114=TOYOTA/CK8/Y

main17410-0Y120i1NRFE..NSP130..3D..(G,S)201407-201703

*114=TOYOTA/CE8/Y

main17410-0Y770i2NRFKE..NSP131201703-202006

*114=TOYOTA/NJ1/Y

17410BGASKET, EXHAUST PIPE

main17451-0Q010i1KRFE..KSP130201407-201506

main17451-0Q030i1KRFE..KSP130..3D..G201507-202006

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M120i1NZFXE..NHP130201407-202006

main17430-0N080i1NDTV..NLP130201407-201805

TYPE A:REFER ILLUST.

main17430-0N150i1NDTV..NLP130201805-201812

TYPE B:REFER ILLUST.

main17430-0Q070i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-202006

main17430-0Y020i1NRFE..NSP130..3D..(G,S)201407-201703

main17430-0Y390i2NRFKE..NSP131201703-202006

17451GASKET, EXHAUST PIPE

main17451-0J030i1NZFXE..NHP130;1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-202006

main17451-0Q022i1KRFE..KSP130..3D..G201407-202006

main17451-0R010i1NDTV..NLP130201407-201812

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0Q030i1NDTV,1NRFE..NLP130,NSP130..3D..(G,S)201407-202006

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

11 parts on this diagram · 5 diagrams in section
