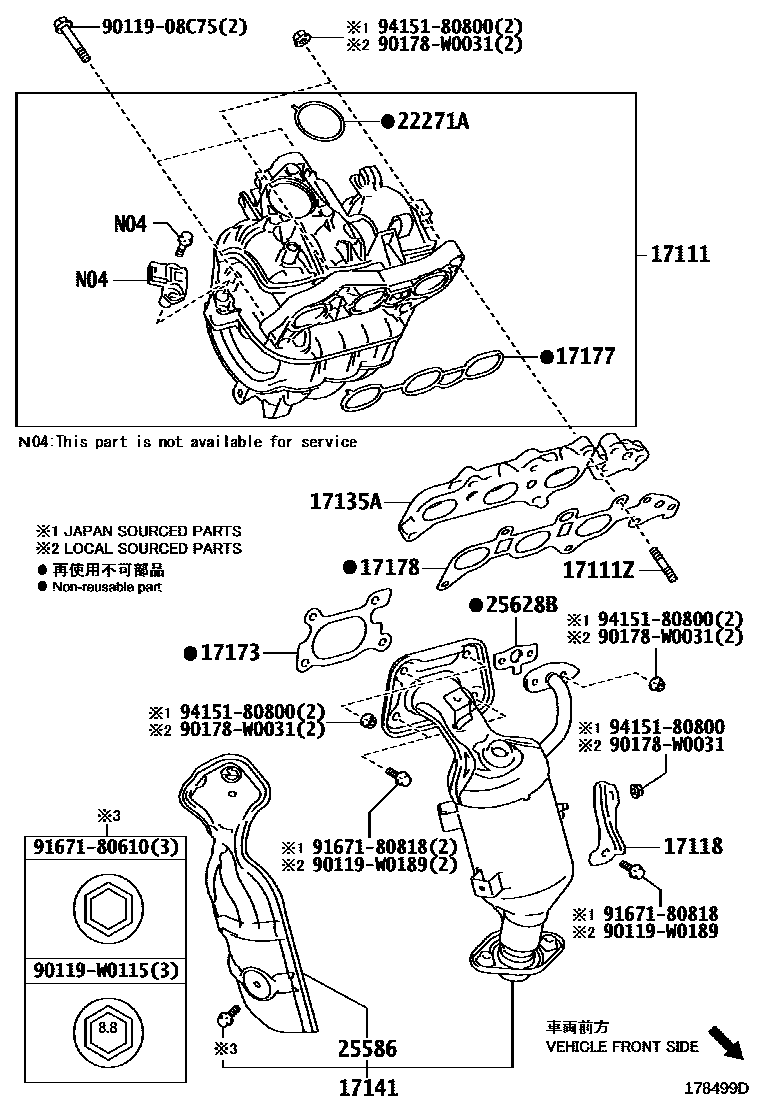

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1W(DPF) EXCEPT EURO6 0006 1W/O(DPF) EXCEPT EURO6 0007 1EURO6 0008 1

17111MANIFOLD, INTAKE

main17120-0Q040i1KRFE..KSP130201703-201805

main17120-0Q050i1KRFE..KSP130201805-202006

main17120-21060i1NZFXE..NHP130201703-202006

main17120-47032i1NRFE..NSP130..3D..(G,S)201407-201511

main17120-47110i2NRFKE..NSP131201703-202006

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFXE..NHP130201407-201703

main90126-08060×2i2NRFKE..NSP131201703-202006

main92122-80845×2i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

17118STAY, MANIFOLD

main17118-0Q020i1KRFE..KSP130201703-202006

main17118-33040i1NDTV..NLP130201805-201812

main17118-33070i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201505-201703

main17118-47010i1NRFE..NSP130..3D..(G,S)201407-201511

main17118-47011i1NRFE..NSP130201608-201703

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-40030i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

17141MANIFOLD, EXHAUST

main17140-0Q090i1KRFE..KSP130201703-201805

*114=TOYOTA/0Q090/Y

main17140-0Q100i1KRFE..KSP130..3D..G201407-201511

*114=TOYOTA/0Q100/Y

main17140-0Q110i1KRFE..KSP130201805-202006

*114=TOYOTA/0Q110/Y

main17140-21110i1NZFXE..NHP130201407-201703

*114=TOYOTA/21110/Y

main17141-33050i1NDTV..NLP130201407-201504

sub17141-33051

main17141-33080i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201504-201703

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0Q030i1KRFE..KSP130201805-202006

main17173-21020i1NZFXE..NHP130201407-201703

main17173-33030i1NDTV..NLP130201407-201408

main17173-33031i1NDTV..NLP130..3D..(G,S)201409-201511

main17173-40050i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

main17173-47021i1NRFE..NSP130..3D..(G,S)201407-201511

main17173-47040i2NRFKE..NSP131201703-202006

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0Q030i1KRFE..KSP130201703-201805

main17177-0Q040i1KRFE..KSP130201805-202006

main17177-21040i1NZFXE..NHP130201407-201703

main17177-47011i1NRFE..NSP130..3D..(G,S)201407-201511

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-0Q020i1KRFE..KSP130..3D..G201407-201511

22271AGASKET, THROTTLE BODY

main22271-0Q010i1KRFE..KSP130..3D..G201407-201511

main22271-0Q020i1KRFE..KSP130201805-202006

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0Q040i1KRFE..KSP130..3D..G201407-201511

main25586-0Q050i1KRFE..KSP130201805-202006

25628BGASKET, EGR INLET

main25628-0Q010i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

(L)

main25628-40020i1KRFE..KSP130..3D..G201407-201511

(J)

main25628-47010i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

9011908C75

main90119-08C75

90119W0115

main90119-W0115

90119W0189

main90119-W0189

90178W0031

main90178-W0031

9167180610

main91671-80610

9167180818

main91671-80818

9415180800

main94151-80800

18 parts on this diagram · 8 diagrams in section
