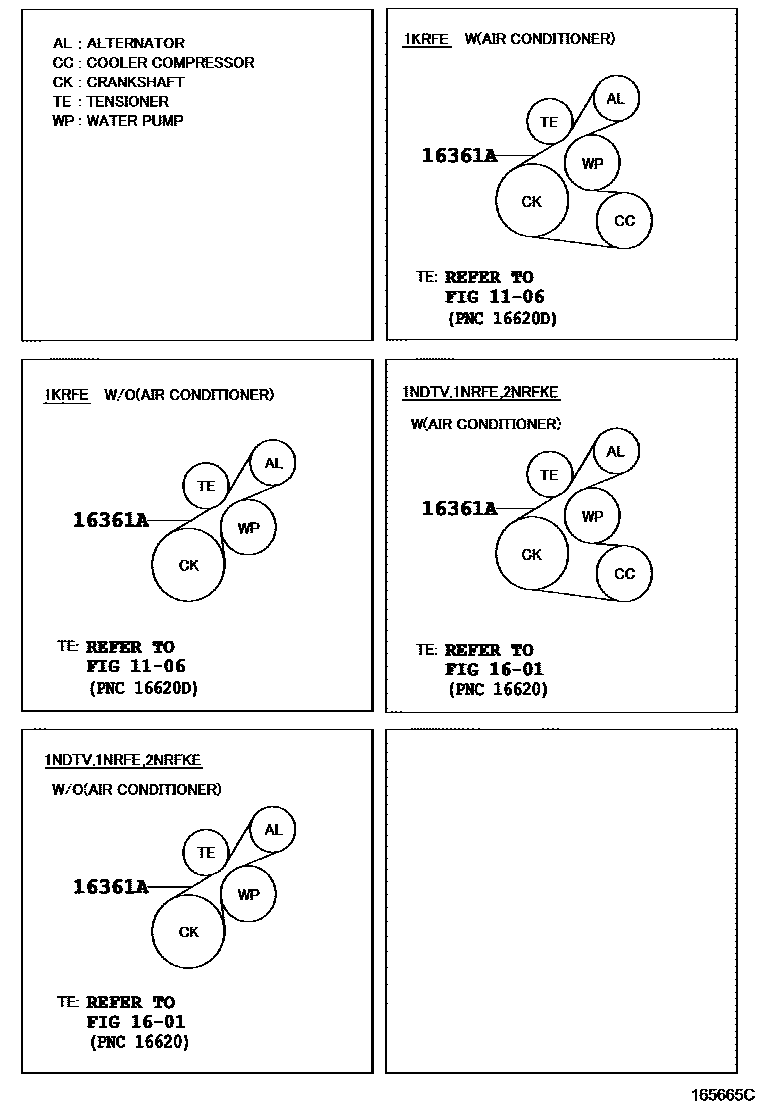

V-BELT
1106
1601
16361ABELT, V(FOR FAN & ALTERNATOR)
(J)
FRONT AIR CONDITIONER-DEALER OPTION
WITH(STOP & START SYSTEM)&COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
WITH(STOP & START SYSTEM)&COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
COLD AREA SPEC & W/O(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-02751
COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
WITH(STOP & START SYSTEM)&COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-DEALER OPTION&AIR CONDITIONER COMPRESSOR-WITHOUT,MARK 90916-W2030
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION,MITSUBOSHI 6PK1207
(L)
3 parts on this diagram · 1 diagram in section
