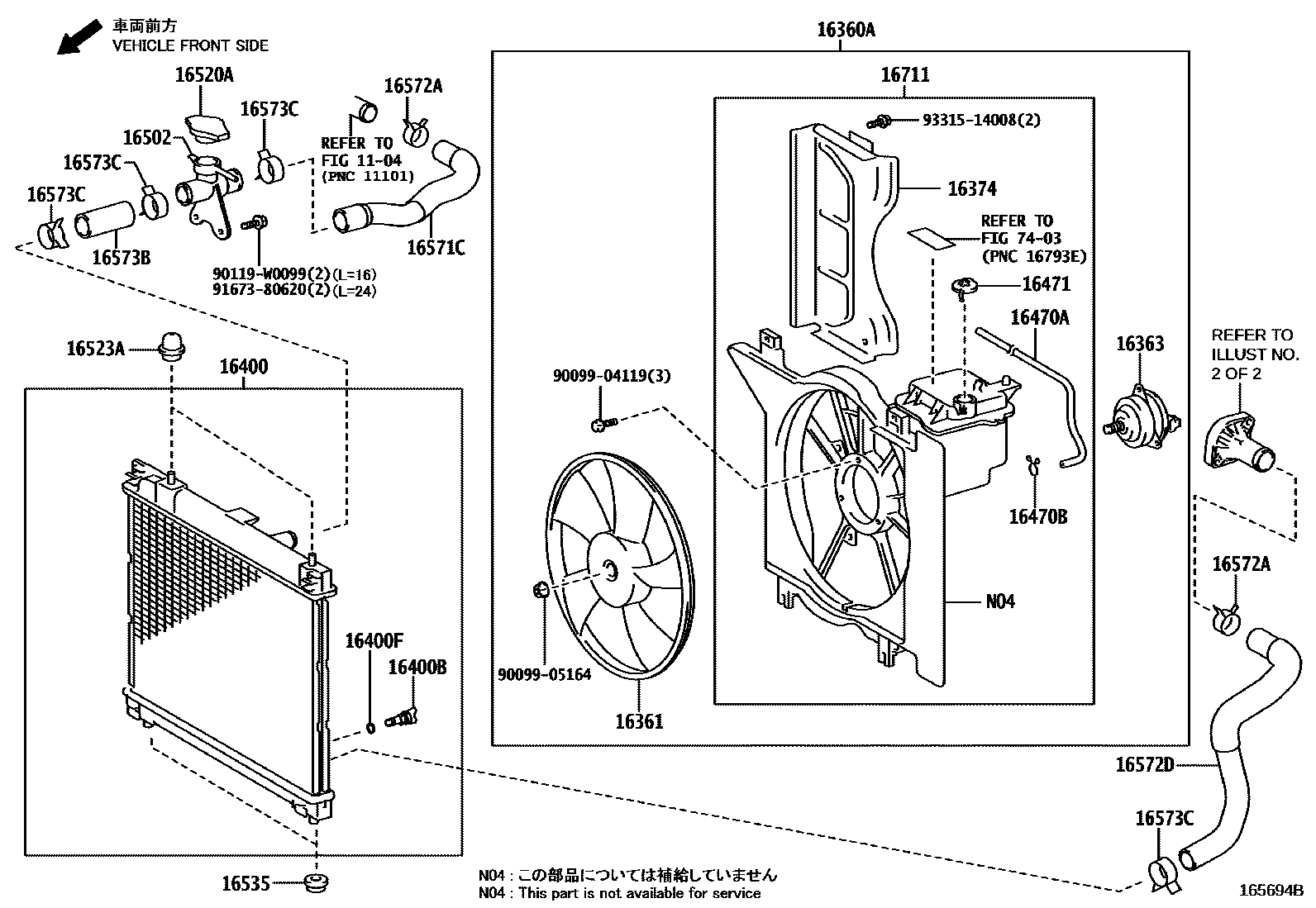

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1RADIATOR SIDE 0005 1ENGINE SIDE 0006 1ENGINE SIDE 0007 1RADIATOR SIDE 0008 1ENGINE SIDE 0009 1RADIATOR SIDE 0010 1ENGINE SIDE, EXCEPT EURO6 0011 1ENGINE SIDE, EURO6 0012 1RADIATOR SIDE 0013 1ENGINE SIDE 0014 1ENGINE SIDE 0016 1ENGINE SIDE

1104

16360AFAN ASSY, W/MOTOR

main16360-0N051i1NDTV..NLP130201703-201812

main16360-0Q031i1KRFE..KSP130201703-202006

main16360-0Y040i1NRFE..NSP130201407-201703

main16360-0Y110i2NRFKE..NSP131201703-202006

16361FAN

main16361-0M100i1NZFXE..NHP130201407-201703

main16361-0N030i1NDTV..NLP130201703-201812

main16361-0Q030i1KRFE..KSP130..3D..G201407-201511

main16361-0Y250i2NRFKE..NSP131201703-202006

16363MOTOR, COOLING FAN

main16363-0D090i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main16363-0G051i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

main16363-0M061i1NZFXE..NHP130201407-201703

16374INSULATOR, COOLING FAN MOTOR

main16366-0Q030i1NRFE..NSP130201407-201703

main16366-0Y110i2NRFKE..NSP131201703-202006

16400RADIATOR ASSY

main16400-0N050i1NDTV..NLP130201703-201707

main16400-0N051i1NDTV..NLP130201707-201812

main16400-0Q040i1KRFE..KSP130..3D..G201407-201511

main16400-0Y060i1NRFE..NSP130201407-201703

main16400-0Y260i2NRFKE..NSP131201703-202006

main16400-21330i1NZFXE..NHP130201703-201904

main16400-21331i1NZFXE..NHP130201905-202006

16400BPLUG, RADIATOR DRAIN COCK

main16417-0Q040i1KRFE..KSP130201703-202006

main16417-21280i1NZFXE..NHP130201407-201703

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1KRFE..KSP130..3D..G201407-201511

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16378-0Y110i2NRFKE..NSP131201703-202006

main16378-21180i1NZFXE..NHP130201407-201703

main90445-12067i1KRFE..KSP130..3D..G201407-201511

L=330

main90445-12078i1NRFE..NSP130..3D..(G,S)201407-201511

*H,L=280

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1KRFE..KSP130..3D..G201407-201511

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i1KRFE..KSP130..3D..G201407-201511

16502FILLER SUB-ASSY, WATER

main16502-0Q010i1KRFE..KSP130..3D..G201407-201511

main16502-21090i1NZFXE..NHP130201703-202006

16520ACAP SUB-ASSY, WATER FILLER

main16401-31520i1KRFE..KSP130..3D..G201407-201511

main16401-36020i1KRFE..KSP130201604-201703

16523ACUSHION, RADIATOR SUPPORT

main16523-0Q020×2i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

16535SUPPORT, RADIATOR, LOWER

main90480-W0005×2i1NDTV,1NRFE..NLP130,NSP130..3D..(G,S)201407-201511

16571CHOSE, RADIATOR, NO.1

main16571-0M060i1NZFXE..NHP130201407-201703

main16571-0N060i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

main16571-0Q021i1KRFE..KSP130..3D..G201407-201511

main16571-47080i1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)201407-201703

sub16571-47130

main16571-47120i1NRFE..NSP130..6F201512-201703

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-W0015×2i1KRFE..KSP130..3D..G201407-201511

16572DHOSE, RADIATOR, NO.2

main16572-0M080i1NZFXE..NHP130201407-201703

main16572-0Q040i1KRFE..KSP130..3D..G201407-201511

main16572-33080i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

main16572-47070i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main16572-47140i2NRFKE..NSP131201703-202006

16573BHOSE, RADIATOR, NO.3

main16573-0M060i1NZFXE..NHP130201407-201703

main16573-0Q010i1KRFE..KSP130..3D..G201407-201511

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-W0011×2i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

16711SHROUD, FAN

main16711-0M100i1NZFXE..NHP130201407-201703

main16711-0N031i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

main16711-0Q030i1KRFE..KSP130..3D..G201407-201511

main16711-0Y040i1NRFE..NSP130..3D..(G,S)201407-201511

main16711-0Y230i2NRFKE..NSP131201703-202006

7403

9009904119

main90099-04119

9009905164

main90099-05164

90119W0099

main90119-W0099

9167380620

main91673-80620

9331514008

main93315-14008

27 parts on this diagram · 15 diagrams in section
