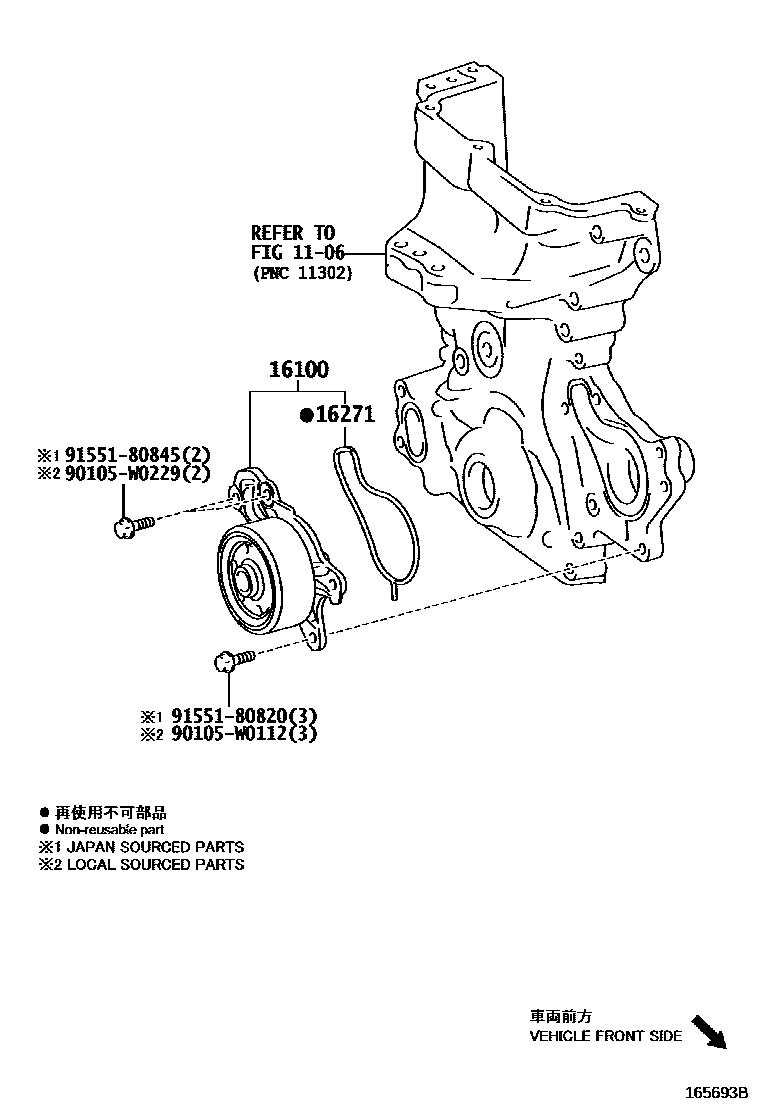

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09610i1NDTV..NLP130201407-201505

TYPE A:REFER 19-01

main16100-09640i1KRFE..KSP130201407-201412

sub16100-09641

main16100-09641i1KRFE..KSP130201412-201803

sub16100-09642

main16100-09642i1KRFE..KSP130201803-201805

sub16100-09643

main16100-09680i1NDTV..NLP130201703-201805

main16100-09680i1NDTV..NLP130..3D..(G,S)201505-201703

TYPE B:REFER 19-01

main16100-09750i2NRFKE..NSP131201703-202006

main16100-09780i1KRFE..KSP130201805-202006

main16100-39526i1NDTV..NLP130201805-201812

main16100-80010i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

sub16100-80019

main161A0-29015i1NZFXE..NHP130201407-202006

16271GASKET, WATER PUMP

main16271-0Q020i1KRFE..KSP130..3D..G201407-202006

main16271-0Y030i2NRFKE..NSP131201703-202006

main16271-33030i1NDTV..NLP130..3D..(G,S)201407-201812

main16271-37020i1NZFXE..NHP130201407-202006

main16271-47031i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

90105W0112

main90105-W0112

90105W0229

main90105-W0229

9155180820

main91551-80820

9155180845

main91551-80845

7 parts on this diagram · 5 diagrams in section
