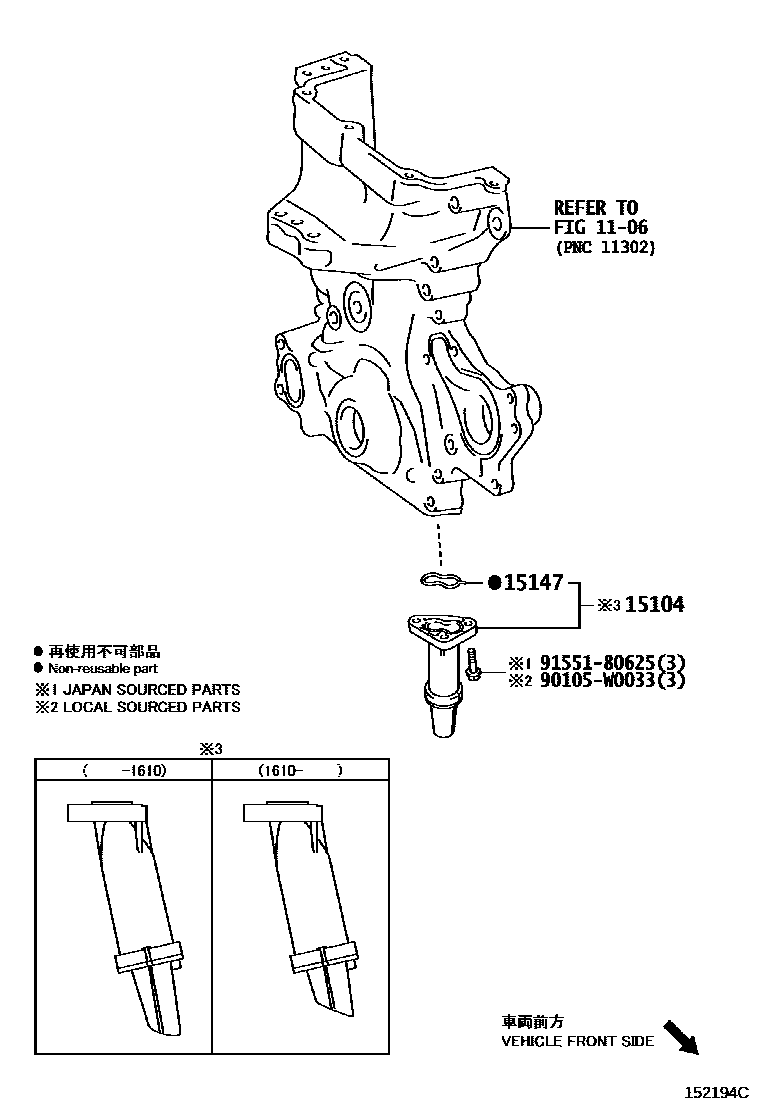

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1106

15104STRAINER SUB-ASSY, OIL

main15104-0Q020i1KRFE..KSP130201407-201610

sub12102-0Q021

main15104-0Q021i1KRFE..KSP130201610-201703

main15104-0Q030i1KRFE..KSP130201805-202006

main15104-21022i1NZFXE..NHP130201407-201703

main15104-47040i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main15104-47060i2NRFKE..NSP131201703-202006

15147GASKET, OIL STRAINER

main15147-0Q020i1KRFE..KSP130201805-202006

main15147-40040i1KRFE..KSP130..3D..G201407-201511

90105W0033

main90105-W0033

9155180625

main91551-80625

5 parts on this diagram · 5 diagrams in section
