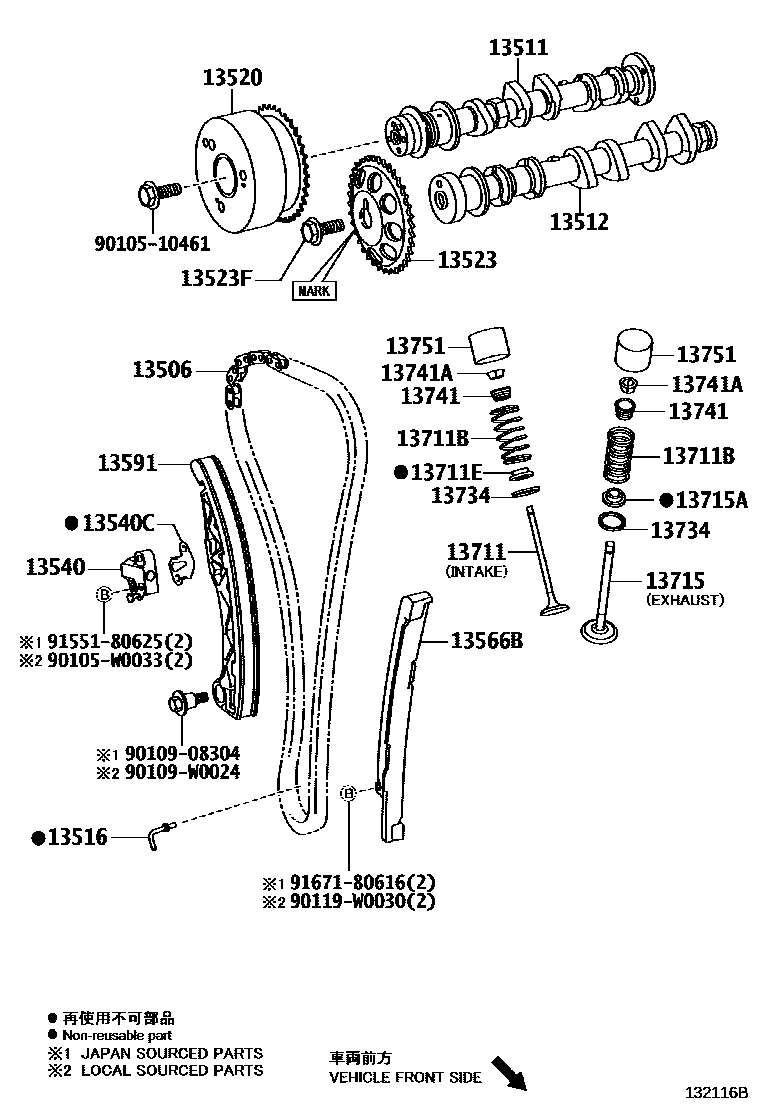

CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
PNC 13523=TYPE B
PNC 13523=TYPE A
13511CAMSHAFT
PNC 13523=TYPE B
PNC 13523=TYPE A
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
MARK I
MARK IN
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
INTAKE SIDE,(L)
INTAKE SIDE,(J)
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
EXHAUST SIDE,(L)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
(J)
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.16
T=5.28
T=5.30
T=5.32
T=5.34
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.60
T=5.64
T=5.66
T=5.68
9010510461
main90105-10461
90105W0033
main90105-W0033
9010908304
main90109-08304
90109W0024
main90109-W0024
90119W0030
main90119-W0030
9155180625
main91551-80625
9167180616
main91671-80616
27 parts on this diagram · 6 diagrams in section
