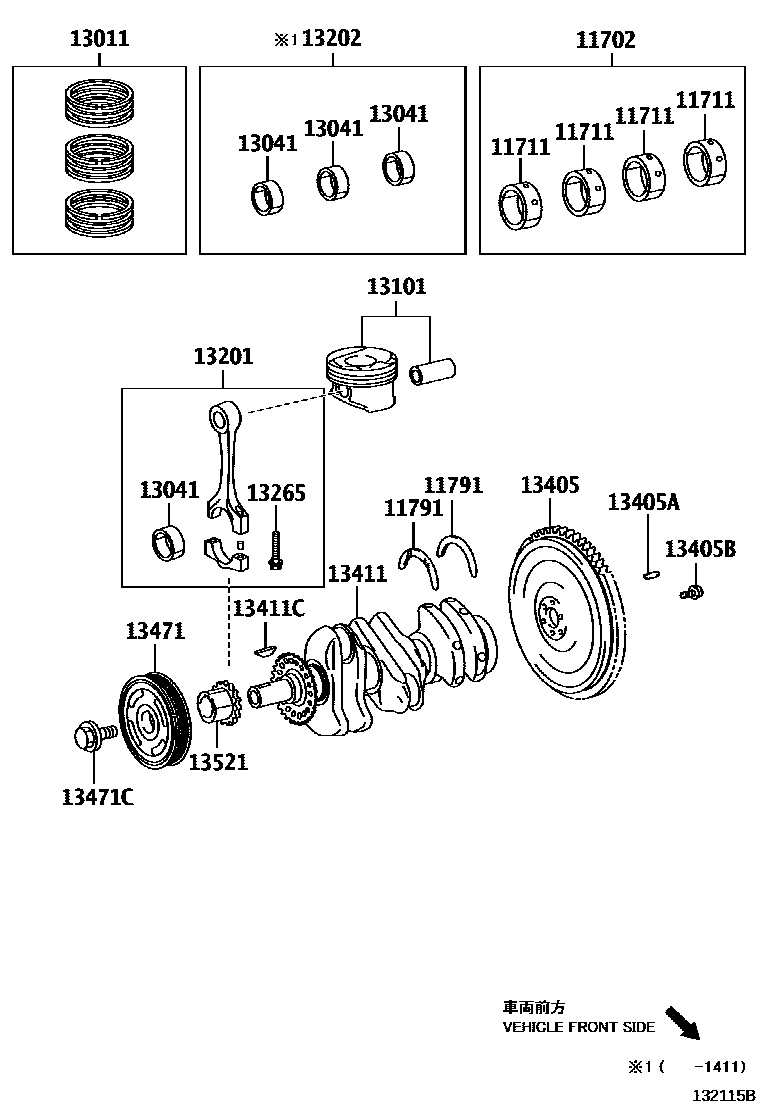

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25,WITH(STOP & START SYSTEM)
11711BEARING, CRANKSHAFT
MARK 1,(L),NO.1,2 REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
MARK 4,(L),NO.1,2 REFER R/M
MARK 1,(L),NO.1,2 REFER R/M
MARK 2,(L),NO.1,2 REFER R/M
MARK 3,(L),NO.1,2 REFER R/M
MARK 4,(L),NO.1,2 REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 1,(J),NO.1,2 REFER R/M
MARK 2,(J),NO.1,2 REFER R/M
MARK 3,(J),NO.1,2 REFER R/M
MARK 4,(J),NO.1,2 REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
WITH(STOP & START SYSTEM),MARK 1,NO.2,REFER R/M
WITH(STOP & START SYSTEM),MARK 2,NO.2,REFER R/M
WITH(STOP & START SYSTEM),MARK 3,NO.2,REFER R/M
WITH(STOP & START SYSTEM),MARK 4,NO.2,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
STD
STD
STD
STD
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.25
O/S 0.25
O/S 0.25
O/S 0.25
13011RING SET, PISTON
STD,PNC 13521=TYPE B
STD
STD
STD
STD
STD,PNC 13521=TYPE A
STD
STD,EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
13041BEARING, CONNECTING ROD
REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,*RRM,PNC 13521=T/P A
STD,MARK B,*RRM,PNC 13521=T/P A
STD,MARK C,*RRM,PNC 13521=T/P A
STD,MARK A,*RRM,PNC 13521=T/P B
STD,MARK B,*RRM,PNC 13521=T/P B
STD,MARK C,*RRM,PNC 13521=T/P B
STD
STD
STD
STD
STD
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13471PULLEY, CRANKSHAFT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17 parts on this diagram · 5 diagrams in section
