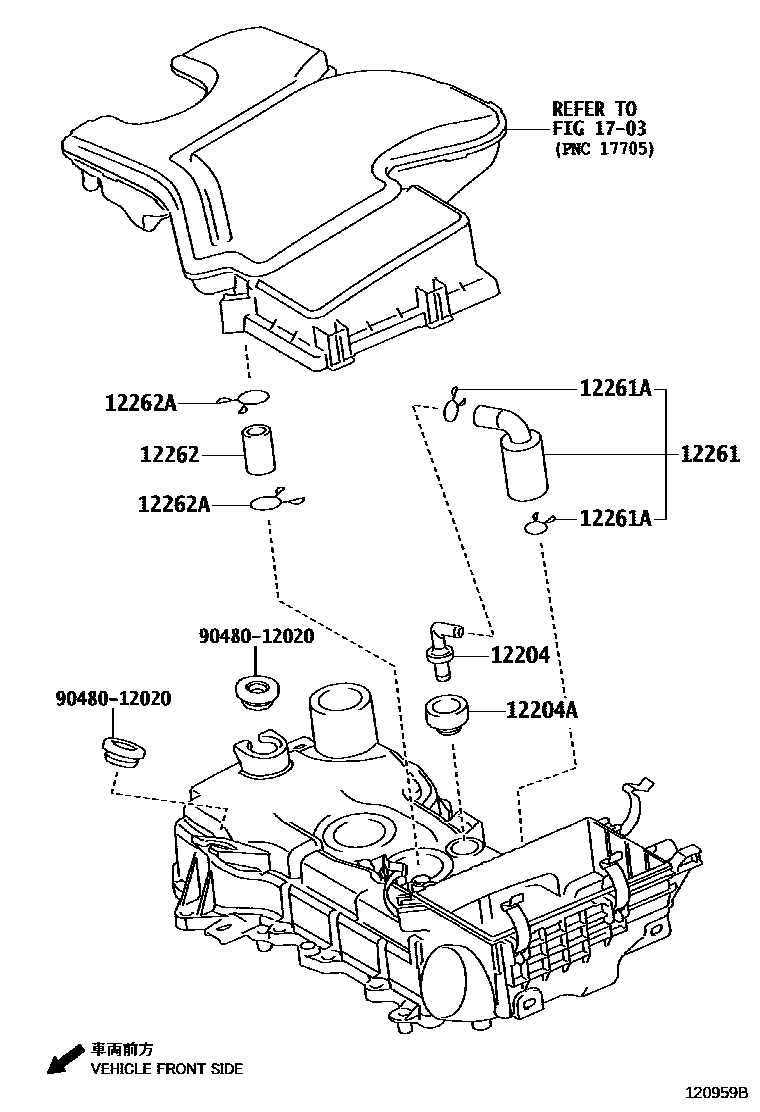

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12204AGROMMET(FOR VENTILATION SYSTEM)
12261HOSE, VENTILATION
TYPE A:REFER ILLUST.
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1:REFER ILLUST.
(L),NO.2:SEE ILLUST
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.2:REFER ILLUST.
1703
9048012020
main90480-12020
8 parts on this diagram · 6 diagrams in section
