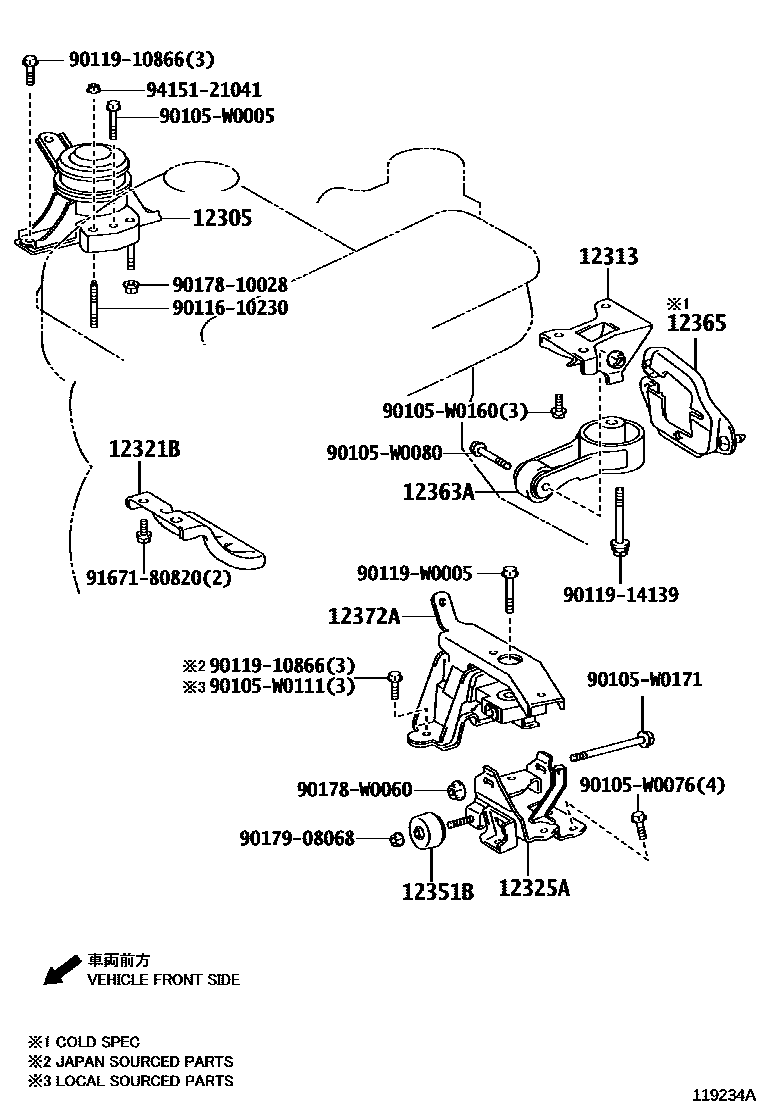

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0M100i1NZFXE..NHP130201407-201703

main12305-0M140i1NZFXE..NHP130201703-202006

main12305-0N080i1NDTV..NLP130201407-201505

TYPE A:REFER ILLUST.

main12305-0N120i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201505-201703

TYPE B:REFER ILLUST.

main12305-0Q022i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

main12305-0Q050i1KRFE..KSP130201805-202006

main12305-0Y050i1NRFE..NSP130..N,R;1NRFE..NSP130..5D..(G,S)201407-201703

main12305-0Y220i2NRFKE..NSP131201703-202006

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0N010i1NDTV..NLP130..3D..(G,S)201407-201511

main12313-0Q020i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

main12313-0Y010i1NRFE..NSP130..6F..(N,R);1NRFE..NSP130..5D..6F..(G,S)201407-201703

12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT

main43409-52040i1NDTV..NLP130..LHD..3D..(G,S)201407-201511

EXHAUST EMISSION CONTROL-GENERAL DESTINATION

main43498-0D080i1KRFE..KSP130201703-202006

main43498-12070i2NRFKE..NSP131201703-202006

main43498-52070i1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)201407-201703

main43498-52090i1NZFXE..NHP130201703-202006

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0M130i1NZFXE..NHP130201703-202006

main12325-0N070i1NDTV..NLP130..3D..(G,S)201407-201511

main12325-0Q030i1KRFE..KSP130..3D..G201407-201511

main12325-0Y060i1NRFE..NSP130..6F..(N,R);1NRFE..NSP130..5D..6F..(G,S)201407-201703

main12325-0Y070i1NRFE..NSP130..3D..CVT..(G,S)201407-201511

main12325-47130i2NRFKE..NSP131..CVT201703-202006

12351DAMPER, ENGINE MOUNTING

main12351-0N040i1NDTV..NLP130..3D..(G,S)201407-201511

main12351-0Y030i2NRFKE..NSP131..6F201703-202006

main12351-0Y040i1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)201407-201703

12351BDAMPER, ENGINE MOUNTING

main12351-0Q010i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

12363AROD, ENGINE MOVING CONTROL

main12363-0M070i1NZFXE..NHP130201407-201703

main12363-0M120i1NZFXE..NHP130201703-202006

main12363-0N020i1NDTV..NLP130..3D..(G,S)201407-201511

main12363-0Q030i1KRFE..KSP130201703-202006

main12363-0Y040i1NRFE..NSP130..6F..(N,R);1NRFE..NSP130..5D..6F..(G,S)201407-201703

main12363-0Y240i2NRFKE..NSP131..CVT201703-202006

main12363-23010i1NRFE..NSP130..CVT..N;1NRFE..NSP130..5D..CVT..(G,S)201407-201703

NO.1:REFER ILLUST.

main12364-47010i1NRFE..NSP130..3D..CVT..(G,S)201407-201511

NO.2:REFER ILLUST.

12365COVER, ENGINE MOVING CONTROL ROD

main12365-40010i1KRFE..KSP130..LHD201703-202006

COLD AREA SPEC & W(REAR HEATER DUCT)

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0M100i1NZFXE..NHP130201703-202006

main12372-0M120i1NZFXE..NHP130201407-201703

main12372-0N090i1NDTV..NLP130..N,R;1NDTV..NLP130..5D..(G,S)201407-201703

main12372-0Q020i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

main12372-0Y150i1NRFE..NSP130..3D..6F..(G,S)201407-201511

main12372-47110i1NRFE..NSP130..3D..CVT..(G,S)201407-201511

main12372-47180i2NRFKE..NSP131..CVT201703-202006

90105W0005

main90105-W0005

90105W0076

main90105-W0076

90105W0080

main90105-W0080

90105W0111

main90105-W0111

90105W0160

main90105-W0160

90105W0171

main90105-W0171

9011610230

main90116-10230

9011910866

main90119-10866

9011914139

main90119-14139

90119W0005

main90119-W0005

9017810028

main90178-10028

90178W0060

main90178-W0060

9017908068

main90179-08068

9167180820

main91671-80820

9415121041

main94151-21041

24 parts on this diagram · 8 diagrams in section
