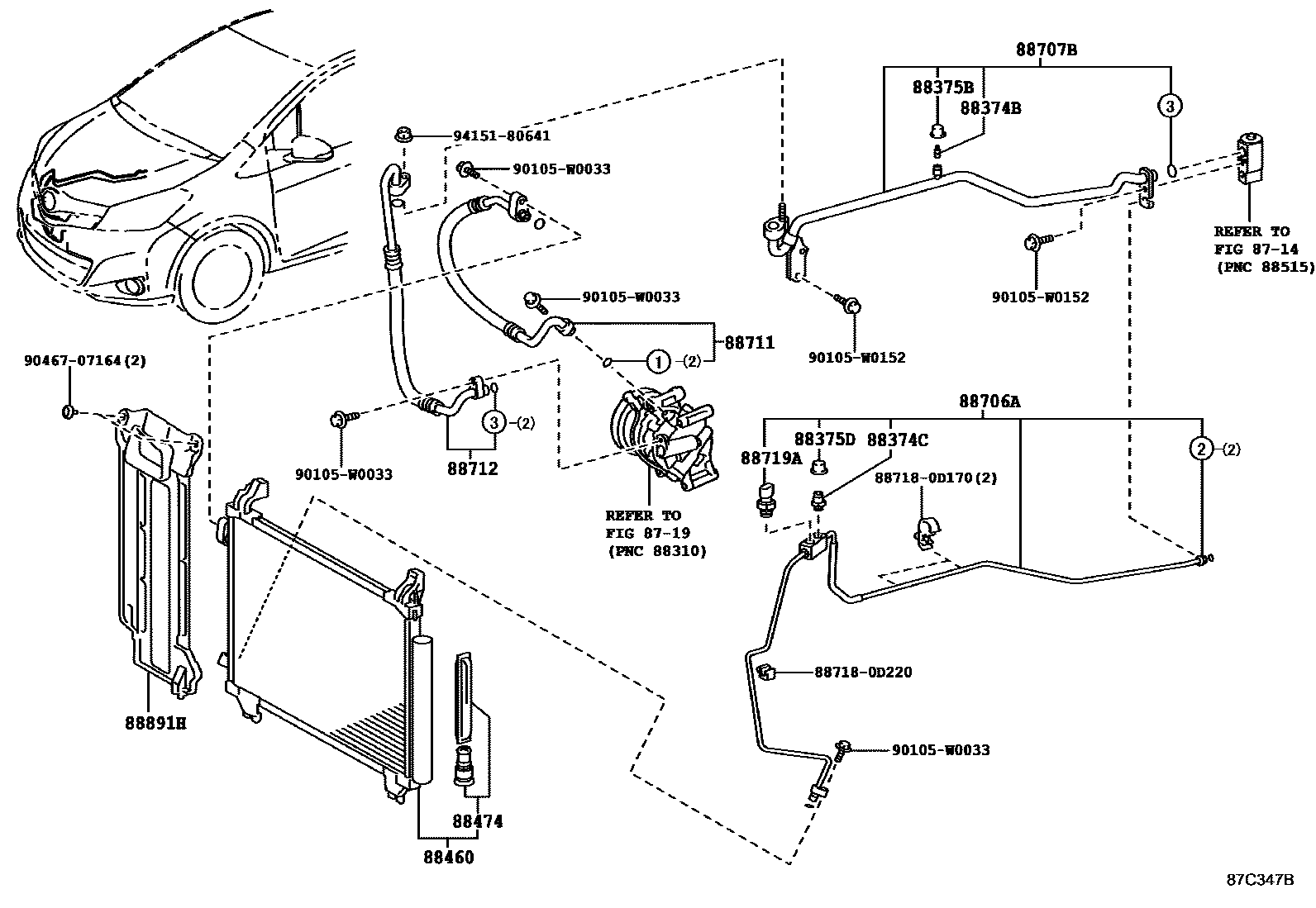

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1DEALER OPTION 0003 1 0004 1DEALER OPTION---W/O(RR HEATER0005 1DEALER OPTION---W(RR HEATER D0006 1 0007 1DEALER OPTION 0008 1 0009 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iKSP130,NHP130,NLP130,NSP130201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

88374CVALVE, SERVICE, NO.2

main88374-33010iNHP130201204

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iKSP130,NHP130,NLP130,NSP130201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iKSP130,NHP130,NLP130,NSP130201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

88460CONDENSER ASSY, COOLER

main88460-0D220iNHP130201204-201407

88474DRYER, COOLER

main88474-47020iNHP130201204

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0D470iNHP130201204

main88706-0D440supersedes 88706-0D400iKSP130,NSP130201107

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

88707PIPE SUB-ASSY, SUCTION

main88707-0D290iNHP130201204

88707BTUBE SUB-ASSY, SUCTION, B

main88707-0D250supersedes 88707-0D240iNLP130201107

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

main88707-0D270iNLP130..LHD201107

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D370iNHP130201204

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D410

main88712-0D420

main88712-0D430

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iKSP130,NHP130,NLP130,NSP130201107

FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))

88891HCOVER, COOLER, NO.1

main88891-0D190iKSP130,NSP130201107

887180D170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D170

887180D220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D220

90105W0033

main90105-W0033

90105W0152

main90105-W0152

9046707164

main90467-07164

9415180641

main94151-80641

21 parts on this diagram · 9 diagrams in section
