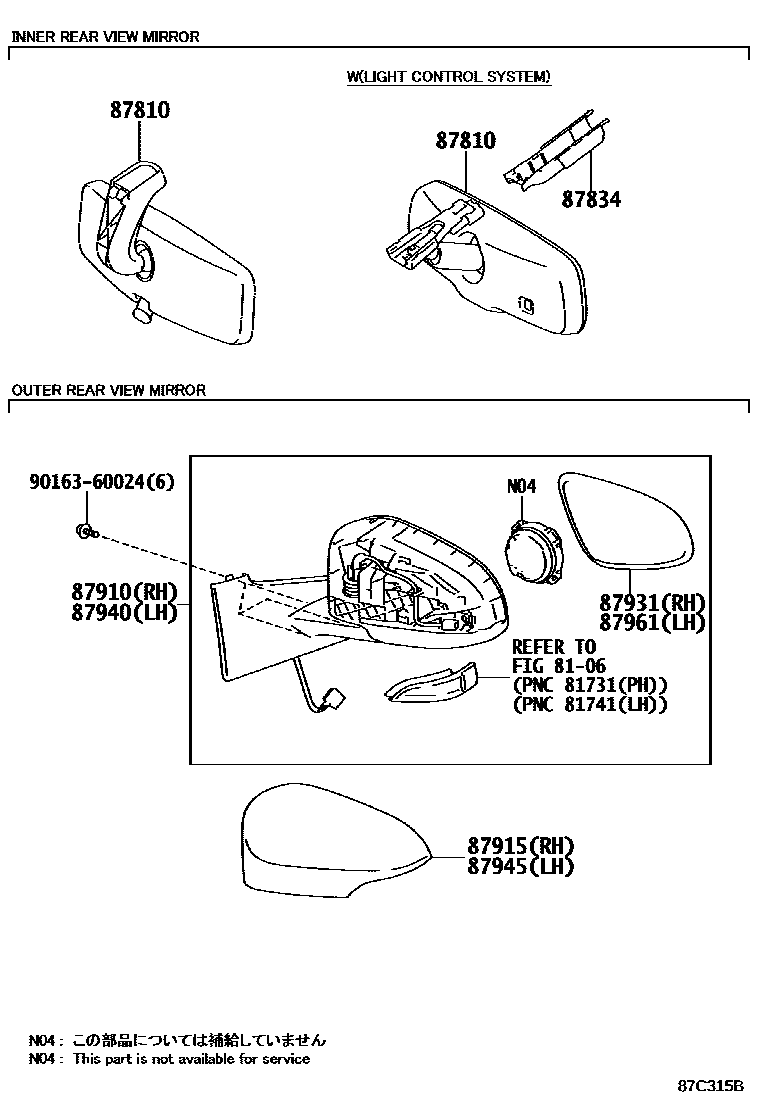

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
main87810-0F010iKSP130,NHP130,NLP130,NSP130201107-201407 main87810-0D080iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201204-201407 LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)
main87810-0F050iKSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201203 LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-33010iKSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201203 LIGHT CONTROL SYSTEM-WITH(*ALC & AUTO OFF & FOLLOW ME HOME)
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-0D600iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
main87910-0D610iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL CONTROL DOOR MIRROR, BLACK
main87910-0D630iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK
main87910-0D640iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL CONTROL DOOR MIRROR, BLACK
87915COVER, OUTER MIRROR, RH
main87915-0D909iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107 PAINT REQ.
main87915-0D390iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD201301 PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME
87931OUTER MIRROR, RH
main87908-0D590iKSP130,NHP130,NLP130,NSP130201107-201309 main87908-0D591iKSP130,NHP130,NLP130,NSP130201309-201407 main87908-0D600iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201309 OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
main87908-0D601iKSP130,NHP130;NLP130,NSP130..LHD..STD;NLP130,NSP130..ACTIV,LOUNG,STYLE201309-201407 OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-0D590iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), BLACK
main87940-0D600iNHP130..LHD..ACTIV;KSP130,NLP130,NSP130..LHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL CONTROL DOOR MIRROR, BLACK
main87940-0D620iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
main87940-0D630iNHP130..RHD..ACTIV;KSP130,NLP130,NSP130..RHD..STD201107 NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL CONTROL DOOR MIRROR, BLACK
87945COVER, OUTER MIRROR, LH
main87945-0D909iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107 PAINT REQ.
main87945-0D370iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STD201301 PLATED,OUTSIDE REAR VIEW MIRROR-ELECTRIC DOOR MIRROR, CHROME
87961MIRROR OUTER, LH
main87909-0D580iKSP130,NHP130,NLP130,NSP130201107-201309 main87909-0D581iKSP130,NHP130,NLP130,NSP130201309-201407 main87909-0D590iKSP130,NHP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201309 OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
main87909-0D591iKSP130,NHP130;NLP130,NSP130..LHD..STD;NLP130,NSP130..ACTIV,LOUNG,STYLE201309-201407 OUTSIDE REAR VIEW MIRROR-*162, WITH(HEATER), COLORED
10 parts on this diagram · 1 diagram in section
