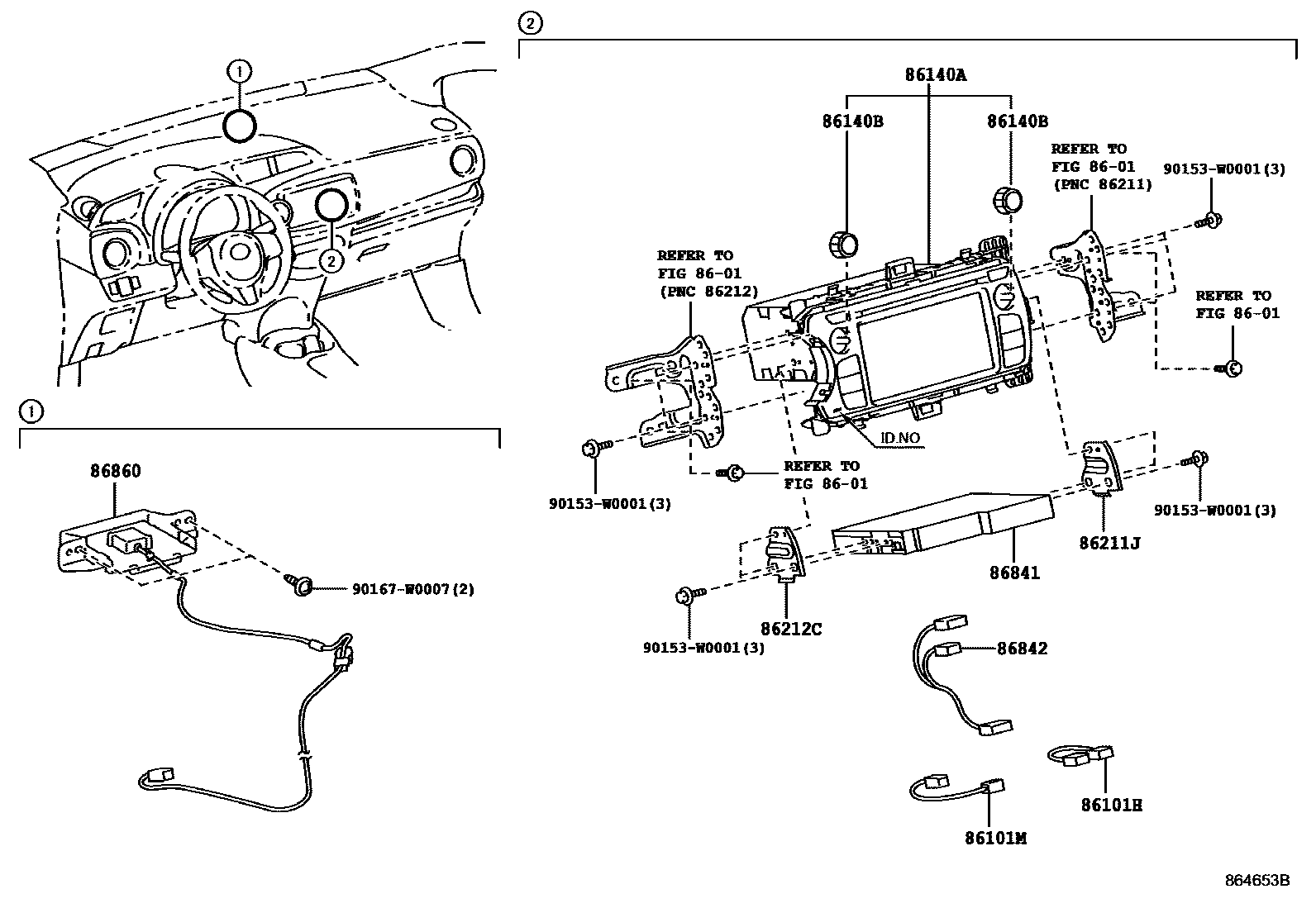

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86101HCORD SUB-ASSY, ANTENNA

86101MCORD SUB-ASSY, ANTENNA

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0D010iKSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107-201407

FUJITSU TEN,ID=19006

main86140-0D020iKSP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)201107-201407

FUJITSU TEN,ID=19007

main86140-0D050iNHP130..LHD201204-201407

FUJITSU TEN,ID100052

main86140-0D060iNHP130..RHD201204-201407

FUJITSU TEN,ID100053

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25201iKSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107

main90011-25202iNHP130201204

86211JBRACKET, RADIO RECEIVER, NO.1

86212CBRACKET, RADIO RECEIVER, NO.2

86841COMPUTER, NAVIGATION

main86840-YY040

main86840-YY041

main86840-YY090

main86840-YY131

main86840-YY132

main86840-YY133

main86840-YY150

86842WIRE, NAVIGATION, NO.1

main86842-YY010

86860ANTENNA ASSY, NAVIGATION

main86860-52190

90153W0001

main90153-W0001

90167W0007

main90167-W0007

12 parts on this diagram · 2 diagrams in section
