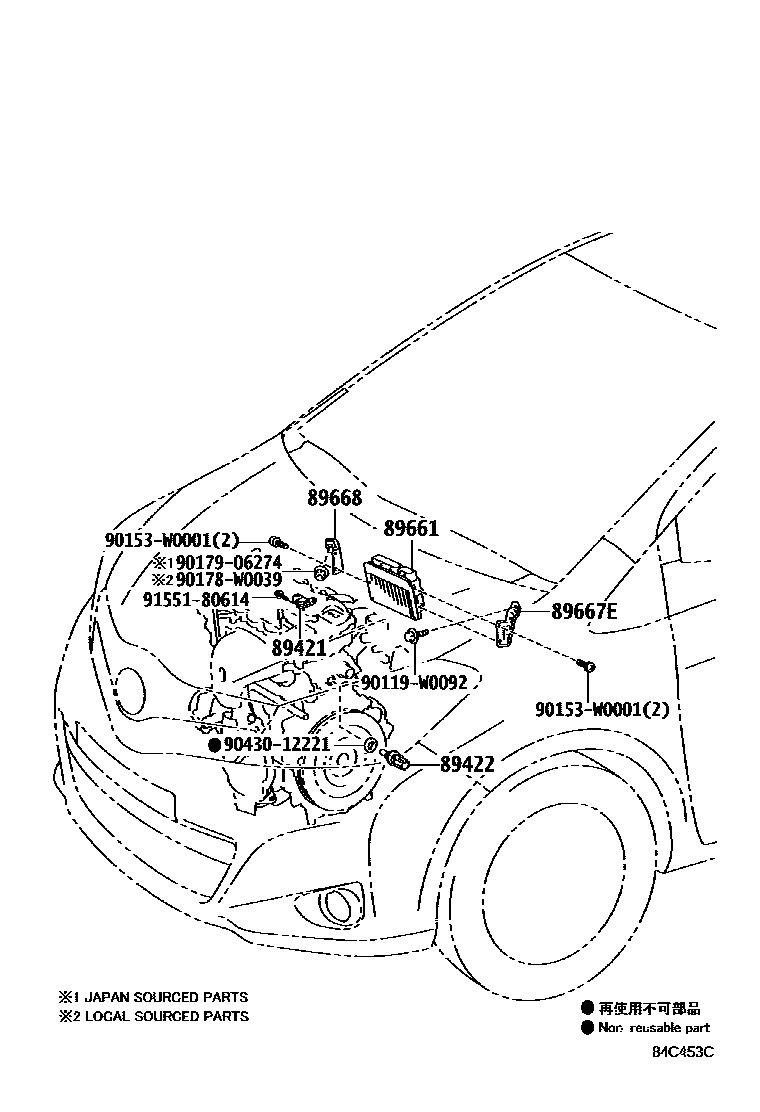

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNSP130201107-201407

main89421-47010iNHP130201204-201407

main89421-52010iKSP130201107-201407

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKSP130,NHP130,NSP130201107

89661COMPUTER, ENGINE CONTROL

main89661-0DC00iNHP130201204-201404

main89661-0DC01iNHP130201404

main89661-0DF10iKSP130201107-201306

main89661-0DF30iNSP130..6F201107-201306

sub89661-0DP40

main89661-0DF40iNSP130..CVFC201107-201207

sub89661-0DF41

main89661-0DF41iNSP130..CVFC201208-201306

sub89661-0DP50

main89661-0DP40iNSP130..6F201307-201308

main89661-0DP41iNSP130..6F201309

main89661-0DP50iNSP130..CVFC201307-201308

main89661-0DP51iNSP130..CVFC201309

main89661-0DR80iKSP130201307

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0D110iNSP130..LHD201107

main89667-0D120iNHP130,NSP130..RHD201107

main89667-0D130iNHP130..LHD201204

main89667-52210iKSP130..LHD201107

main89667-52220iKSP130..RHD201107

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0D110iNSP130..LHD201107

main89668-0D120iNHP130,NSP130..RHD201107

main89668-0D130iNHP130..LHD201204

main89668-52230iKSP130..LHD201107

main89668-52240iKSP130..RHD201107

90119W0092

main90119-W0092

90153W0001

main90153-W0001

90178W0039

main90178-W0039

9017906274

main90179-06274

9043012221

main90430-12221

9155180614

main91551-80614

11 parts on this diagram · 6 diagrams in section
