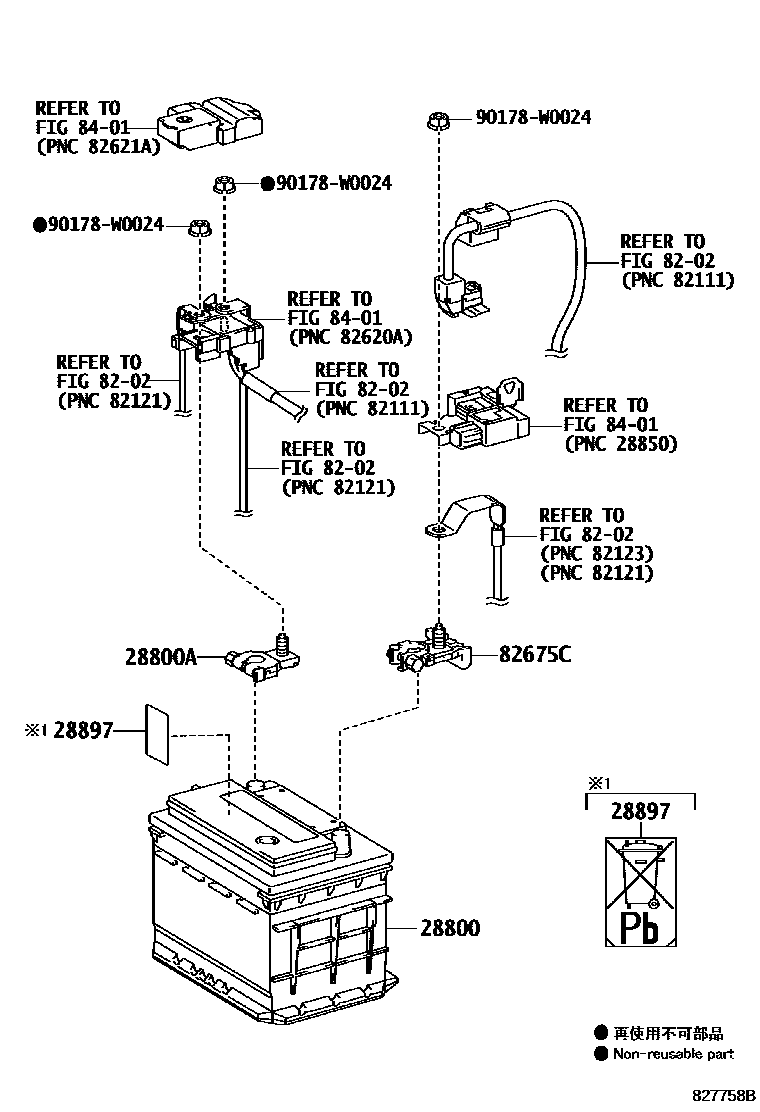

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-0D350i1NDTV..NLP130201107-201407

LN2

main28800-0Q060i1NRFE..NSP130..RHD;1NRFE..NSP130..LHD..CVFC201107-201407

LN1,BATTERY-H4

main28800-0Y060i1NRFE..NSP130..6F201107-201407

LN2

main28800-0Y080i1NRFE..NSP130..CVFC201107-201407

LN3,GERMANY SPEC&WITHOUT(STOP & START SYSTEM)

main28800-21181i1NZFXE..NHP130201204-201407

S34B20R

sub28800-21182

main28800-0N060i1NDTV..NLP130..LHD201204-201407

LN3,GERMANY SPEC&COLD SPEC & WITHOUT(REAR HEATER DUCT)

main28800-0T060i1KRFE..KSP130..LHD201209-201407

LN2,GERMANY SPEC

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1KRFE,1NDTV,1NRFE..KSP130,NLP130,NSP130201107

28897PLATE, BATTERY CAUTION

main28897-31040i1KRFE..KSP130..LHD201107-201303

RUSSIA SPEC&BATTERY-H4

8202

82675CTERMINAL, JUNCTION

main82675-52090iKSP130,NLP130,NSP130201107-201407

main82675-52160iNHP130201204-201407

8401

90178W0024

main90178-W0024

7 parts on this diagram · 5 diagrams in section
