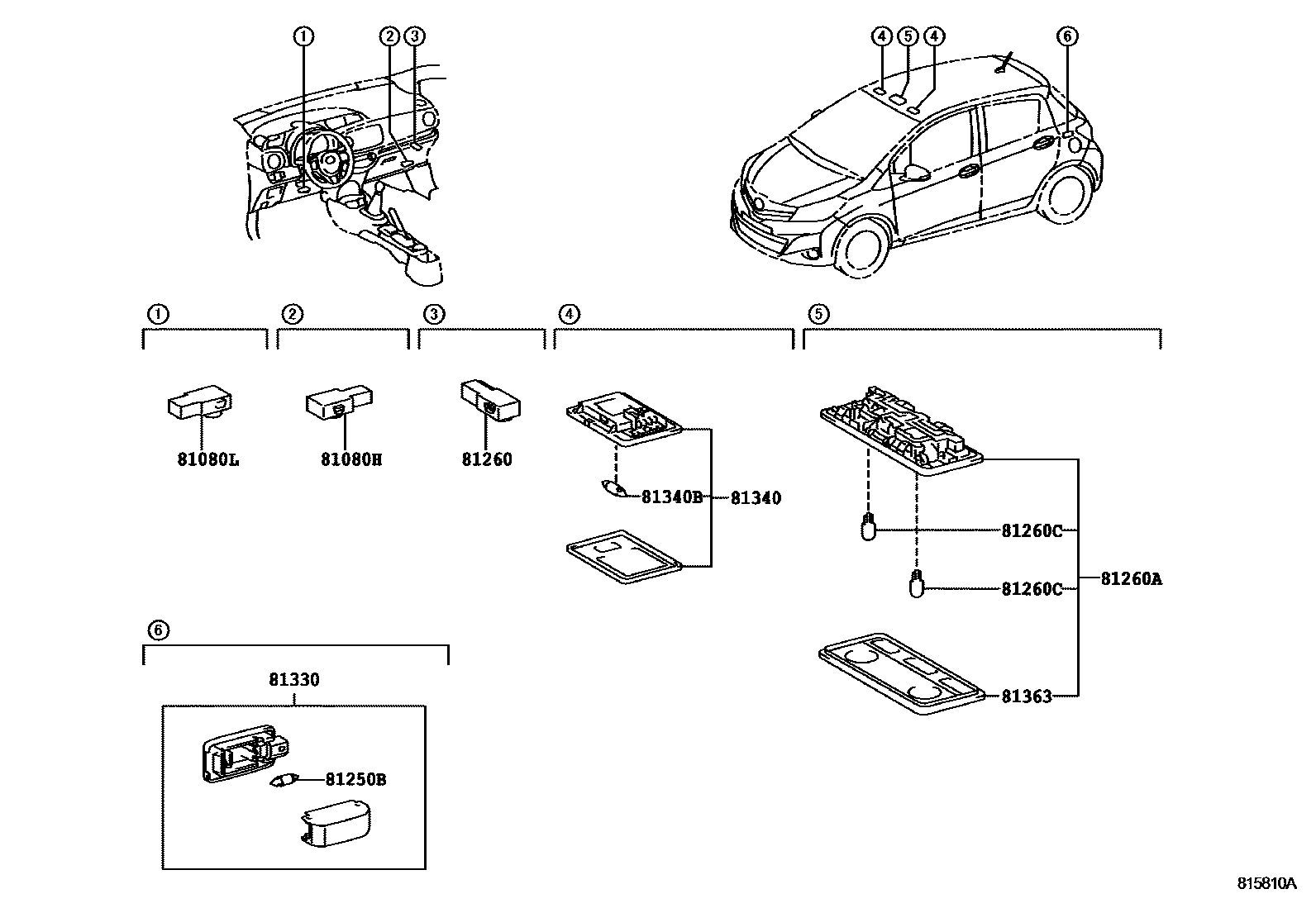

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

81250BBULB, ROOM LAMP, NO.2

main90981-WE003iKSP130,NHP130,NLP130,NSP130¥180201107

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-0D010iKSP130,NHP130,NLP130,NSP130..LOUNG201403

FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main81080-22040iKSP130,NHP130,NLP130,NSP130..LOUNG¥1,030201202-201402

FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main81080-48010iKSP130,NLP130,NSP130..ACTIV,STYLE¥860201107-201201

FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

81260ALAMP ASSY, MAP

main81260-0D070-B0iKSP130,NHP130,NLP130,NSP130201107-201407

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12010iKSP130,NHP130,NLP130,NSP130¥110201107

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-05050iKSP130,NHP130,NLP130,NSP130¥2,680201107-201407

sub81330-02060¥2,680

81340LAMP ASSY, VANITY

main81340-02030-B0iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201304-201407

LT.GRAY,TRIM1#

main81340-02030-B0iNHP130,NLP130,NSP130..LOUNG,STYLE201304-201407

MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1#

main81340-33140-B0iNHP130,NLP130,NSP130..LOUNG,STYLE201107-201303

MOON ROOF-WITH(PANORAMIC ROOF),LT.GRAY,TRIM1#

sub81340-33140¥2,240

main81340-33140-B0iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201107-201303

LT.GRAY,TRIM1#

sub81340-33140¥2,240

81340BBULB (FOR VANITY LAMP)

main90981-WE003iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE¥180201304

12V 5W

main90981-WE003iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE¥180201304

12V 5W,MOON ROOF-WITH(PANORAMIC ROOF)

main99132-13050iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE¥150201107-201304

12V 5W

main99132-13050iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE¥150201107-201304

12V 5W,MOON ROOF-WITH(PANORAMIC ROOF)

81363LENS, ROOM LAMP, OUTER

main81363-0D010iKSP130,NHP130,NLP130,NSP130201107

10 parts on this diagram · 2 diagrams in section
