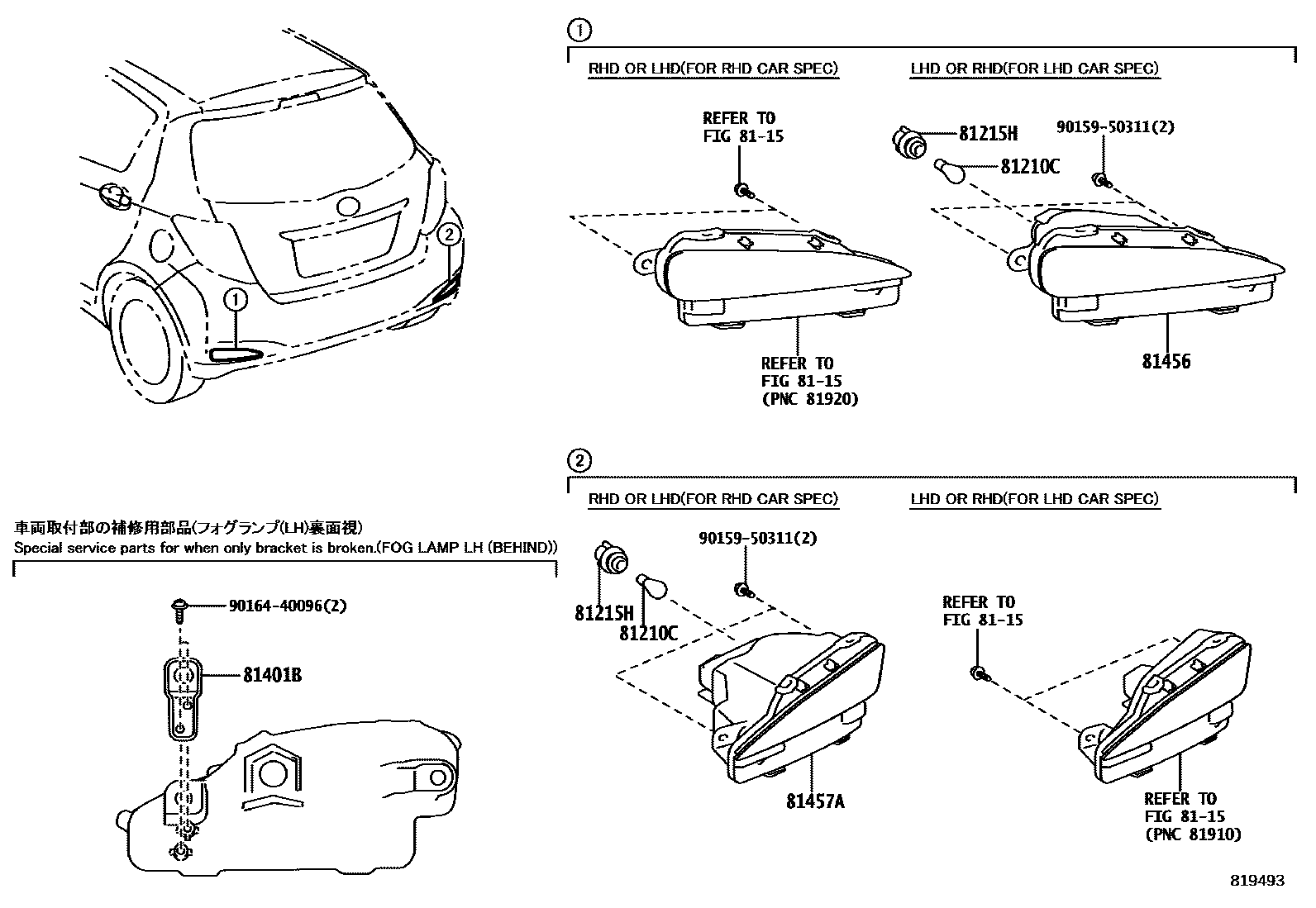

REAR FOG LAMP

8115

81210CBULB, REAR FOG LAMP

main90981-WC006iKSP130,NHP130,NLP130,NSP130201107

12V 21W

81215HSOCKET, REAR FOG LAMP

main90075-99092iKSP130,NHP130,NLP130,NSP130201107

81401BBRACKET SUB-ASSY, FOG LAMP

main81401-0D010iKSP130,NHP130,NLP130,NSP130201107

81456LENS & BODY, REAR FOG LAMP, LH

main81591-0D050iKSP130,NHP130,NLP130,NSP130..LHD201107

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC)

81457ALENS & BODY, REAR FOG LAMP, RH

main81581-0D070iKSP130,NHP130,NLP130,NSP130..RHD201107

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC)

9015950311

main90159-50311

9016440096

main90164-40096

8 parts on this diagram · 1 diagram in section
