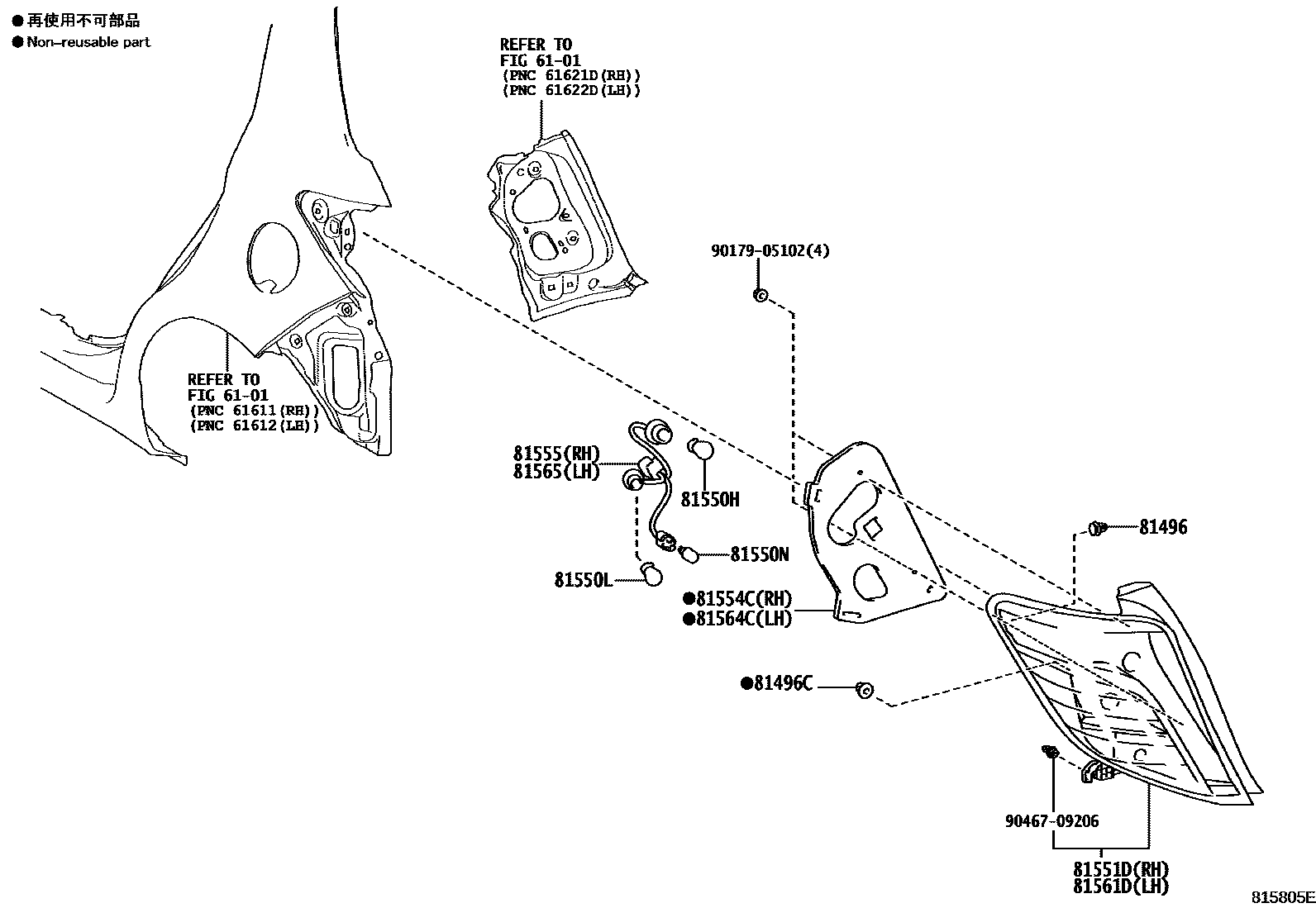

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
81550HBULB, TAIL & STOP LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
sub90981-11059
81551DLENS & BODY, REAR COMBINATION LAMP, RH
TREND PACKAGE (WITHOUT DECO LINE)&TIRE & DISC WHEEL-175/65R15, 5J, ALUMINUM
81554CPACKING, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
TREND PACKAGE (WITHOUT DECO LINE)&TIRE & DISC WHEEL-175/65R15, 5J, ALUMINUM
81564CPACKING, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905102
main90179-05102
9046709206
main90467-09206
14 parts on this diagram · 2 diagrams in section
