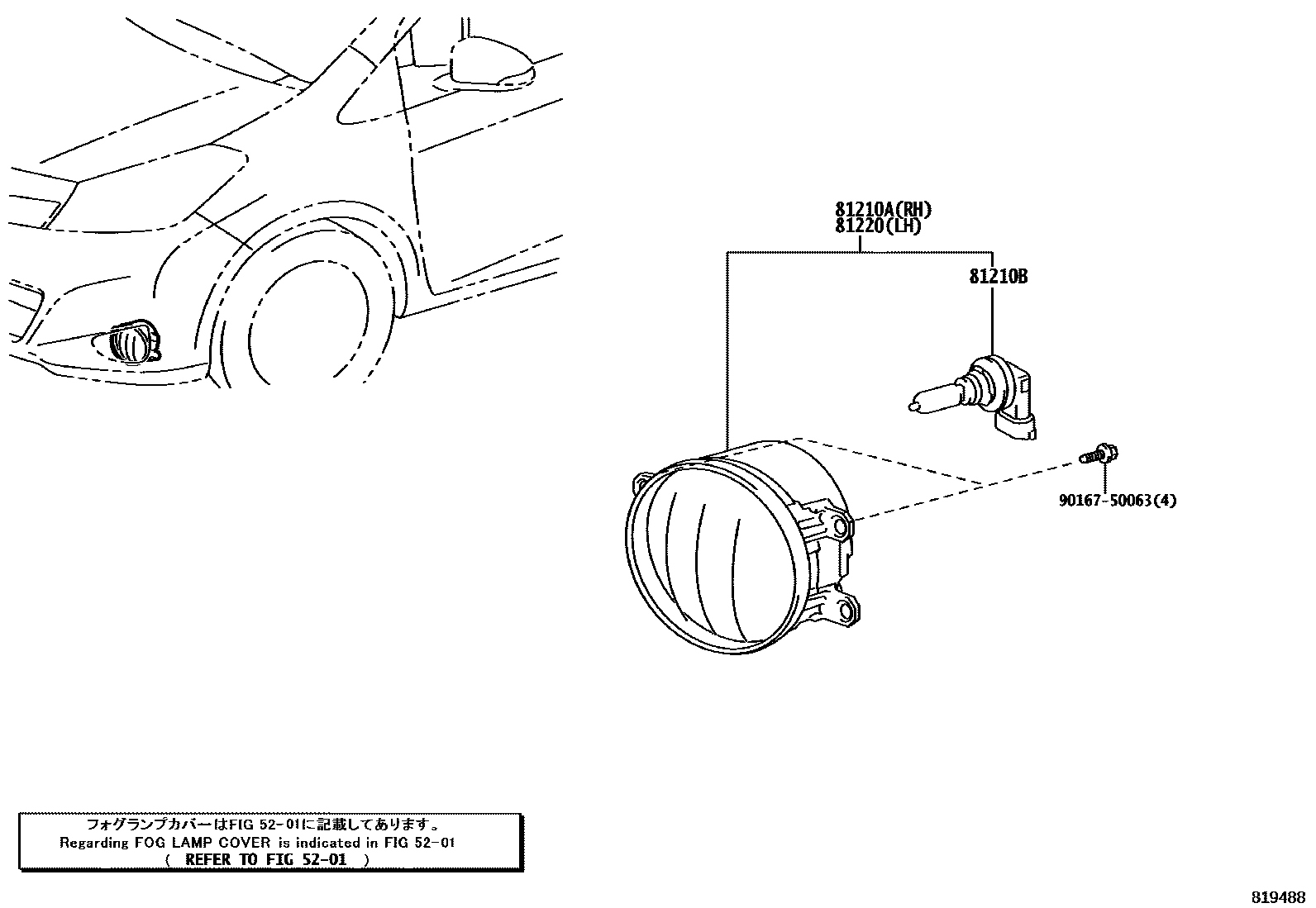

FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-02110iKSP130,NHP130,NLP130,NSP130..ACTIV,STD201203-201407

FRONT FOG & DRIVING LAMP-WITH

main81210-02110iKSP130,NHP130,NLP130,NSP130..ACTIV,STD201203-201407

FRONT FOG & DRIVING LAMP-WITHOUT

main81210-02110iKSP130,NLP130,NSP130..5D..(ACTIV,STD)201301-201407

FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

main81210-0D042iKSP130,NLP130,NSP130..LOUNG201107-201203

FRONT FOG & DRIVING LAMP-WITH

main81210-0D042iKSP130,NLP130,NSP130..ACTIV,STD201107-201203

FRONT FOG & DRIVING LAMP-WITHOUT

81210BBULB, FOG LAMP

main90981-13075iKSP130,NLP130,NSP130..LOUNG,STYLE201107-201203

12V 55W,HALOGEN,PHILIPS

main90981-13075iKSP130,NLP130,NSP130..LOUNG,STYLE201107-201203

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,PHILIPS

main90981-13081iKSP130,NLP130,NSP130..ACTIV,STD201107-201203

12V 55W,HALOGEN,OSRAM

main90981-13081iKSP130,NLP130,NSP130..LOUNG201107-201203

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITHOUT,OSRAM

main90981-13081iKSP130,NLP130,NSP130..LOUNG201107-201203

12V 55W,HALOGEN,FRONT FOG & DRIVING LAMP-WITH,OSRAM

main90981-WD016iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201203-201407

12V 19W

main90981-WD016iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201203-201407

12V 19W,FRONT FOG & DRIVING LAMP-WITH

main90981-WD016iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201203-201407

12V 19W,FRONT FOG & DRIVING LAMP-WITHOUT

main90981-WD016iKSP130,NLP130,NSP130..5D..(ACTIV,STD)201301-201407

12V 19W,FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

81220LAMP ASSY, FOG, LH

main81220-02110iKSP130..3D..(ACTIV,STD);NLP130,NSP130..3D..ACTIV;NLP130,NSP130..LHD..3D..STD201301-201407

FRONT FOG & DRIVING LAMP-WITH(PLATING COVER)

main81220-02110iKSP130,NHP130,NLP130,NSP130..LOUNG,STYLE201203-201407

FRONT FOG & DRIVING LAMP-WITHOUT

main81220-02110iKSP130,NHP130,NLP130,NSP130..ACTIV,STD201203-201407

FRONT FOG & DRIVING LAMP-WITH

main81220-0D042iKSP130,NLP130,NSP130..LOUNG,STYLE201107-201203

FRONT FOG & DRIVING LAMP-WITHOUT

main81220-0D042iKSP130,NLP130,NSP130..ACTIV,STD201107-201203

FRONT FOG & DRIVING LAMP-WITH

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
