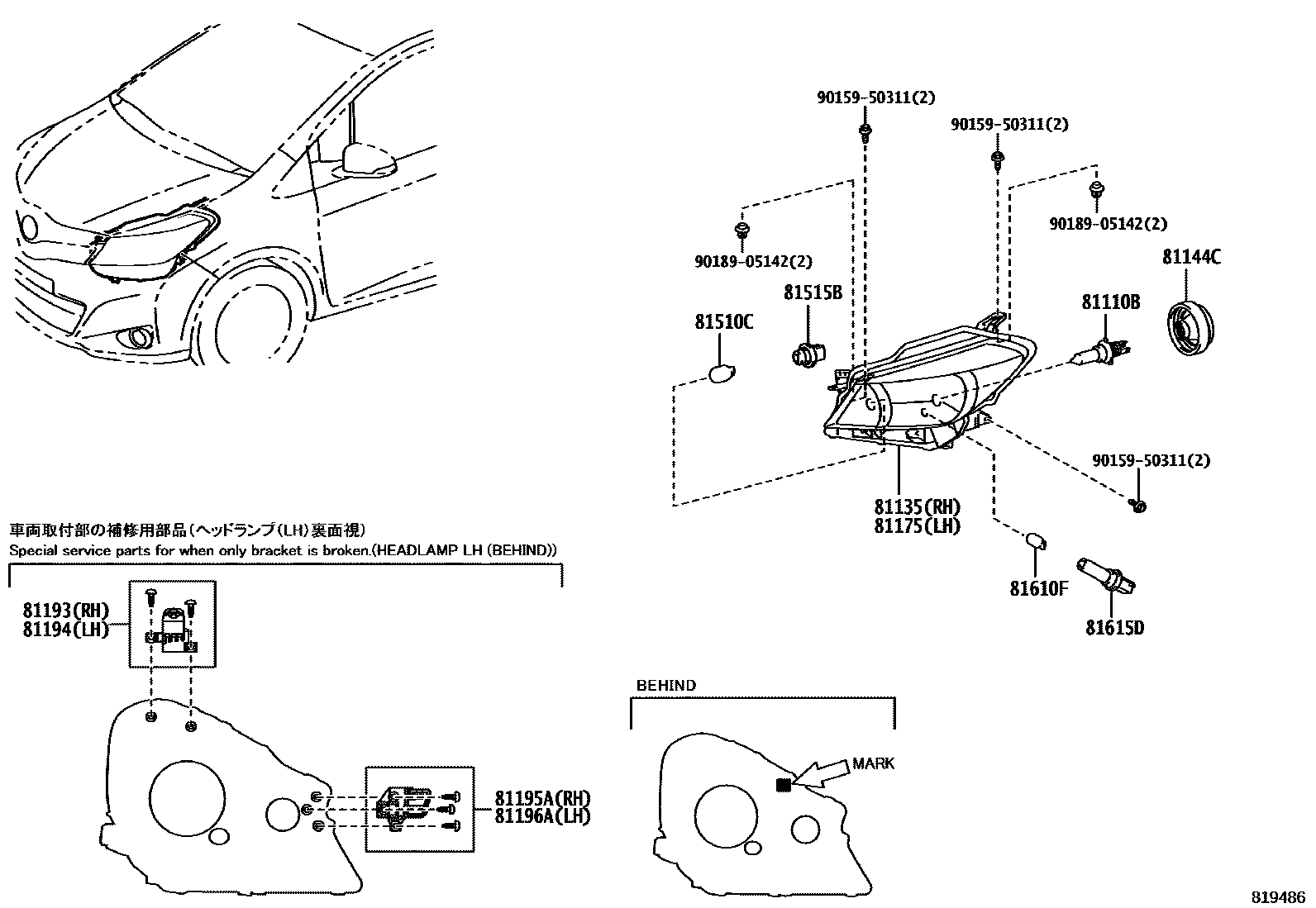

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iKSP130,NLP130,NSP130201107-201407

12V 60/55W,HALOGEN

main90981-13091iNHP130201204-201407

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0D450iKSP130,NLP130,NSP130..LHD..STD201107-201111

MARK = E

main81130-0D450iKSP130,NLP130,NSP130..RHD..STD201107-201111

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = E

main81130-0D460iKSP130,NLP130,NSP130..LHD..STD201107-201111

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = U

main81130-0D460iKSP130,NLP130,NSP130..RHD..STD201107-201111

MARK = U

main81130-0D470iNLP130,NSP130..LHD..STYLE201107

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = SE

main81130-0D470iNLP130,NSP130..RHD..STYLE201107

MARK = SE

main81130-0D480iNLP130,NSP130..LHD..STYLE201107

MARK = SU

main81130-0D480iNLP130,NSP130..RHD..STYLE201107

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = SU

main81130-0D500iNHP130..RHD201204

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC)

main81130-0D510iNHP130..LHD201204

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC)

main81130-0D710iKSP130,NLP130,NSP130..LHD..STD201111

MARK = AE

main81130-0D710iKSP130,NLP130,NSP130..LHD..STD201111

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = AE

main81130-0D720iKSP130,NLP130,NSP130..LHD..STD201111

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = AU

main81130-0D720iKSP130,NLP130,NSP130..LHD..STD201111

MARK = AU

81144CCOVER, HEADLAMP SOCKET

main90075-65002iKSP130,NLP130,NSP130201107

81175UNIT ASSY, HEADLAMP, LH

main81170-0D450iKSP130,NLP130,NSP130..LHD..STD201107-201111

MARK = E

main81170-0D450iKSP130,NLP130,NSP130..LHD..STD201107-201111

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = E

main81170-0D460iKSP130,NLP130,NSP130..LHD..(ACTIV,LOUNG)201107-201111

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = U

main81170-0D460iKSP130,NLP130,NSP130..RHD..STD201107-201111

MARK = U

main81170-0D470iNLP130,NSP130..LHD..STYLE201107

MARK = SE

main81170-0D470iNLP130,NSP130..LHD..STYLE201107

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = SE

main81170-0D480iNLP130,NSP130..RHD..STYLE201107

MARK = SU

main81170-0D480iNLP130,NSP130..RHD..STYLE201107

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = SU

main81170-0D500iNHP130..LHD201204

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC)

main81170-0D510iNHP130..LHD201204

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC)

main81170-0D710iKSP130,NLP130,NSP130..RHD..STD201111

MARK = AE

main81170-0D710iKSP130,NLP130,NSP130..RHD..STD201111

HEAD LAMP AIMING-RH AIMING(FOR LHD CAR SPEC),MARK = AE

main81170-0D720iKSP130,NLP130,NSP130..LHD..STD201111

HEAD LAMP AIMING-LH AIMING(FOR RHD CAR SPEC),MARK = AU

main81170-0D720iKSP130,NLP130,NSP130..RHD..STD201111

MARK = AU

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0D080iNHP130201204

main81193-52200iKSP130,NLP130,NSP130201107

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0D080iNHP130201204

main81194-52200iKSP130,NLP130,NSP130201107

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-0D070iNHP130201204

main81195-52160iKSP130,NLP130,NSP130201107

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-0D070iNHP130201204

main81196-52160iKSP130,NLP130,NSP130201107

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF005iKSP130,NHP130,NLP130,NSP130201107

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60069iKSP130,NHP130,NLP130,NSP130201107

81610FBULB(FOR CLEARANCE LAMP)

main90981-WB006iKSP130,NLP130,NSP130201107

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iKSP130,NLP130,NSP130201107

9015950311

main90159-50311

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
