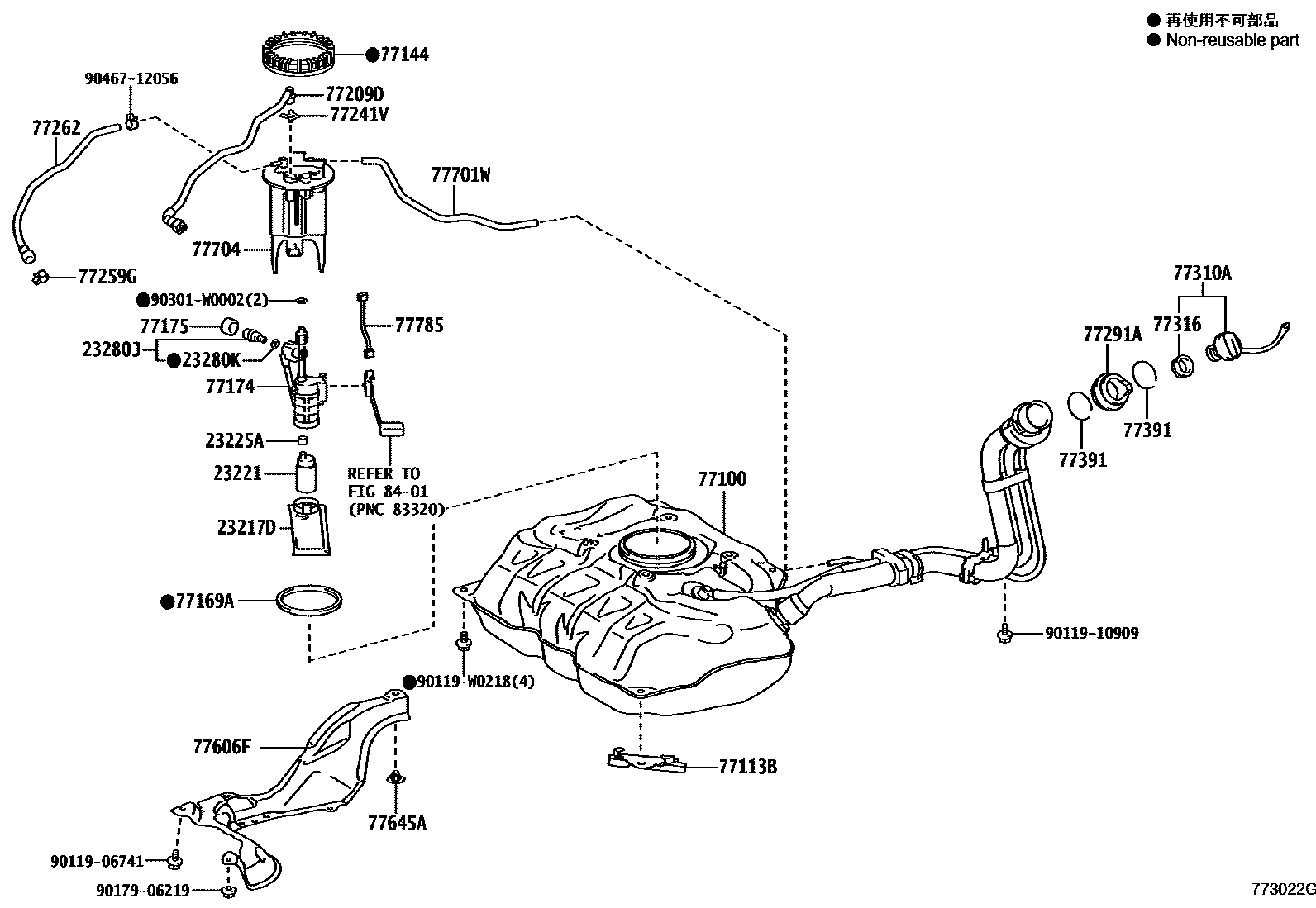

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER 0008 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0Q030i1KRFE,1NRFE..KSP130,NSP130201107

23221PUMP, FUEL

main23221-0Q050i1KRFE,1NRFE..KSP130,NSP130201107-201205

sub23221-0Q051

sub77785-0D071

main23221-0Q051i1KRFE,1NRFE..KSP130,NSP130201205

23225ASPACER, FUEL PUMP

main23225-0T010i1KRFE,1NZFXE,1NRFE..KSP130,NHP130,NSP130201107

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NZFXE..NHP130201204

main23280-22010i1KRFE,1NRFE..KSP130,NSP130201107

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFXE..NHP130201204

NO.1

main90301-07020i1KRFE,1NRFE..KSP130,NSP130201107

main90301-15024i1NZFXE..NHP130201204

NO.2

77100TANK ASSY, FUEL

main77001-0D160iKSP130,NSP130201107

sub77001-0D470

main77001-0D180iNLP130201107

main77001-0D200iNHP130201204

sub77001-0D480

77113BPLATE, FUEL TANK SIDE

main77113-0D050iKSP130,NLP130,NSP130201403

main77113-52080iKSP130,NLP130,NSP130201107-201402

77144RETAINER, FUEL PUMP GAUGE

main77144-0D050iKSP130,NLP130,NSP130201107-201203

main77144-0D070iKSP130,NHP130,NLP130,NSP130201203

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D060iKSP130,NLP130,NSP130201107-201203

main77169-0D070iKSP130,NHP130,NLP130,NSP130201203

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D050iNHP130201204

main77174-0D070iKSP130,NSP130201107

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D030iKSP130,NSP130201107

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D100iKSP130,NSP130201107

main77209-0D110iNLP130201107

main77209-0D120iNHP130201204

77241VCLIP, TUBE JOINT

main77241-32060iKSP130,NHP130,NSP130201107

77259GCLIP, FUEL HOSE

main90466-13004iKSP130,NHP130,NSP130201204

main96132-51300iKSP130,NSP130201107-201204

77262TUBE, FUEL EMISSION, NO.2

main77028-0D090iKSP130,NSP130201107

main77028-0D110iNHP130201204

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D130iKSP130,NHP130,NLP130,NSP130201107

77310ACAP ASSY, FUEL TANK

main77300-20020iNLP130201107

main77300-52030iKSP130,NHP130,NSP130201107

77316GASKET, FUEL TANK CAP

main77316-52040iKSP130,NHP130,NLP130,NSP130201107

77391RING, FUEL INLET BOX

main77391-12020iKSP130,NHP130,NLP130,NSP130201107

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-0D050iKSP130,NLP130,NSP130201107-201407

main77606-0D070iNHP130201204-201407

77645ARETAINER, FUEL TANK PROTECTOR

main77645-52020iKSP130,NHP130,NLP130,NSP130201107-201303

main77645-52040iKSP130,NHP130,NLP130,NSP130201304

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D060iKSP130,NSP130201107

main77701-0D070iNHP130201204

77704CANISTER SUB-ASSY, CHARCOAL

main77704-0D070iKSP130,NSP130201107

77785HARNESS, FUEL PUMP

main77785-0D030iNHP130201204-201205

main77785-0D070iKSP130,NSP130201107-201205

main77785-0D071iKSP130,NSP130201205

main77785-0D080iNHP130201205

8401

9011906741

main90119-06741

9011910909

main90119-10909

90119W0218

main90119-W0218

9017906219

main90179-06219

90301W0002

main90301-W0002

9046712056

main90467-12056
