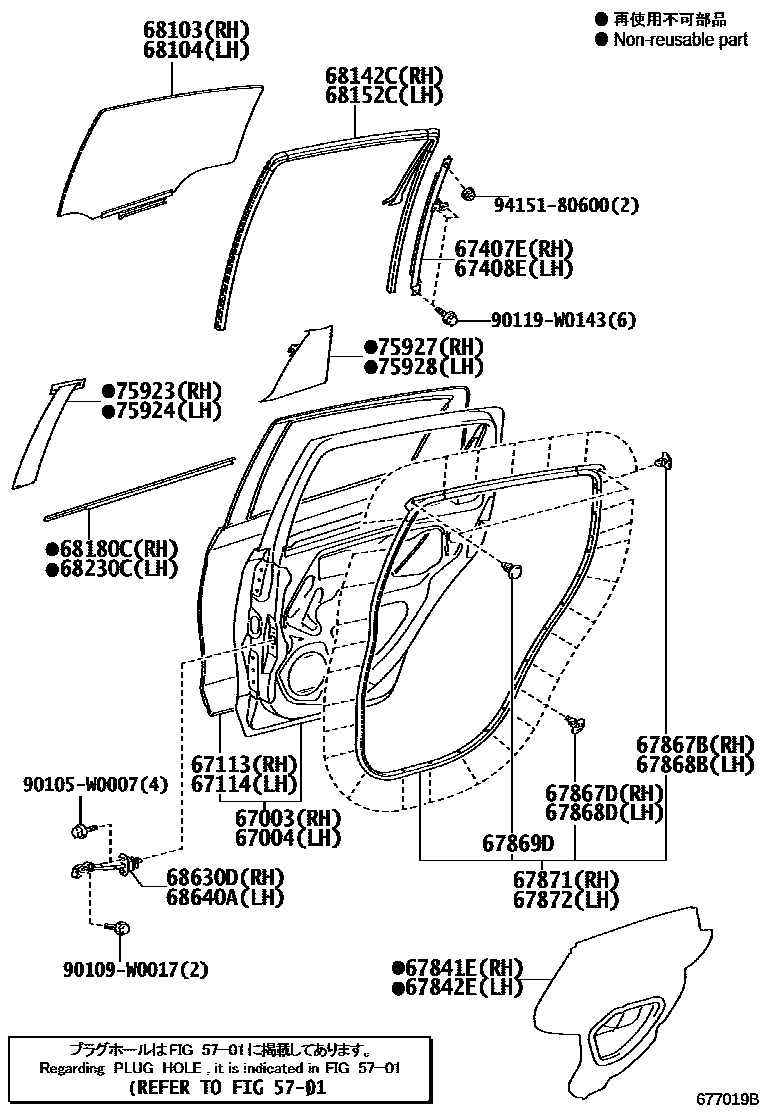

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D190iKSP130,NHP130,NLP130,NSP130..5D201107

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D210iKSP130,NHP130,NLP130,NSP130..5D201107

67113PANEL, REAR DOOR, OUTER RH

main67113-52150iKSP130,NHP130,NLP130,NSP130..5D¥19,000201107

67114PANEL, REAR DOOR, OUTER LH

main67114-52210iKSP130,NHP130,NLP130,NSP130..5D¥19,000201107

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-52170iKSP130,NHP130,NLP130,NSP130..5D¥2,380201107

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-52170iKSP130,NHP130,NLP130,NSP130..5D¥2,380201107

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0D120iKSP130,NHP130,NLP130,NSP130..5D201107

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0D120iKSP130,NHP130,NLP130,NSP130..5D201107

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52020iKSP130,NHP130,NLP130,NSP130..5D¥100201107

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iKSP130,NHP130,NLP130,NSP130..5D¥100201107

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67867-52010iKSP130,NHP130,NLP130,NSP130..5D¥100201107

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iKSP130,NHP130,NLP130,NSP130..5D¥100201107

67869DCLIP, DOOR WEATHERSTRIP

main90467-06084iKSP130,NHP130,NLP130,NSP130..5D¥80201107

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D090iKSP130,NHP130,NLP130,NSP130..5D201107

sub67871-0D091

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D090iKSP130,NHP130,NLP130,NSP130..5D201107

sub67872-0D091

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0D200iKSP130,NHP130,NLP130,NSP130..5D201107-201407

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0D200iKSP130,NHP130,NLP130,NSP130..5D201107-201407

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-0D120iKSP130,NHP130,NLP130,NSP130..5D201107

68152CRUN, REAR DOOR GLASS, LH

main68152-0D100iKSP130,NHP130,NLP130,NSP130..5D201107

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D130iKSP130,NHP130,NLP130,NSP130..5D¥2,140201107

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D130iKSP130,NHP130,NLP130,NSP130..5D201107

68630DCHECK ASSY, REAR DOOR, RH

main68630-52120iKSP130,NHP130,NLP130,NSP130..5D201107

68640ACHECK ASSY, REAR DOOR, LH

main68630-52120iKSP130,NHP130,NLP130,NSP130..5D201107

75923TAPE, BLACK OUT, NO.2 RH

main75923-0D060iKSP130,NHP130,NLP130,NSP130..5D201107

75924TAPE, BLACK OUT, NO.2 LH

main75924-0D060iKSP130,NHP130,NLP130,NSP130..5D201107

75927TAPE, BLACK OUT, NO.4 RH

main75927-0D020

75928TAPE, BLACK OUT, NO.4 LH

main75928-0D020

90105W0007

main90105-W0007¥100

90109W0017

main90109-W0017¥60

90119W0143

main90119-W0143

9415180600

main94151-80600¥60

32 parts on this diagram · 2 diagrams in section
