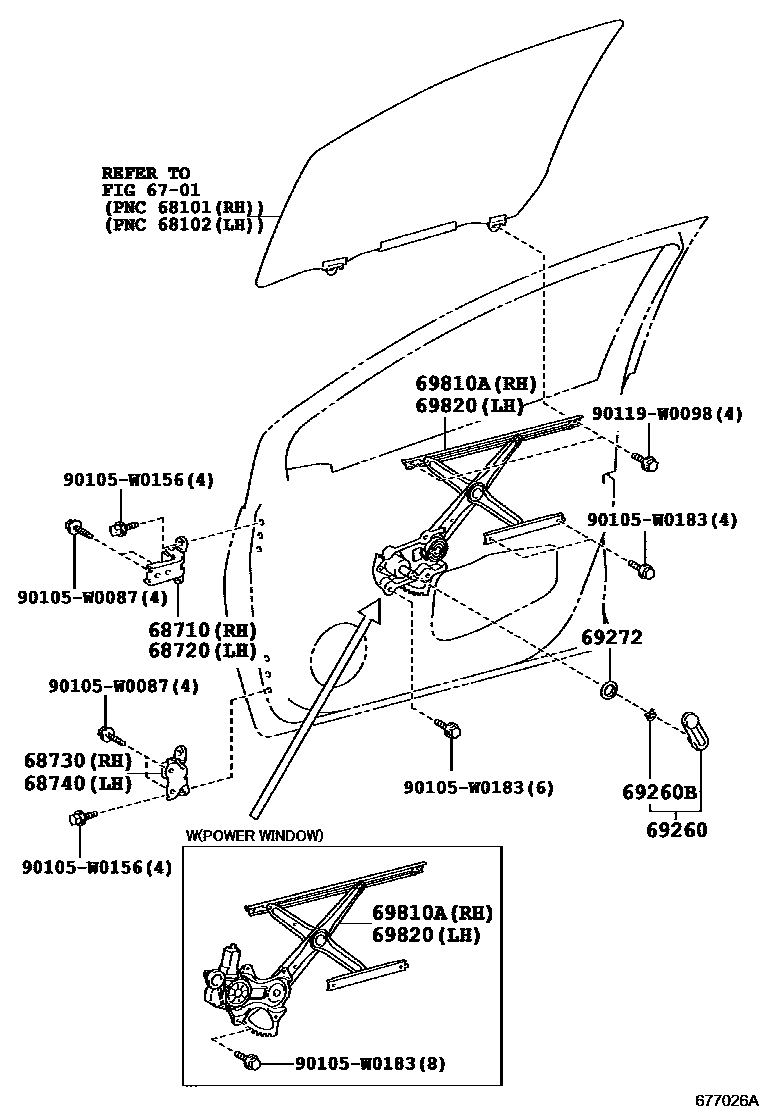

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D090iKSP130,NHP130,NLP130,NSP130201107-201206

sub68710-0D091

main68710-0D091iKSP130,NHP130,NLP130,NSP130201207-201407

sub68710-02060¥3,240

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D090iKSP130,NHP130,NLP130,NSP130201107-201206

sub68720-0D091

main68720-0D091iKSP130,NHP130,NLP130,NSP130201207

sub68720-02060¥3,240

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D070iKSP130,NHP130,NLP130,NSP130201107-201206

sub68730-0D071

main68730-0D071iKSP130,NHP130,NLP130,NSP130201207

sub68730-02050¥2,950

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D070iKSP130,NHP130,NLP130,NSP130201107-201206

sub68740-0D071

main68740-0D071iKSP130,NHP130,NLP130,NSP130201207

sub68740-02050¥2,950

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02020¥1,600

main90080-52100

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-0D030

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D290iKSP130,NHP130,NLP130,NSP130..RHD201107-201403

main69810-0D300iKSP130,NHP130,NLP130,NSP130..LHD201107

main69810-0D430iKSP130,NHP130,NLP130,NSP130..RHD¥24,200201404

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D300iKSP130,NHP130,NLP130,NSP130..RHD¥24,200201107

main69820-0D310iKSP130,NHP130,NLP130,NSP130..LHD201107-201403

sub69820-0D440

main69820-0D440iKSP130,NHP130,NLP130,NSP130..LHD201404

90105W0087

main90105-W0087¥80

90105W0156

main90105-W0156¥80

90105W0183

main90105-W0183¥60

90119W0098

main90119-W0098¥60

14 parts on this diagram · 1 diagram in section
