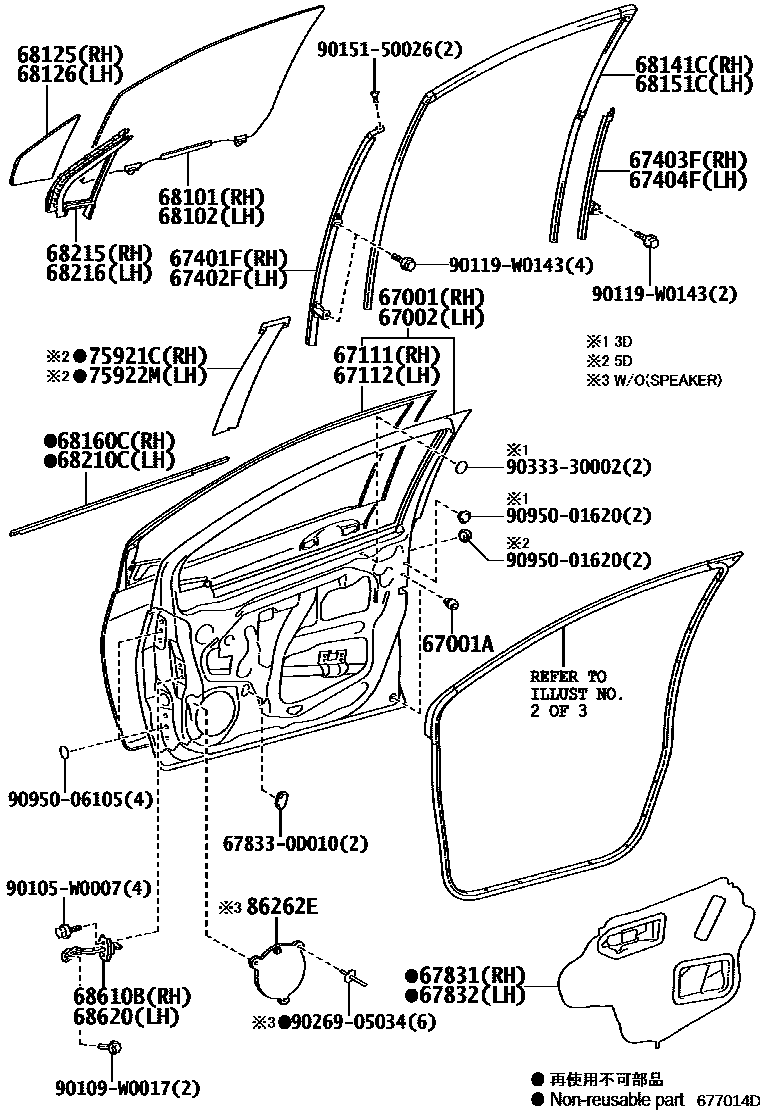

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
AUDIO-DISPLAY 8SPEAKER BLUETOOTH
67832COVER, FRONT DOOR SERVICE HOLE, LH
AUDIO-DISPLAY 8SPEAKER BLUETOOTH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68125GLASS, FRONT DOOR FIX WINDOW, RH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68126GLASS, FRONT DOOR FIX WINDOW, LH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
BLACK OUT TAPE-WITH(CENTER PILLAR & C PILLAR)
75922MTAPE, BLACK OUT, NO.1 LH
BLACK OUT TAPE-WITH(CENTER PILLAR & C PILLAR)
86262ECOVER, SPEAKER, FRONT
AUDIO-LESS(AUDIO & SPEAKER)
678330D010COVER, REAR DOOR SERVICE HOLE
main67833-0D010
90105W0007
main90105-W0007
90109W0017
main90109-W0017
90119W0143
main90119-W0143
9015150026
main90151-50026
9026905034
main90269-05034
9033330002
main90333-30002
9095001620
main90950-01620
9095006105
main90950-06105
35 parts on this diagram · 3 diagrams in section
