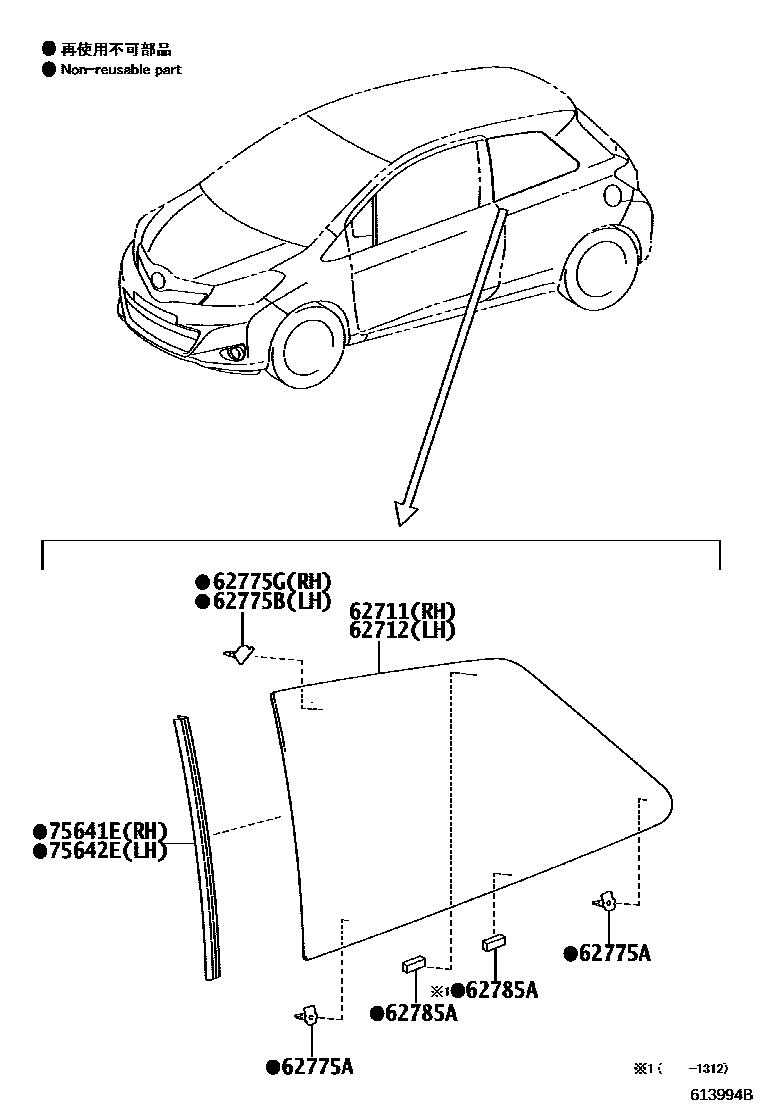

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-0D040iKSP130,NLP130,NSP130..3D201107

*TEM,T=3.1,GREEN

62712GLASS, QUARTER WINDOW, LH

main62712-0D040iKSP130,NLP130,NSP130..3D201107

*TEM,T=3.1,GREEN

62775ACLIP, QUARTER WINDOW

main62775-0D030iKSP130,NLP130,NSP130..3D201107

62775BCLIP, QUARTER WINDOW, LH

main62775-0D020iKSP130,NLP130,NSP130..3D201107

62775GCLIP, QUARTER WINDOW, RH

main62775-0D010iKSP130,NLP130,NSP130..3D201107

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iKSP130,NLP130,NSP130..3D201107-201312

75641EMOULDING, QUARTER WINDOW, RH

main75641-0D020iKSP130,NLP130,NSP130..3D201107

75642EMOULDING, QUARTER WINDOW, LH

main75641-0D020iKSP130,NLP130,NSP130..3D201107

8 parts on this diagram · 1 diagram in section
