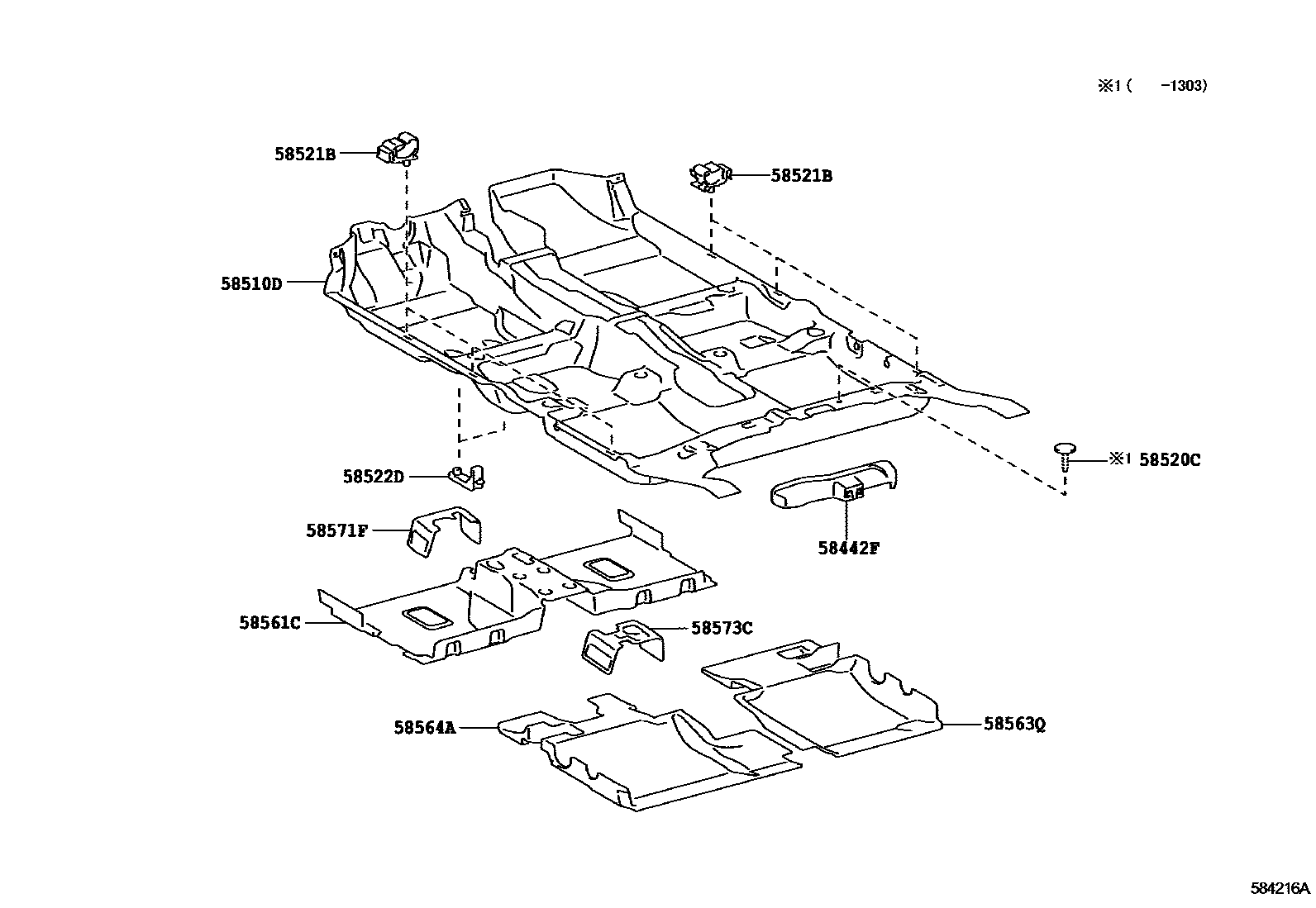

MAT & CARPET
58442FCOVER, JACK
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
DARK GRAY,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM1#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58561CSILENCER, FRONT FLOOR, NO.1
COLD SPEC & WITH(REAR HEATER DUCT)
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58571FPAD, FRONT FLOOR, FRONT
58573CPAD, FRONT FLOOR CENTER
10 parts on this diagram · 2 diagrams in section
