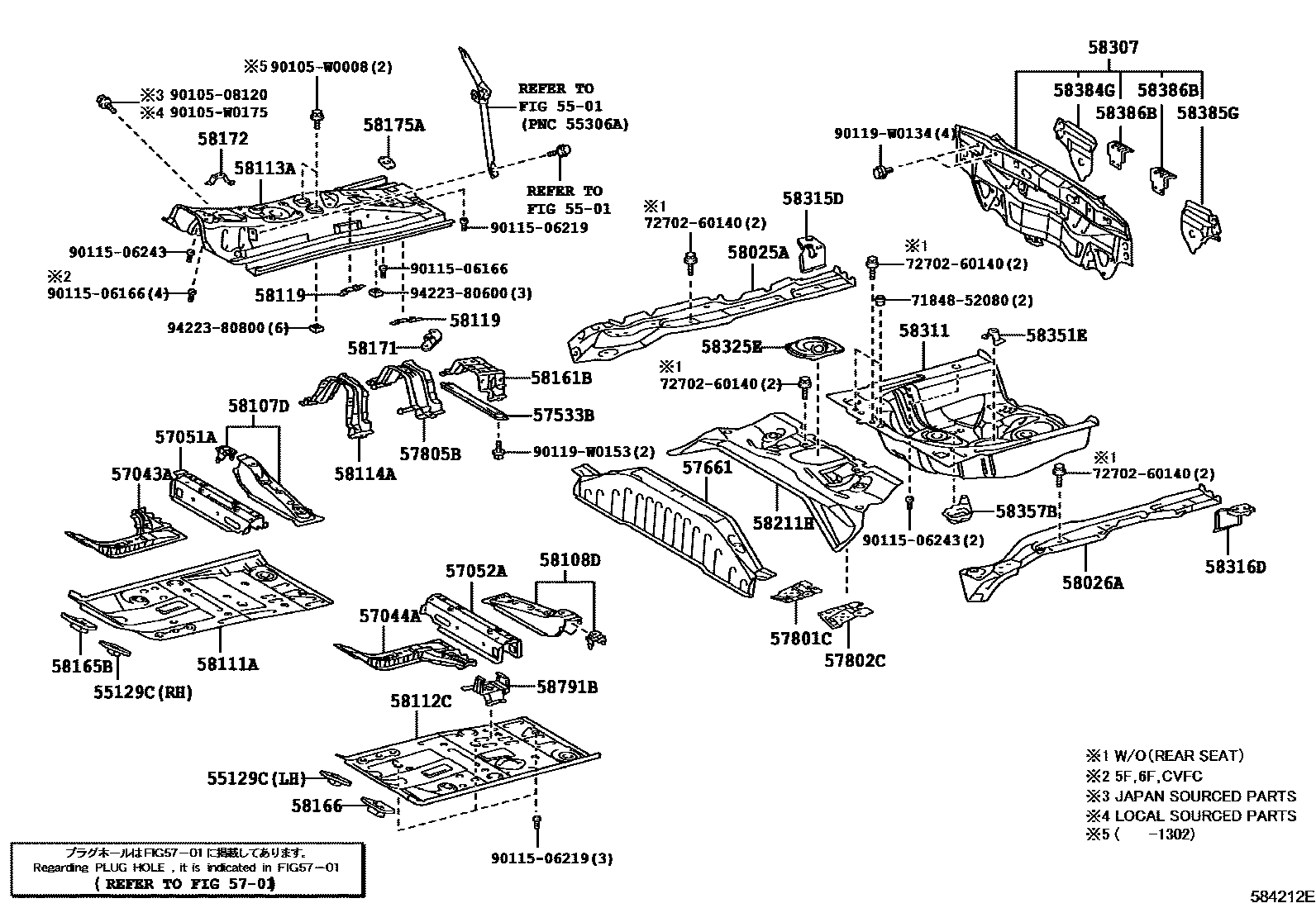

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

5501

55129CCOVER, DASH PANEL HOLE

main55129-0D100iKSP130,NHP130,NLP130,NSP130201107

RH

main55139-0D020iKSP130,NHP130,NLP130,NSP130201107

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D011iKSP130,NHP130,NLP130,NSP130201107-201306

main57043-0D012iKSP130,NHP130,NLP130,NSP130201307

sub57043-0D013

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D041iKSP130,NHP130,NLP130,NSP130201107-201306

main57044-0D042iKSP130,NHP130,NLP130,NSP130201307

sub57044-0D043

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52020iKSP130,NHP130,NLP130,NSP130201107

sub57051-52030

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52020iKSP130,NHP130,NLP130,NSP130201107

57533BBRACE, FRONT FLOOR, CENTER

main57533-0D020iKSP130,NHP130,NLP130,NSP130201203

main57533-52011iKSP130,NLP130,NSP130201107-201202

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-0D050iKSP130,NLP130,NSP130201107

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D060iKSP130,NLP130,NSP130201107

sub57801-52130

main57801-0D080iNHP130201204

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D050iKSP130,NLP130,NSP130201107

sub57802-52130

main57802-0D070iNHP130201204

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D090iKSP130,NHP130,NLP130,NSP130201107

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52022iKSP130,NHP130,NLP130,NSP130201107

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52022iKSP130,NHP130,NLP130,NSP130201107

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D050iKSP130,NHP130,NLP130,NSP130201107-201306

main58107-0D051iKSP130,NHP130,NLP130,NSP130201307

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D030iKSP130,NHP130,NLP130,NSP130201107-201306

main58108-0D031iKSP130,NHP130,NLP130,NSP130201307

58111APAN, FRONT FLOOR, RH

main58111-52160iKSP130,NHP130,NLP130,NSP130201107-201308

main58111-52270iKSP130,NHP130,NLP130,NSP130201308

sub58111-52271

58112CPAN, FRONT FLOOR, LH

main58112-0D905iNHP130201204-201308

main58112-0D908iNHP130201308

main58112-52901iKSP130,NLP130,NSP130201107-201307

main58112-52918iKSP130,NLP130,NSP130201308

sub58112-52922

58113APANEL, FRONT FLOOR, CENTER

main58113-52906iKSP130,NHP130,NLP130,NSP130..5F,6F,CVFC201107-201308

main58113-52907iNLP130..6FS201107-201308

main58113-52925iKSP130,NHP130,NLP130,NSP130..5F,6F,CVFC201308

main58113-52926iNLP130..6FS201308

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D100iKSP130,NHP130,NLP130,NSP130201107-201407

sub58114-0D101

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-0D020×2iKSP130,NHP130,NLP130,NSP130201304

sub58119-52040

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D080iKSP130,NHP130,NLP130,NSP130201107

58165BCOVER, FRONT FLOOR, RH

main58165-0D020iKSP130,NHP130,NLP130,NSP130201107

58166COVER, FRONT FLOOR, LH

main58166-0D020iKSP130,NHP130,NLP130,NSP130201107

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D070iKSP130,NHP130,NLP130,NSP130201107

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iKSP130,NHP130,NLP130,NSP130201107

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iKSP130,NHP130,NLP130,NSP130201107

58211HPAN, CENTER FLOOR

main58211-0D080iKSP130,NLP130,NSP130201107

main58211-0D902iNHP130201204

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D140iKSP130,NHP130,NLP130,NSP130201107

58311PAN, REAR FLOOR

main58311-52110iKSP130,NHP130,NLP130,NSP130201107

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D040iKSP130,NHP130,NLP130,NSP130201107

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D040iKSP130,NHP130,NLP130,NSP130201107

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D060iNHP130201204

main58325-0D130iKSP130,NLP130,NSP130201211

main58325-52050iKSP130,NLP130,NSP130201107-201210

58351EBRACKET, SPARE WHEEL CLAMP

main58351-52070iKSP130,NHP130,NLP130,NSP130201107

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52031iKSP130,NHP130,NLP130,NSP130201107

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D060iKSP130,NHP130,NLP130,NSP130201107

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D080iKSP130,NHP130,NLP130,NSP130201107

sub58385-52100

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D040×2iKSP130,NHP130,NLP130,NSP130201107

58791BCARRIER, JACK

main58791-0D110iKSP130,NHP130,NLP130,NSP130201107

7184852080ORNAMENT, FRONT SEAT BRACKET, LH

main71848-52080

7270260140BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-60140

9010508120

main90105-08120

90105W0008

main90105-W0008

90105W0175

main90105-W0175

9011506166

main90115-06166

9011506219

main90115-06219

9011506243

main90115-06243

90119W0134

main90119-W0134

90119W0153

main90119-W0153

9422380600

main94223-80600

9422380800

main94223-80800

51 parts on this diagram · 4 diagrams in section
