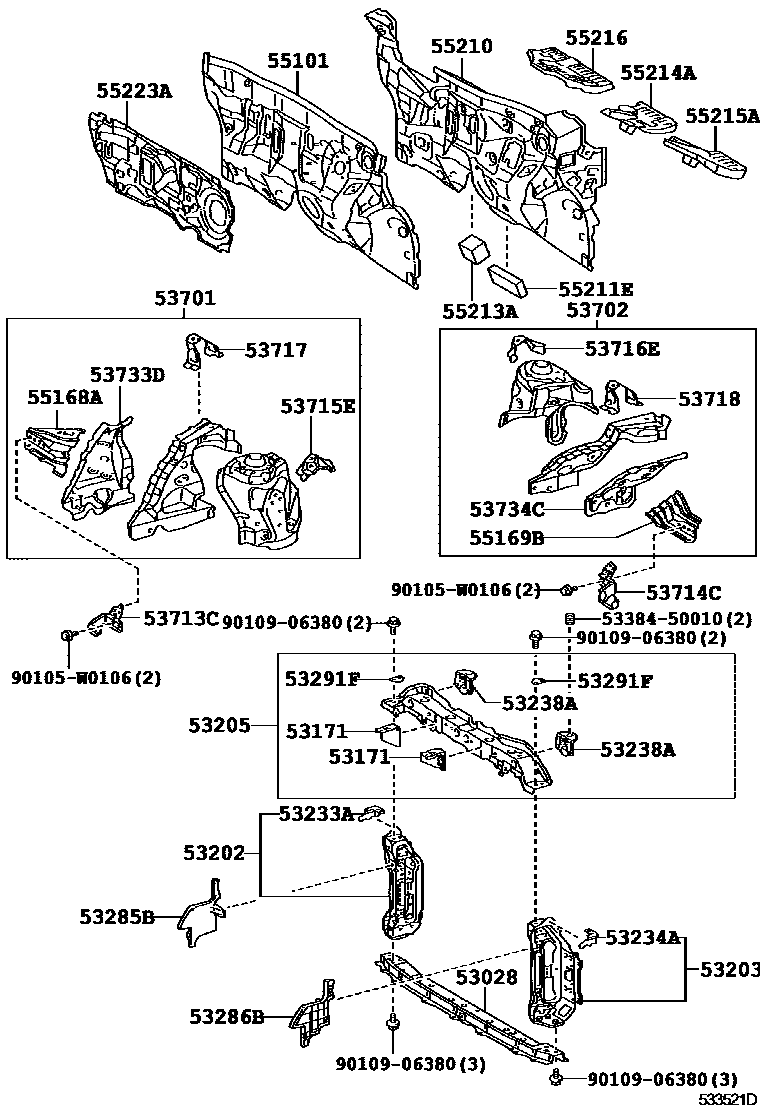

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D031iKSP130,NHP130,NLP130,NSP130¥9,800201107

53171RETAINER, RADIATOR SUPPORT

main53171-0D040iKSP130,NHP130,NLP130,NSP130201107

RH

main53171-0D050iKSP130,NHP130,NLP130,NSP130201107

LH

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0D906iKSP130,NHP130,NLP130,NSP130¥7,700201107

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0D906iKSP130,NHP130,NLP130,NSP130¥7,700201107

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0D904iKSP130,NHP130,NLP130,NSP130201107

53233ABRACKET, HEADLAMP, NO.1 RH

main53233-0D050iKSP130,NHP130,NLP130,NSP130201107

53234ABRACKET, HEADLAMP, NO.1 LH

main53234-0D050iKSP130,NHP130,NLP130,NSP130201107

53238ABRACKET, HOOD BUMPER MOUNTING

main53238-0D050iKSP130,NHP130,NLP130,NSP130201107

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0D110iKSP130,NLP130,NSP130201107

main53285-0D150iNHP130201204

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0D110iKSP130,NLP130,NSP130201107

main53286-0D140iNHP130201204

53291FPLATE, RADIATOR SUPPORT

main53291-0D010iKSP130,NHP130,NLP130,NSP130¥270201107

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D130iKSP130,NHP130,NLP130,NSP130¥21,300201107-201407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D120iKSP130,NHP130,NLP130,NSP130201107-201407

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D040iKSP130,NHP130,NLP130,NSP130201107

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D040iKSP130,NHP130,NLP130,NSP130¥1,350201107

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-52030iKSP130,NHP130,NLP130,NSP130¥670201107

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-52030iKSP130,NHP130,NLP130,NSP130¥750201107

53717PLATE, FENDER APRON, RH

main53717-0D040iKSP130,NHP130,NLP130,NSP130201107

53718PLATE, FENDER APRON, LH

main53718-0D040iKSP130,NHP130,NLP130,NSP130201107

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-0D010iKSP130,NHP130,NLP130,NSP130¥3,210201107

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-0D010iKSP130,NHP130,NLP130,NSP130¥2,750201107

55101PANEL SUB-ASSY, DASH

main55101-0D280iNHP130..RHD201204-201407

sub55101-0D281

main55101-0D290iKSP130,NLP130,NSP130..LHD..(5F,6F)201107-201407

main55101-0D390iNHP130,NLP130,NSP130..LHD..(6FS,CVFC)201107-201407

main55101-0D400iKSP130,NLP130,NSP130..RHD..MTM¥14,000201107-201407

sub55101-0D401¥16,800

main55101-0D410iNSP130..RHD..CVFC201107-201407

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D040iKSP130,NHP130,NLP130,NSP130¥1,760201107

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D040iKSP130,NHP130,NLP130,NSP130¥1,760201107

55210INSULATOR ASSY, DASH PANEL

main55210-0D300iKSP130,NSP130..RHD201107

main55210-0D310iKSP130,NSP130..LHD201107

main55210-0D320iNHP130,NLP130..RHD201107

main55210-0D330iNHP130,NLP130..LHD201107

55211ESILENCER, FRONT PANEL

main55211-0D150iKSP130,NHP130,NLP130,NSP130¥280201107

55213APAD, DASH PANEL SILENCER

main55213-0D110iKSP130,NHP130,NLP130,NSP130¥280201107

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-0D130iKSP130,NHP130,NLP130,NSP130..LHD201107

main55214-0D140iKSP130,NHP130,NLP130,NSP130..RHD¥900201107

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-0D040iKSP130,NHP130,NLP130,NSP130..RHD¥1,580201107

main55215-0D120iKSP130,NHP130,NLP130,NSP130..LHD201107

55216PAD, DASH PANEL INSULATOR, NO.4

main55216-0D050iKSP130,NHP130,NLP130,NSP130..RHD201107

main55216-0D060iKSP130,NHP130,NLP130,NSP130..LHD201107

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D161iKSP130,NSP130..RHD..STD201107

main55223-0D171iKSP130,NSP130..LHD..STD201107

sub55223-0D172

main55223-0D181iNHP130,NLP130..RHD;KSP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)201107

main55223-0D191iNHP130,NLP130..LHD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107

sub55223-0D192

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010¥340

90105W0106

main90105-W0106

9010906380

main90109-06380¥60

34 parts on this diagram · 4 diagrams in section
