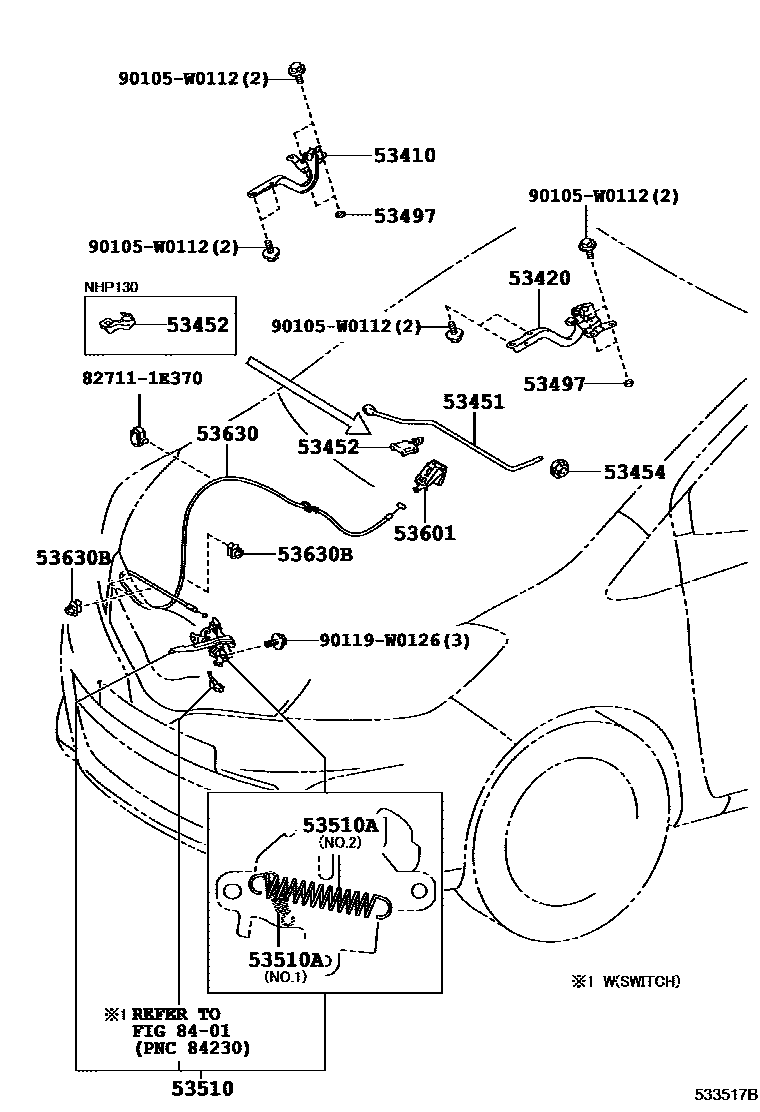

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D320iKSP130,NHP130,NLP130,NSP130201107-201407

53420HINGE ASSY, HOOD, LH

main53420-0D320iKSP130,NHP130,NLP130,NSP130201107

53451ROD, HOOD SUPPORT

main53440-0D100iKSP130,NHP130,NLP130,NSP130201107

53452HOLDER, HOOD STAY

main53452-0D010iKSP130,NLP130,NSP130201107

main53452-0D060iNHP130201204

53454CLIP, HOOD SUPPORT ROD

main53454-52020iKSP130,NHP130,NLP130,NSP130201107

53497PAD, HOOD HINGE, NO.1

main53497-05010iKSP130,NHP130,NLP130,NSP130201107

T=1.0

53510LOCK ASSY, HOOD

main53510-0D290iKSP130,NHP130,NLP130..RHD201107

WITHOUT(STOP & START SYSTEM)

main53510-0D300iKSP130,NHP130,NLP130..LHD201107

WITHOUT(STOP & START SYSTEM)

main53510-0D310iNSP130..RHD201107

main53510-0D320iNSP130..LHD201107

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-W0004iKSP130,NHP130,NLP130,NSP130..RHD201107

WD=1.0,CW=15.5,NO.1

main90506-W0005iKSP130,NHP130,NLP130,NSP130..LHD201107

WD=1.0,CW=24,NO.1

main90506-W0006iKSP130,NHP130,NLP130,NSP130201107

WD=1.6,CW=13,NO.2

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0iKSP130,NHP130,NLP130,NSP130201107-201407

BLACK,TRIM1#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52120iKSP130,NHP130,NLP130,NSP130201107

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNLP130..RHD201107

8401

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

90105W0112

main90105-W0112

90119W0126

main90119-W0126

15 parts on this diagram · 2 diagrams in section
