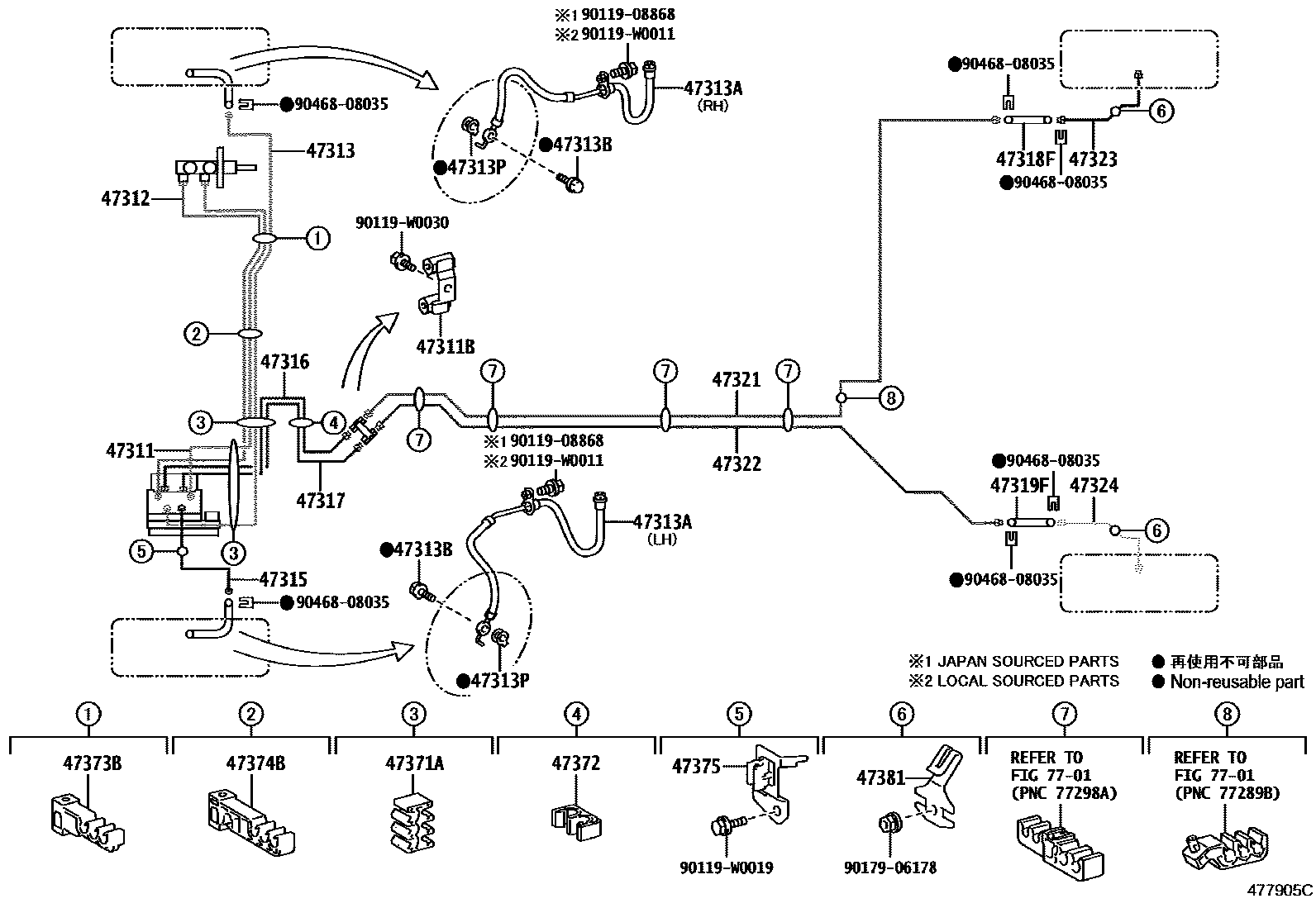

BRAKE TUBE & CLAMP

0001 1 0002 1W(REAR DISC BRAKE) 0003 1 0004 1W(REAR DISC BRAKE) 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-0D290iKSP130,NLP130,NSP130..LHD..MTM201107

main47311-0D310iNHP130..LHD201204

main47311-0D480iNSP130..LHD..CVFC201107

main47311-0D500iKSP130,NSP130..RHD201107

main47311-0D510iNHP130..RHD201204

main47311-0D520iNLP130..RHD201107

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iKSP130,NHP130,NLP130,NSP130201107

47312TUBE, FRONT BRAKE, NO.2

main47312-0D260iNLP130..RHD201107

main47312-0D400iKSP130,NLP130,NSP130..LHD..MTM201107

main47312-0D430iNSP130..LHD..CVFC201107

main47312-0D450iKSP130,NSP130..RHD201107

47313TUBE, FRONT BRAKE, NO.3

main47313-0D170iNHP130..LHD201204

main47313-0D360iNSP130..LHD..CVFC201107

main47313-0D370iKSP130,NSP130..LHD..MTM201107

main47313-0D400iKSP130,NSP130..RHD201107

main47313-0D410iNHP130..RHD201204

main47313-0D420iNLP130..LHD201107

main47313-0D440iNLP130..RHD201107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2029iKSP130,NLP130,NSP130201107-201203

RH

main90947-W2030iKSP130,NLP130,NSP130201107-201203

LH

main90947-W2034iKSP130,NHP130,NLP130,NSP130201203

RH

sub90947-W2050

main90947-W2035iKSP130,NHP130,NLP130,NSP130201203

LH

sub90947-W2051

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKSP130,NHP130,NLP130,NSP130201107

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKSP130,NHP130,NLP130,NSP130201107

47315TUBE, FRONT BRAKE, NO.5

main47315-0D230iNHP130..LHD201204

main47315-0D370iKSP130,NLP130,NSP130..LHD..MTM201107

main47315-0D400iNSP130..LHD..CVFC201107

main47315-0D420iKSP130,NLP130,NSP130..RHD201107

main47315-0D430iNHP130..RHD201204

47316TUBE, FRONT BRAKE, NO.6

main47316-0D180iNHP130..LHD201204

main47316-0D280iKSP130,NLP130,NSP130..LHD..MTM201107

main47316-0D310iNSP130..LHD..CVFC201107

main47316-0D330iKSP130,NLP130,NSP130..RHD201107

main47316-0D340iNHP130..RHD201204

47317TUBE, FRONT BRAKE, NO.7

main47317-0D180iNHP130..LHD201204

main47317-0D280iKSP130,NLP130,NSP130..LHD..MTM201107

main47317-0D310iNSP130..LHD..CVFC201107

main47317-0D330iKSP130,NLP130,NSP130..RHD201107

main47317-0D340iNHP130..RHD201204

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2031iKSP130,NLP130,NSP130201107-201203

main90947-W2036iKSP130,NHP130,NLP130,NSP130201203

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2032iKSP130,NLP130,NSP130201107-201203

main90947-W2037iKSP130,NHP130,NLP130,NSP130201203

47321TUBE, REAR BRAKE, NO.1

main47321-0D300iKSP130,NLP130,NSP130201107-201407

main47321-0D310iNHP130201204-201407

47322TUBE, REAR BRAKE, NO.2

main47322-0D300iKSP130,NLP130,NSP130201107-201407

main47322-0D310iNHP130201204-201407

47323TUBE, REAR BRAKE, NO.3

main47323-0D190iKSP130,NLP130,NSP130201107

main47323-0D200iNHP130201204

47324TUBE, REAR BRAKE, NO.4

main47324-0D190iKSP130,NLP130,NSP130201107

main47324-0D200iNHP130201204

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iKSP130,NLP130,NSP130..LHD201107

main90464-00898iKSP130,NLP130,NSP130..RHD201107

main90464-00904iNHP130..LHD201204

main90949-01D64iNHP130..RHD201204

47372CLAMP, BRAKE TUBE, NO.2

main90461-10851iNHP130..LHD201204

main90464-00876iNHP130..RHD201204

main90464-W0001iKSP130,NLP130,NSP130..LHD201107

main90949-01972iKSP130,NLP130,NSP130..RHD201107

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D08iNHP130..RHD201204

main90949-01D84iKSP130,NLP130,NSP130..RHD201107

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00857iNHP130..RHD201204

main90949-01D85iKSP130,NLP130,NSP130..RHD201107

47375CLAMP, BRAKE TUBE, NO.5

main47371-0D020iKSP130,NLP130,NSP130..RHD201107-201407

sub47371-0D021

main90461-10851iNHP130..RHD201204-201407

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020iKSP130,NLP130,NSP130201107

main47381-52030iNHP130201204

7701

9011908868

main90119-08868

90119W0011

main90119-W0011

90119W0019

main90119-W0019

90119W0030

main90119-W0030

9017906178

main90179-06178

9046808035

main90468-08035

29 parts on this diagram · 9 diagrams in section
