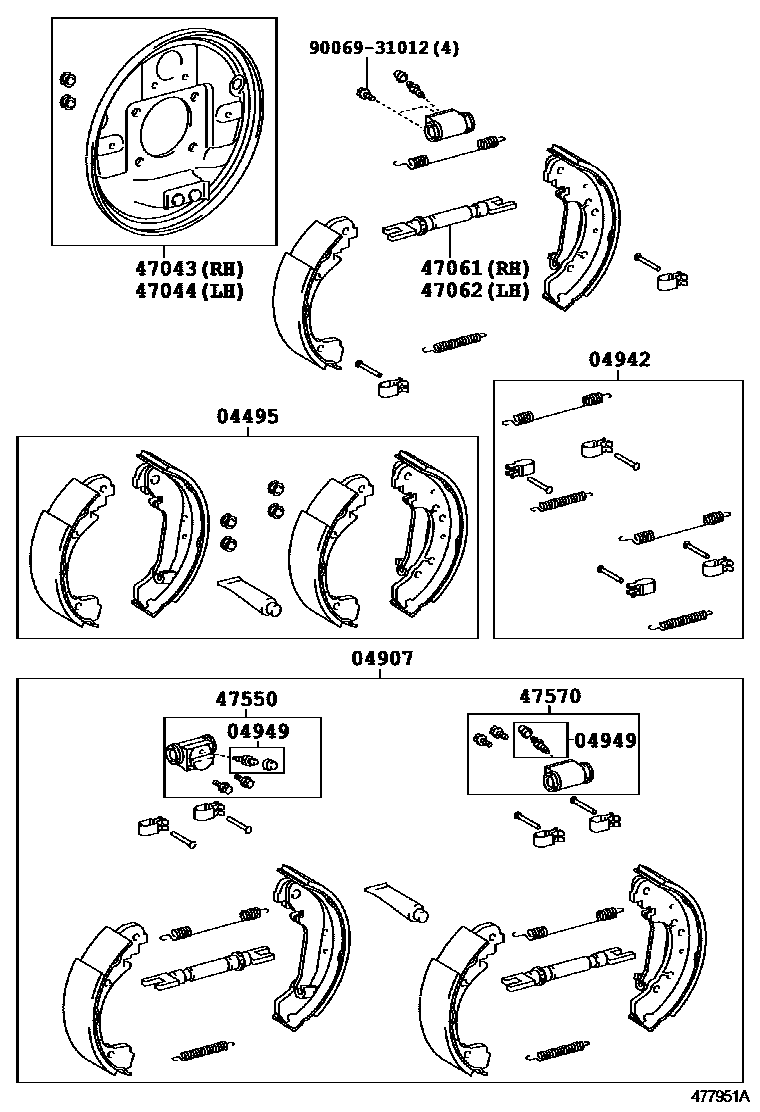

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0D090iKSP130,NLP130,NSP130201107

04907FITTING KIT, REAR DRUM BRAKE

main04907-0D030iKSP130,NLP130,NSP130201107

04942SPRING KIT, REAR BRAKE

main04942-0D050iKSP130,NLP130,NSP130201107

04949PLUG KIT, REAR BRAKE

main04949-09010iKSP130,NLP130,NSP130201107

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-09020iKSP130,NLP130,NSP130201107

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-09020iKSP130,NLP130,NSP130201107

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-0D040iKSP130,NLP130,NSP130201107

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-0D040iKSP130,NLP130,NSP130201107

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09130iKSP130,NLP130,NSP130201107

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09130iKSP130,NLP130,NSP130201107

9006931012

main90069-31012

11 parts on this diagram · 1 diagram in section
