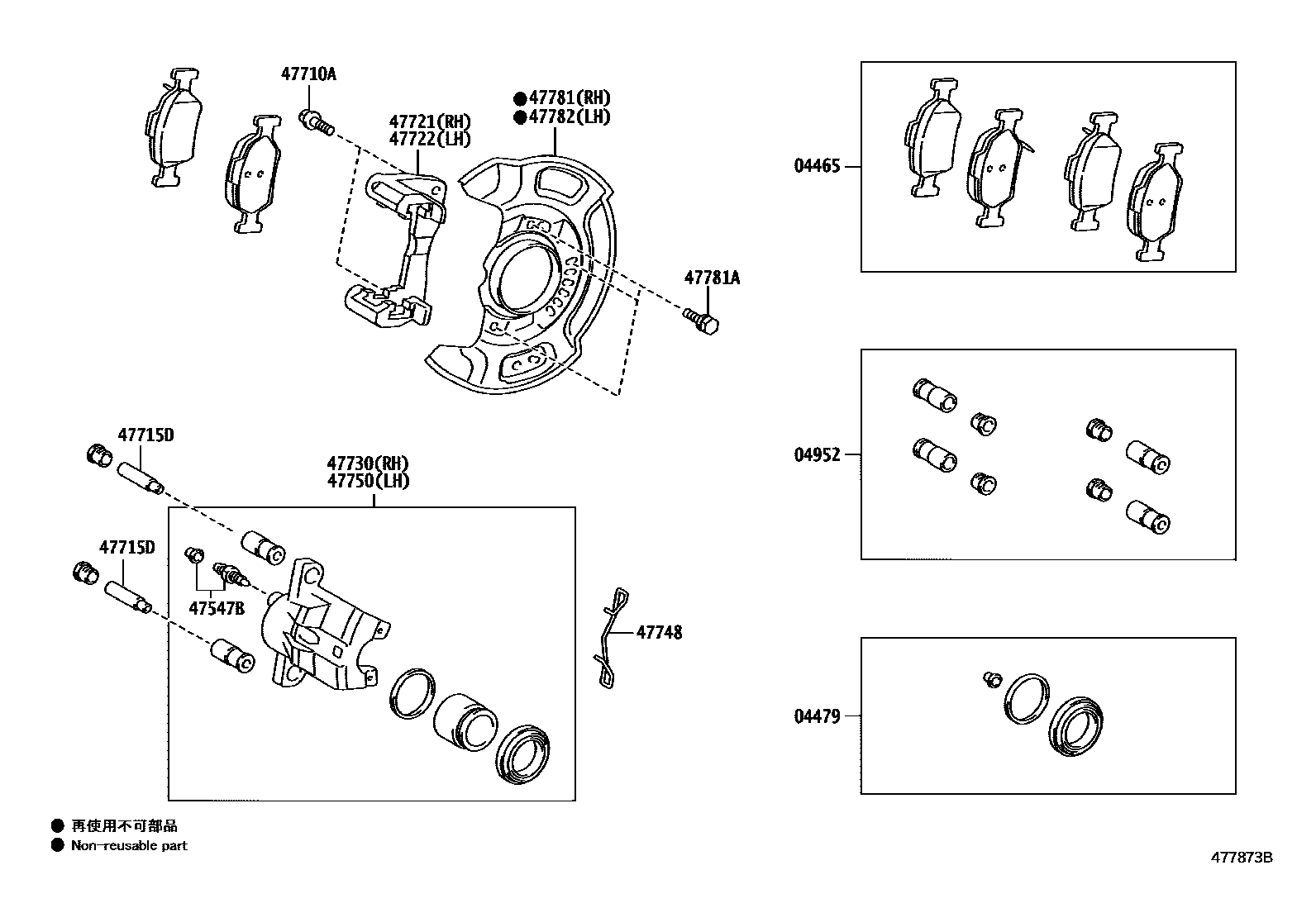

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iNHP130¥10,100201204-201302

MARK ADVICS PV565H

main04465-0D050iKSP130,NLP130,NSP130¥10,900201107

MARK PAGID 766

main04465-0D120iNHP130201302

MARK GALFER 5019

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D050iKSP130,NLP130,NSP130201107

main04478-12060iNHP130¥1,800201204-201302

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04951-05010iNHP130¥2,050201107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09050iKSP130,NLP130,NSP130¥380201107

main47547-20010iNHP130¥200201204-201302

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121iKSP130,NHP130,NLP130,NSP130¥160201107-201407

*12-1.25PX29.5-23

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-05010iKSP130,NLP130,NSP130¥460201107

main47715-12A10iNHP130¥360201204-201302

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D070iKSP130,NLP130,NSP130201107

main47721-0D200iNHP130201302

main47721-12A10iNHP130¥5,200201204-201302

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0D070iKSP130,NLP130,NSP130201107

main47721-0D200iNHP130201302

main47722-12A10iNHP130¥5,200201204-201302

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D070iKSP130,NLP130,NSP130201107

main47730-0D200iNHP130201302

main47730-52290iNHP130201204-201302

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0D070iKSP130,NLP130,NSP130201107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D070iKSP130,NLP130,NSP130201107

main47750-0D200iNHP130201302

main47750-52340iNHP130201204-201302

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D050iKSP130,NLP130,NSP130201107-201202

main47781-0D170iKSP130,NHP130,NLP130,NSP130¥1,400201203-201407

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iKSP130,NHP130,NLP130,NSP130¥100201107-201407

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D050iKSP130,NLP130,NSP130201107-201202

main47782-0D100iKSP130,NHP130,NLP130,NSP130¥1,400201203-201407

14 parts on this diagram · 2 diagrams in section
