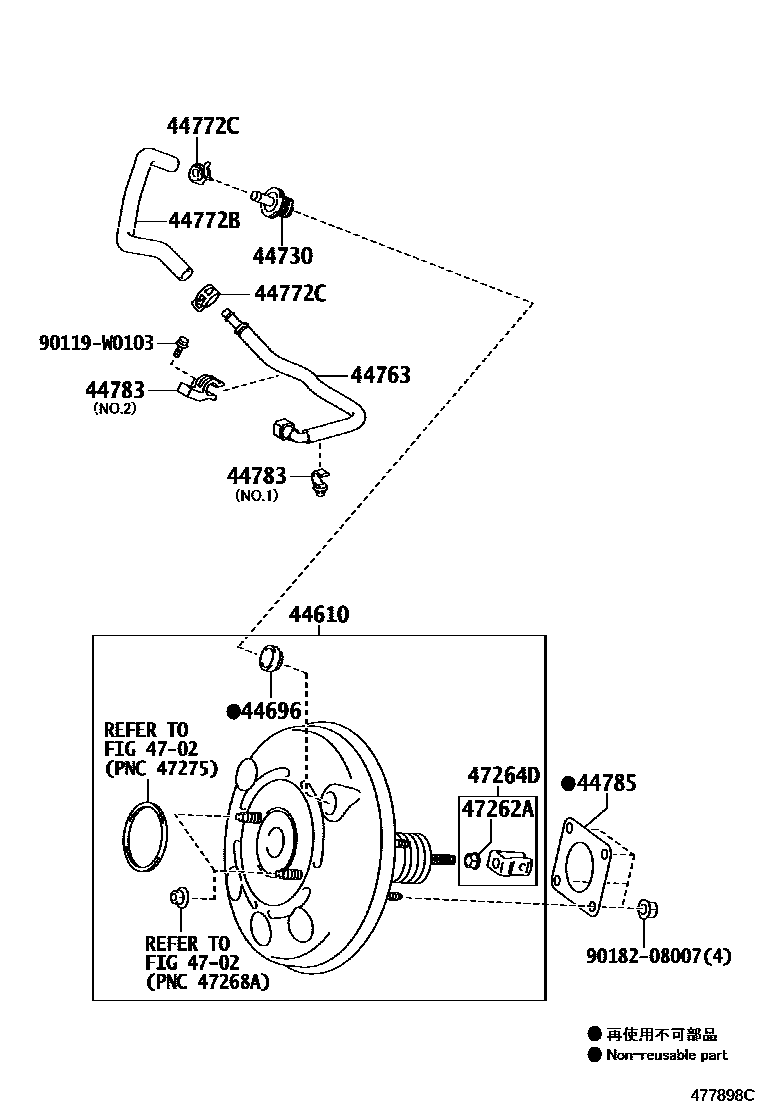

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-09850iKSP130,NLP130..LHD201107

WITHOUT(STOP & START SYSTEM)

main44610-09850iKSP130,NLP130..LHD201107

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISK(BUILT-IN)

main44610-09860iNSP130..LHD201107

sub44610-09861

main44610-09870iKSP130,NLP130..RHD201107

WITHOUT(STOP & START SYSTEM)

main44610-09870iKSP130,NLP130..RHD201107

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISK(BUILT-IN)

main44610-09880iNSP130..RHD201107

44696GROMMET, CHECK VALVE

main44692-0D020iKSP130,NLP130201107

WITHOUT(STOP & START SYSTEM)

main44692-0D020iKSP130,NLP130201107

WITHOUT(STOP & START SYSTEM)&REAR WHEEL BRAKE-DISK(BUILT-IN)

main44692-0D020iKSP130,NLP130201107

WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0D010iKSP130,NLP130,NSP130201107

44763TUBE, BOOSTER VACUUM

main44763-0D060iKSP130..RHD201107

main44763-0D090iKSP130..LHD201107

main44763-52140iNLP130..LHD¥1,460201107

main44763-52150iNLP130..RHD201107

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52190iKSP130..LHD201107

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-0D010iKSP130..RHD201107

44772CCLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)

main90466-W0008iKSP130..RHD¥120201107

44783CLAMP, VACUUM HOSE

main44783-52070iKSP130..LHD¥230201107

NO.1

main44783-70010iKSP130..RHD201107

NO.1

main44783-70010iKSP130..RHD201107

NO.2

main44783-70020iKSP130..RHD201107

NO.2

44785GASKET, BRAKE BOOSTER

main44785-16020iKSP130,NLP130,NSP130¥220201107

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-05010iKSP130,NLP130,NSP130201107

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47262-09010iKSP130,NLP130,NSP130..RHD201107-201407

main47264-09010iKSP130,NLP130,NSP130..LHD201107-201407

90119W0103

main90119-W0103

9018208007

main90182-08007¥100

14 parts on this diagram · 6 diagrams in section
