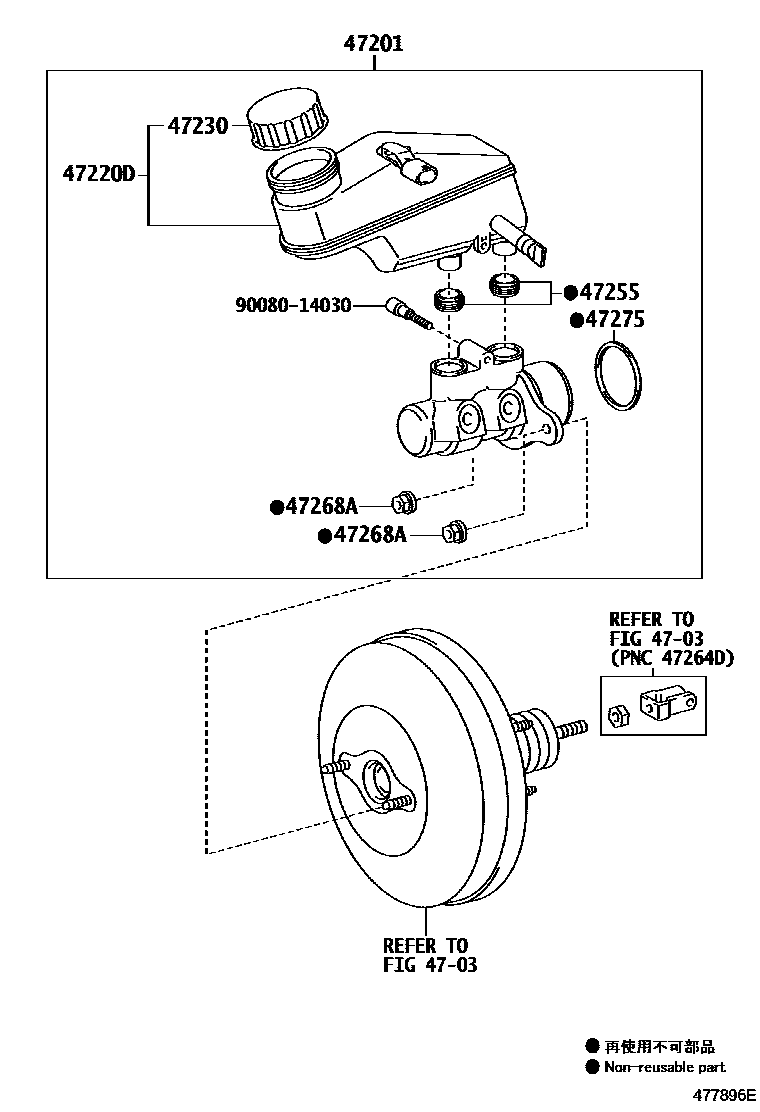

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09650iKSP130,NLP130,NSP130..LHD201107

main47201-09660iKSP130,NLP130,NSP130..RHD201107

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D080iKSP130,NLP130,NSP130..LHD201107-201407

main47220-0D170iKSP130,NLP130,NSP130..RHD201107-201407

main47220-0D180iNHP130..LHD201204-201407

sub47220-0D181

main47220-52310iNHP130..RHD201204-201407

sub47220-52311

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D060iKSP130,NLP130,NSP130201107

main47230-0D180iNHP130..LHD201204

main47230-58010iNHP130..RHD201204

sub47230-11010

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09030iKSP130,NLP130,NSP130201107

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iKSP130,NLP130,NSP130201107-201407

47275GASKET, BRAKE MASTER CYLINDER

main47275-0D020iKSP130,NLP130,NSP130201107-201407

9008014030

main90080-14030

8 parts on this diagram · 4 diagrams in section
